SGM2572.pdf? Integrated N-MOSFET Load Switch
? 1V to 5.5V Input Voltage Range
? Ultra-Low On-Resistance
RON = 34mΩ at VIN = 5V
RON = 34mΩ at VIN = 3.3V
? 2A Maximum Continuous Switch Current
? Low Shutdown Current: 90nA (TYP)
? Reverse Current Protection
? Low Threshold 1.2V GPIO Control Input
? Bidirectional Power Supply for Power Zone Application
? Rise Time: 60μs (TYP)
? Quick Output Discharge

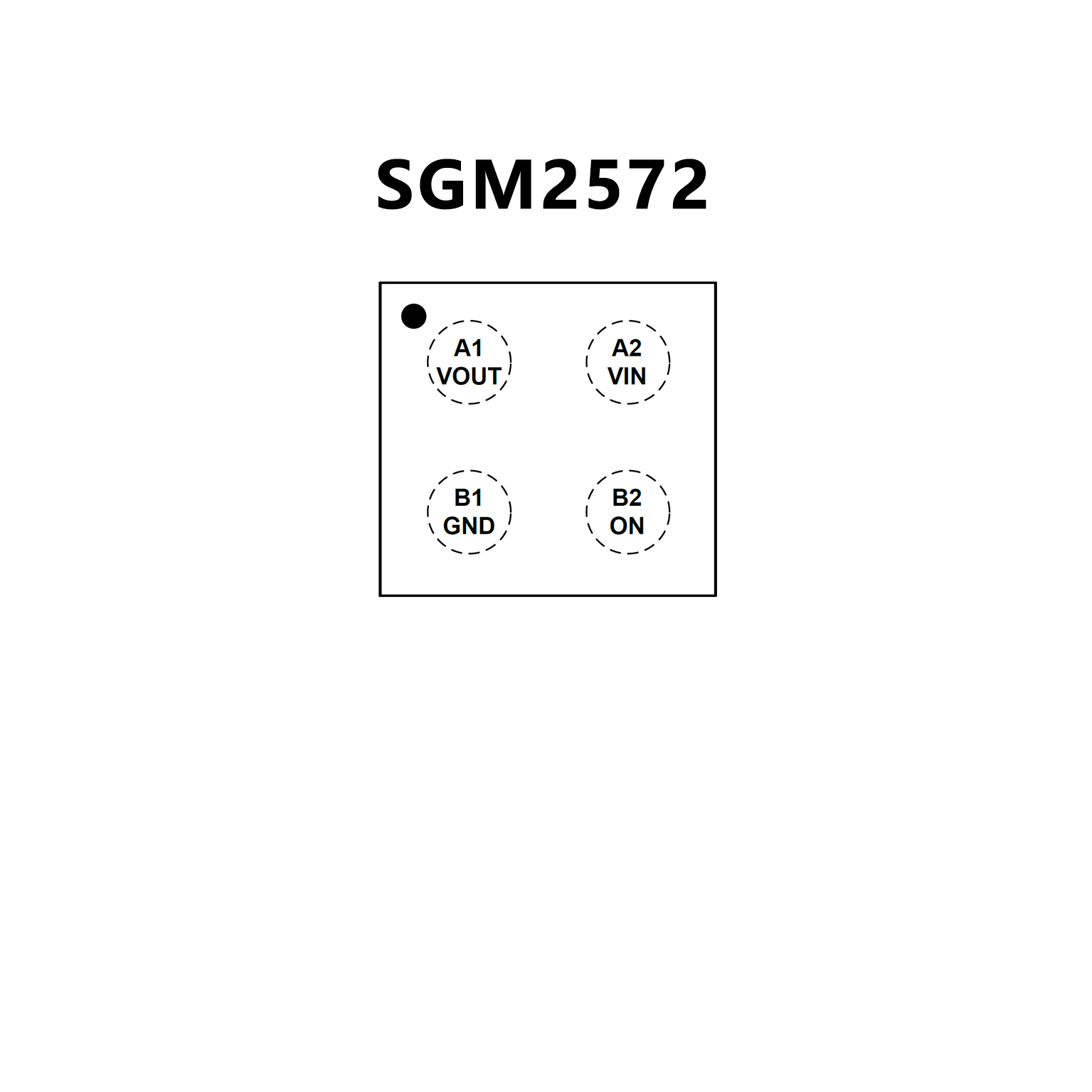

? Available in a Green WLCSP-0.8×0.8-4B Package
? Input Voltage Range: 0.65 V to 3.6 V
RON = 9.2 mΩ at VIN = 3.6 V
RON = 9.2 mΩ at VIN = 1.8 V
RON = 10.2 mΩ at VIN = 1 V
RON = 13.1 mΩ at VIN = 0.65 V
? 3-A Maximum Continuous Switch Current
? Quiescent Current, IQ,VIN = 29 μA at VIN = 3.6 V
? Low Control Input Threshold
Enables 1.5-, 1.8-, 2.5-, or 3.3-V Logic
? Controlled Slew Rate
tR = 97 μs at VIN = 3.6 V (TPS22925Bx)
tR = 810 μs at VIN = 3.6 V (TPS22925Cx)
? Reverse Current Blocking (When Disabled)
? Quick Output Discharge (QOD)
(TPS22925B and TPS22925C only)

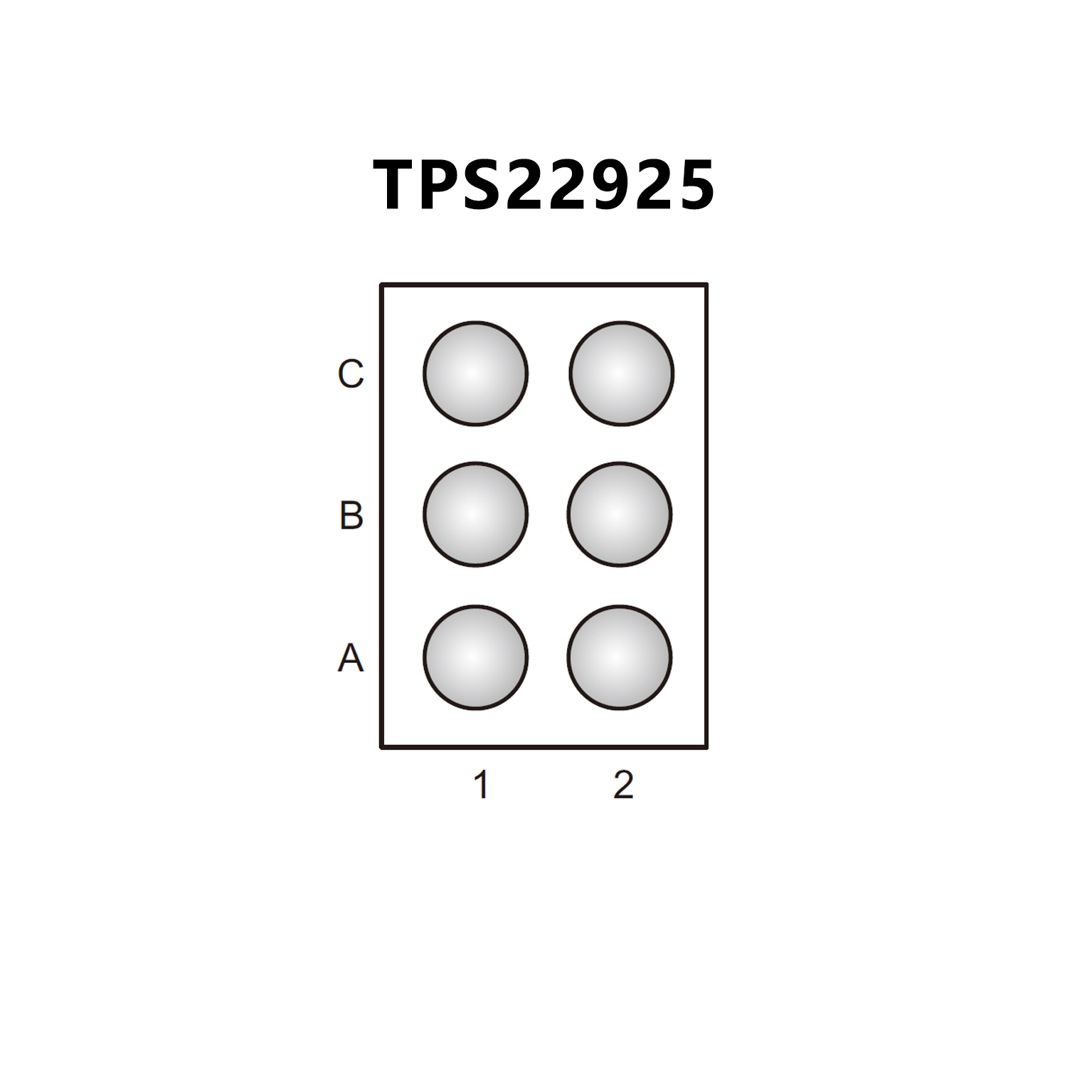

? Wafer Chip Scale Package:
0.9 mm x 1.4 mm, 0.5-mm Pitch, 0.4-mm Height
? ESD Performance Tested per JESD 22
2-kV HBM and 1-kV CDM
