SGM2575ADYG.pdf? Input Voltage Range: 1V to 5.5V
? Maximum Continuous Current: 2A
? Low On-Resistance
RON = 34mΩ at VIN = 5V
RON = 34mΩ at VIN = 3.3V
? Low Shutdown Current: 90nA (TYP)
? Reverse Current Protection When Disabled
? Low Threshold 1.8V GPIO Control Input
? Bidirectional Power Supply for Power Zone Application
? Rise Time:
SGM2575A/SGM2575AD: 60μs (TYP)
SGM2575BD: 1600μs (TYP)
? Quick Output Discharge
(SGM2575AD/SGM2575BD Only)

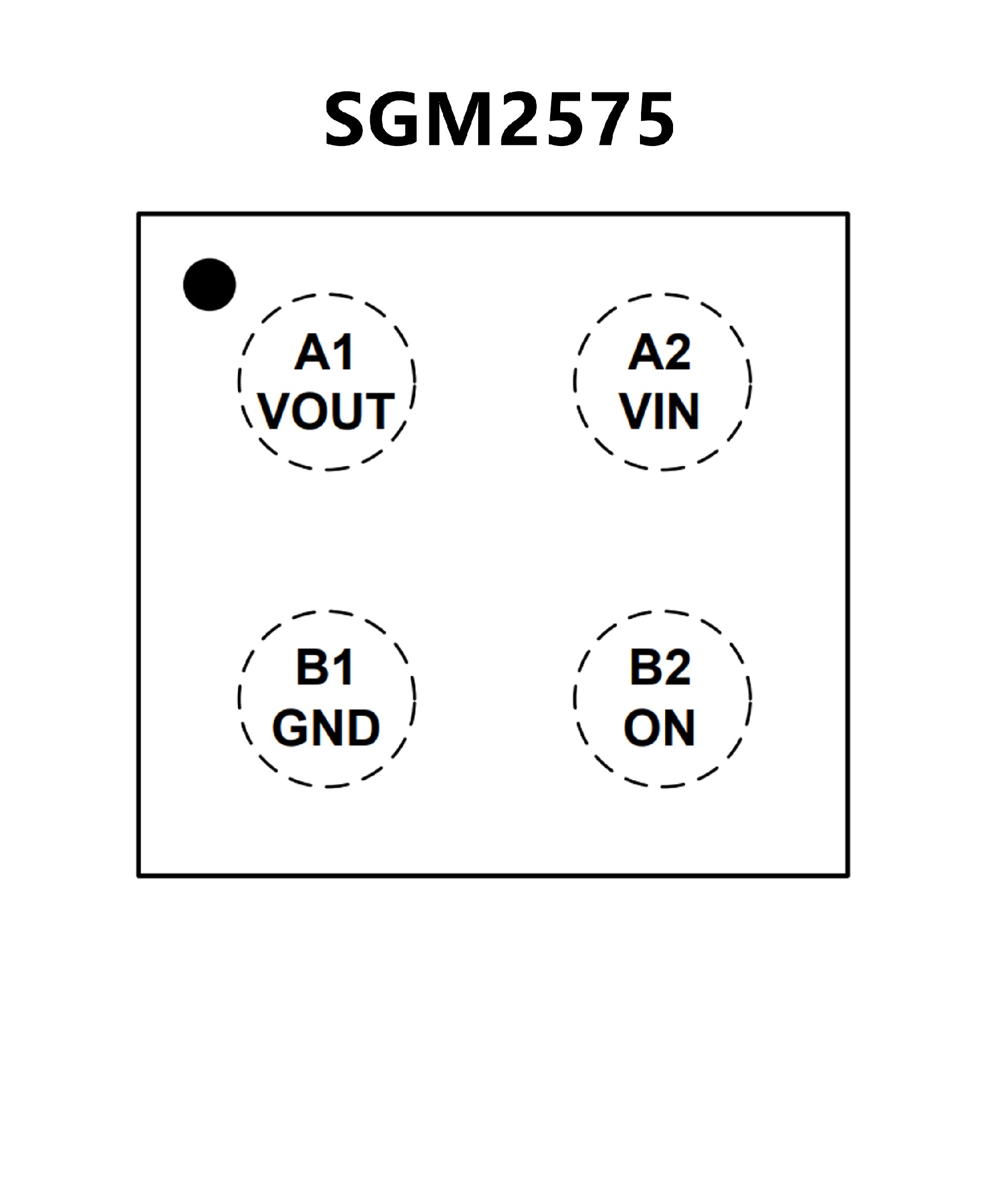

? Available in a Green WLCSP-0.8×0.8-4B Package
? Integrated Single Channel Load Switch
? Input Voltage Range: 1.05 V to 5.5 V
? Low On-Resistance (RON)
RON = 37 mΩ (Typical) at VIN = 5 V
RON = 38 mΩ (Typical) at VIN = 3.3 V
RON = 43 mΩ (Typical) at VIN = 1.8 V
? 2-A Maximum Continuous Switch Current
? Low Quiescent Current
7.7 μA (Typical) at VIN = 3.3 V
? Low Control Input Threshold Enables Use of 1 V or
Higher GPIO
? Controlled Slew Rate
tR(TPS22914B/15B) = 64 μs at VIN = 3.3 V
tR(TPS22914C/15C) = 913 μs at VIN = 3.3 V
? Quick Output Discharge (TPS22915 only)

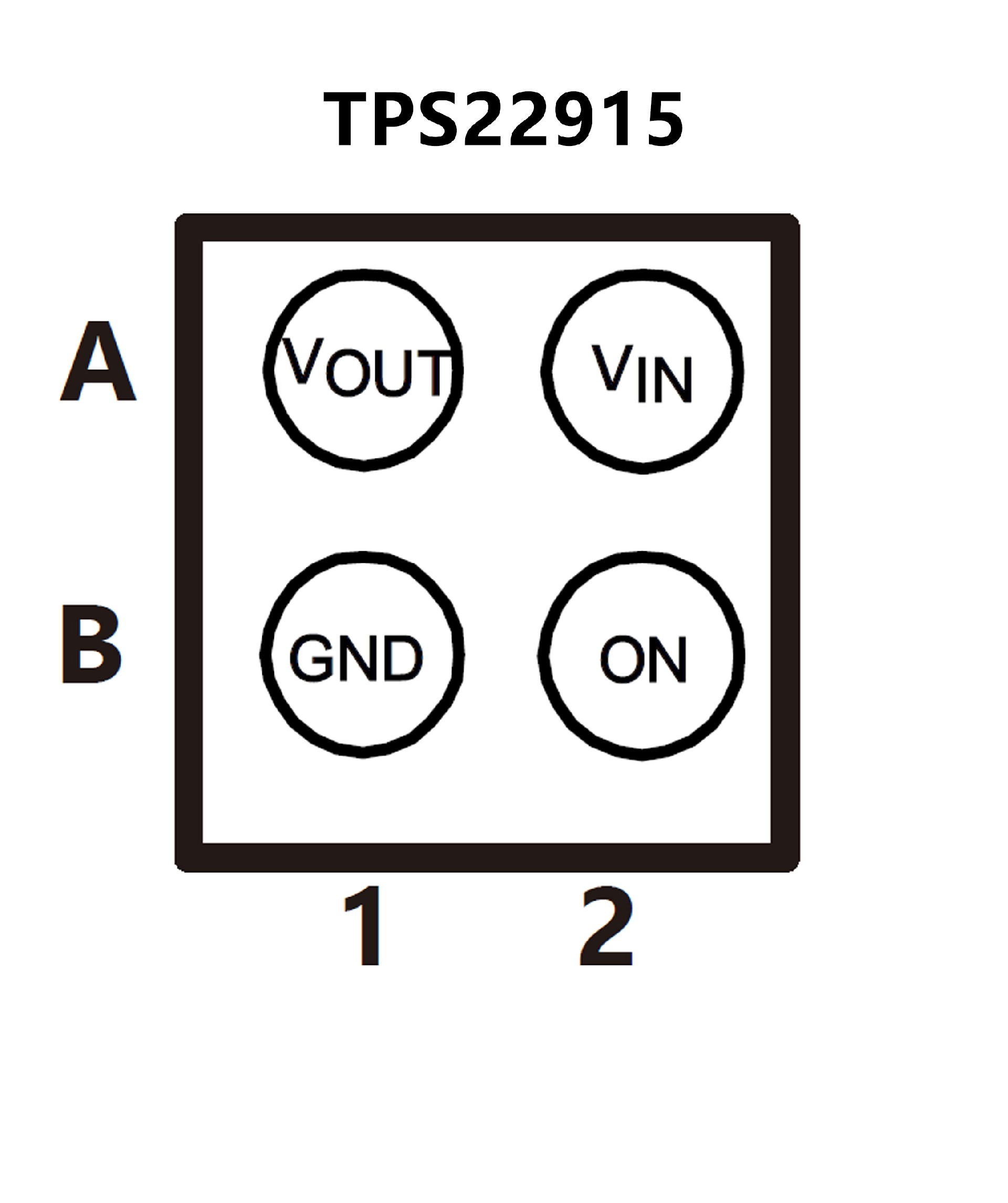

? Ultra-Small Wafer-Chip-Scale Package
0.78 mm × 0.78 mm, 0.4-mm Pitch,
0.5-mm Height (YFP)
? ESD Performance Tested per JESD 22
2-kV HBM and 1-kV CDM
