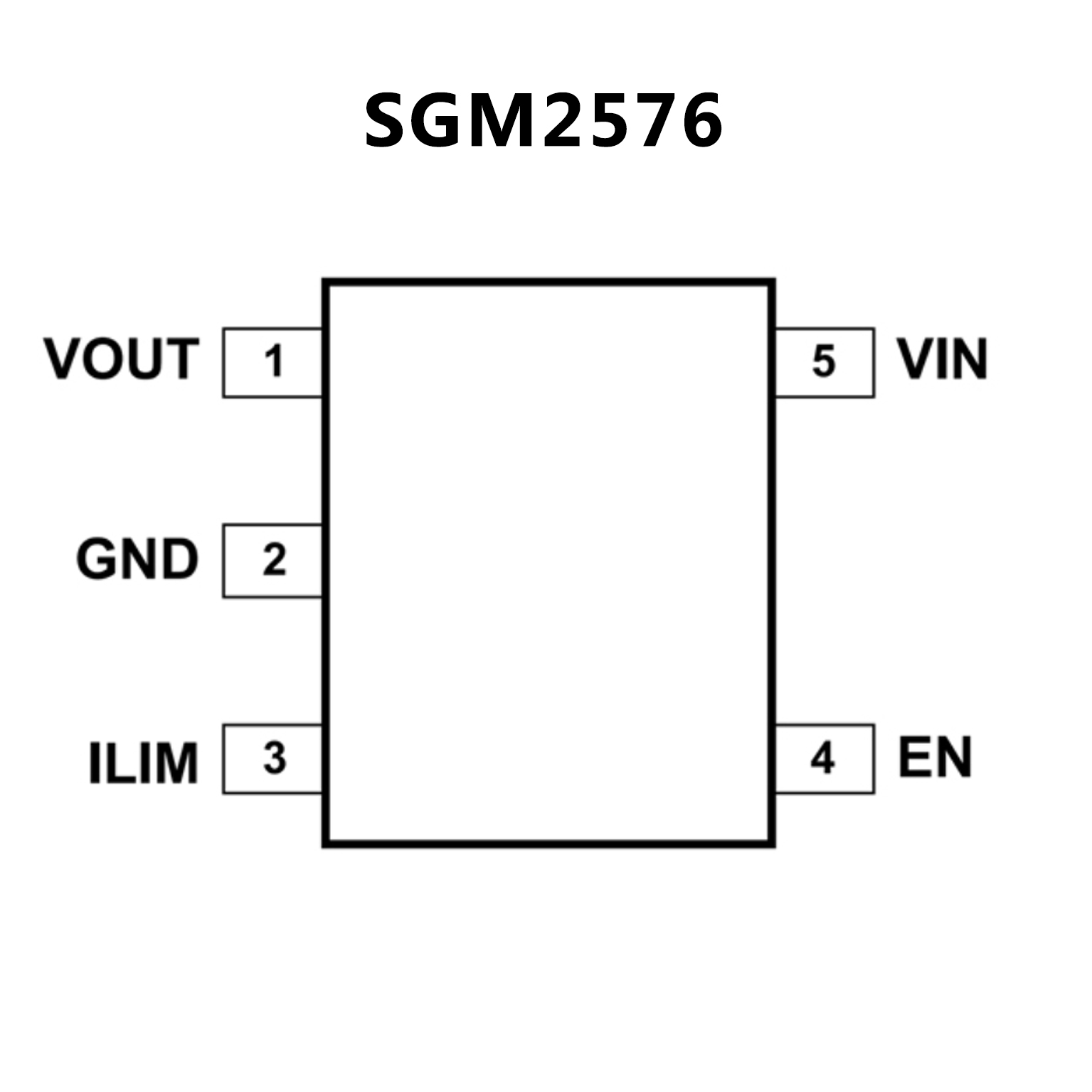

SGM2576.pdf? 100mΩ (TYP) High-side N-Channel MOSFET
? Programmable Current Limit Range: 0.4A to 2.5A
1500mA ± 190mA@RILIM = 4.53kΩ
? Input Voltage Range: 2.5V to 5.5V
? Low 23μA Quiescent Current
? Typical 0.1μA Shutdown Current
? Soft-Start Function
? Temperature Shutdown Protection
? Under-Voltage Lockout Protection for VIN
? No Reversed Leakage Current (Reverse Blocking)
? Automatic Output Discharge in Shutdown Mode
(SGM2576 Only)
? 500kΩ Pull-Down Resistor at EN Pin
? Evaluated to IEC 60950-1, Ed 2, Am1, Annex CC,
Test Program 1 with CB Report
? Available in the Green SOT-23-5 Package

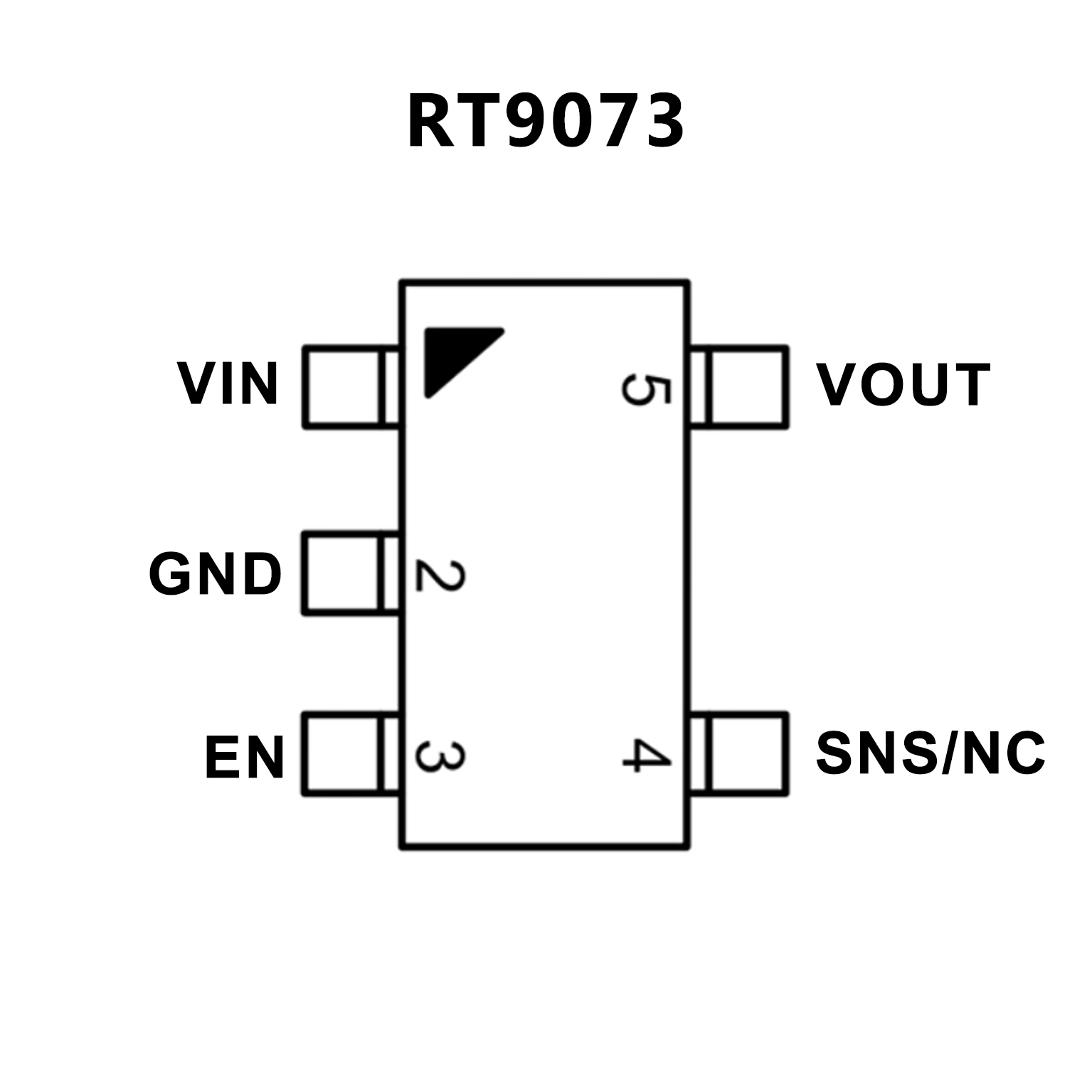

? 1μA Ground Current at no Load
? PSRR = 75dB at 1kHz
? Adjustable Output Voltage Available by Specific
Application
? ±2% Output Accuracy
? 250mA (VIN ≥ 2.3V) Output Current with EN
? Low (0.1μA) Disable Current
? 1.2V to 5.5V Operating Input Voltage
? Dropout Voltage : 0.45V (typ.) at 250mA when
VOUT ≥ 3V
? Support Fixed Output Voltage 0.9V, 1.05V, 1.2V,
1.5V,1.8V, 1.9V, 2.5V, 2.7V, 2.8V, 2.9V, 3V, 3.3V
? Stable with Ceramic or Tantalum Capacitor
? Current Limit Protection
? Over Temperature Protection
? SOT-23-5 and SC-70-5 Packages Available
