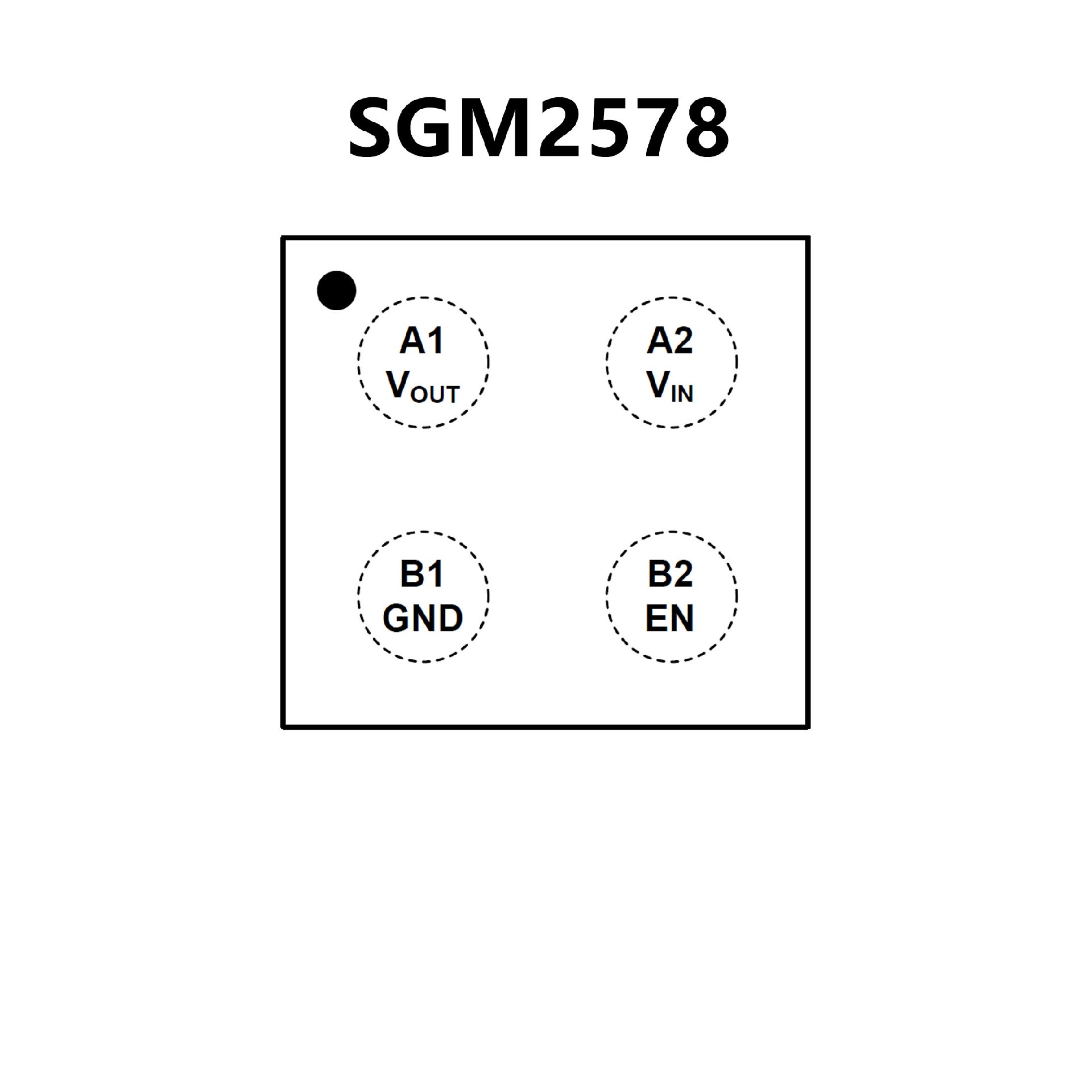

SGM2578.pdf? Input Voltage: 1V to 5V
? Ultra-Low On-State Resistance (RON)
RON = 54mΩ at VIN = 5.0V
RON = 54mΩ at VIN = 3.6V
RON = 58mΩ at VIN = 2.5V
RON = 74mΩ at VIN = 1.8V
RON = 84mΩ at VIN = 1.2V
RON = 84mΩ at VIN = 1.0V
? 1A Maximum Continuous Switch Current
? Quiescent Current: 5μA (TYP)
? Shutdown Current: < 1.5μA
? Low Control Input Thresholds Enable Use of
Low-Voltage Logic
? Controlled Slew Rate to Avoid Inrush Currents
? Quick Output Discharge (QOD)

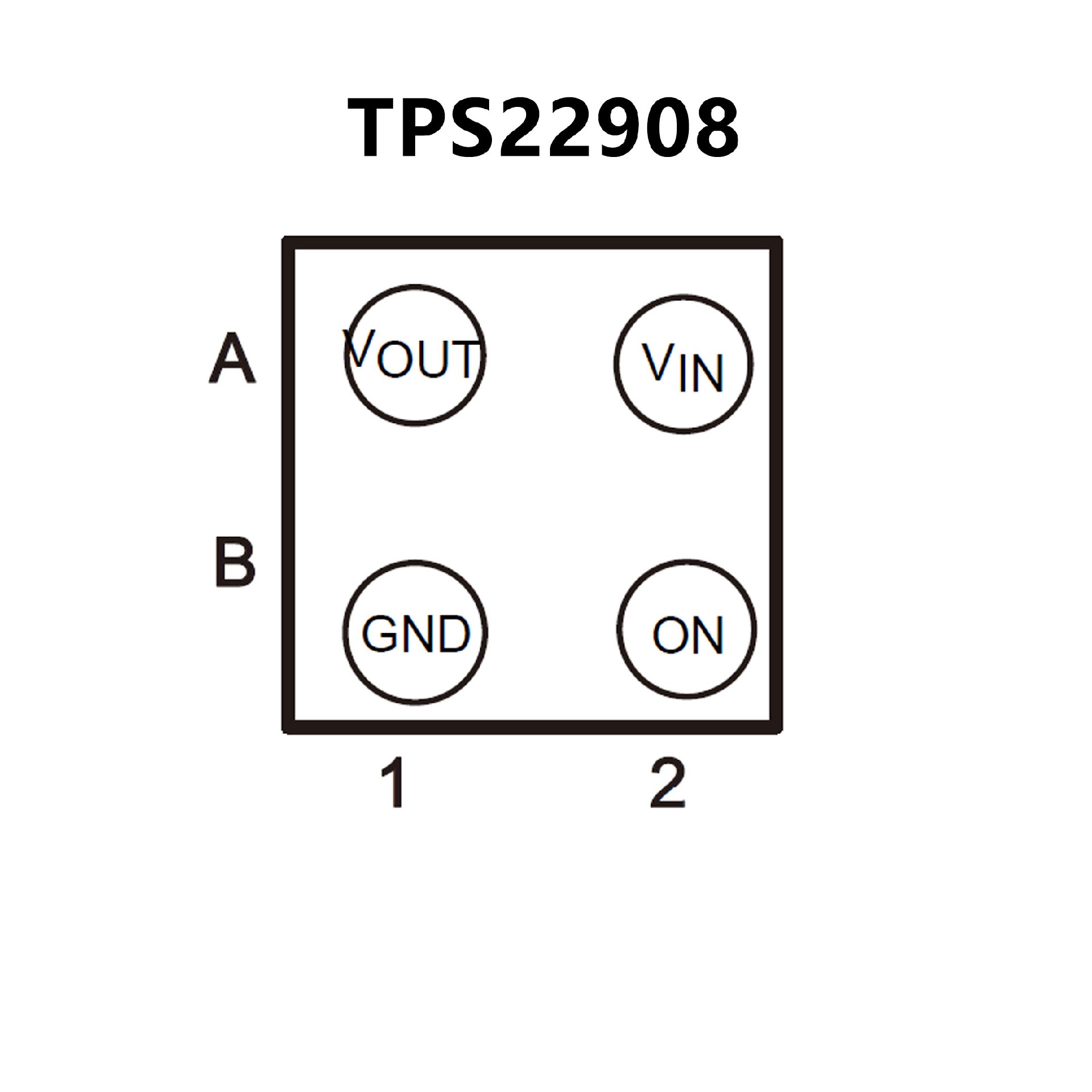

? Low Input Voltage: 1.0 V to 3.6 V
? Ultra-Low ON-State Resistance (RON)
RON = 28 mΩ at VIN = 3.6 V
RON = 33 mΩ at VIN = 2.5 V
RON = 42 mΩ at VIN = 1.8 V
RON = 70 mΩ at VIN = 1.2 V
? 1-A Maximum Continuous Switch Current
? Quiescent Current <1 μA
? Shutdown Current <1 μA
? Low Control Input Thresholds Enable Use of
Low-Voltage Logic
? Controlled Slew Rate to Avoid Inrush Currents
? Ultra Small CSP-4 Package 0.9 mm × 0.9 mm,
0.5-mm Pitch, 0.5-mm Height
? Quick Output Discharge (QOD)
