Ultra Small, Low Input Voltage, Low RON Load Switch,SGM2578AADYGTR Replace FPF1504UCX.
SGM2578AAD
SGM2578AAD.pdf
SGM2578AAD.pdfFEATURES
? Input Voltage Range: 1V to 5.5V
? Maximum Continuous Current: 2A
? Low On-Resistance
RON = 29mΩ at VIN = 4.35V
RON = 30mΩ at VIN = 3.3V
RON = 36mΩ at VIN = 1.0V
? Low Shutdown Current: 90nA (TYP)
? Reverse Current Protection When Disabled
? Low Threshold 1.8V GPIO Control Input
? Bidirectional Power Supply for Power Zone
Application
? Rise Time:
SGM2578AAD: 200μs (TYP)
SGM2578ABD: 5000μs (TYP)
? Quick Output Discharge
? Available in a Green WLCSP-0.9×0.9-4B-A Package

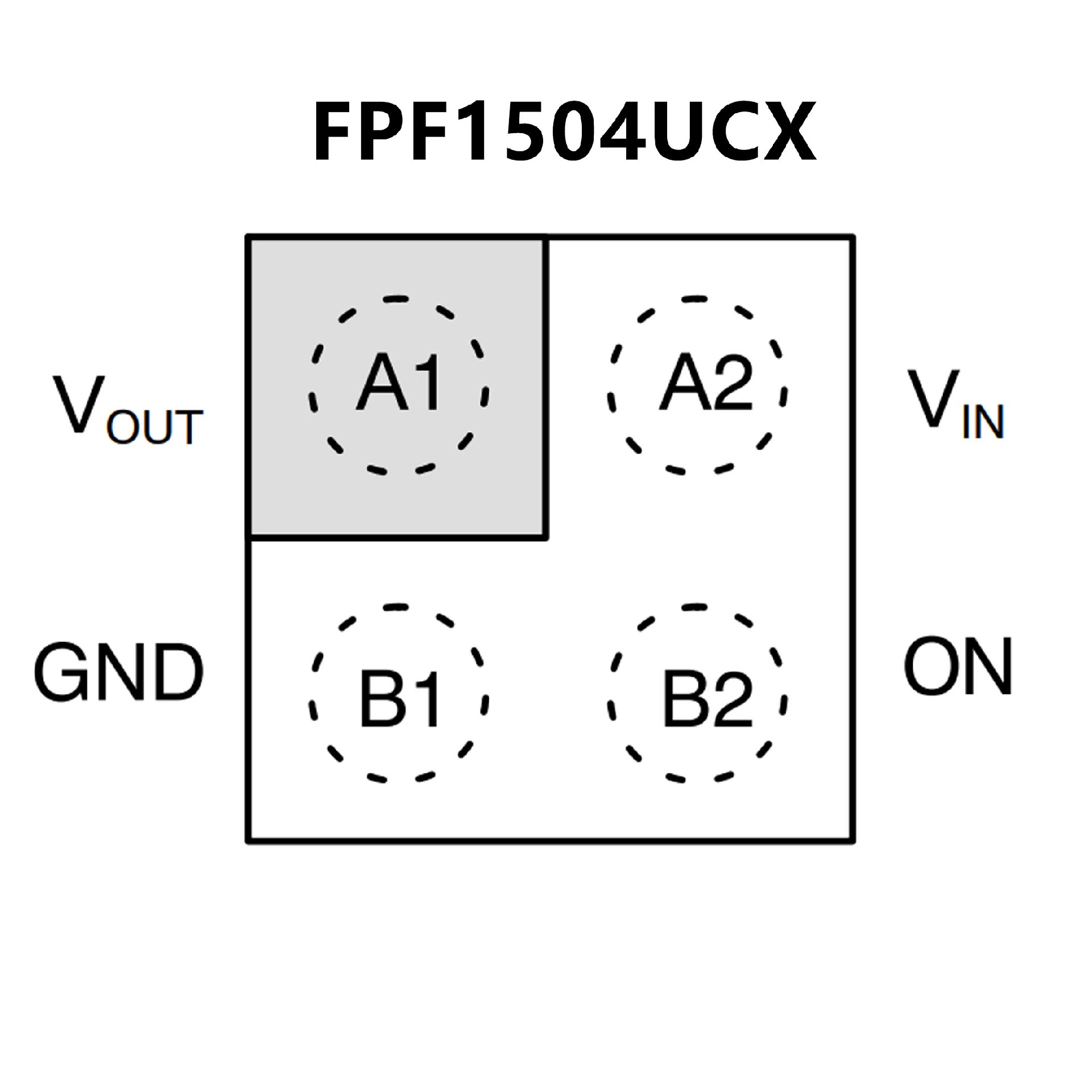

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? 1.0至3.6 V的輸入電壓工作范圍
? 典型RDS(ON):
? 15 mΩ(VIN = 3.3 V時)
? 20 mΩ(VIN = 1.8 V時)
? VIN = 1.0 V時為40 mΩ
? 轉(zhuǎn)換速率控制
? 輸入放電功能
? 小于1 μA的低靜態(tài)電流(VON = VIN)
? 靜電放電保護(hù): 4000 V HBM, 2000 V CDM
? 兼容GPIO/CMOS,的使能電路
? 高電平有效版本和低電平有效版本

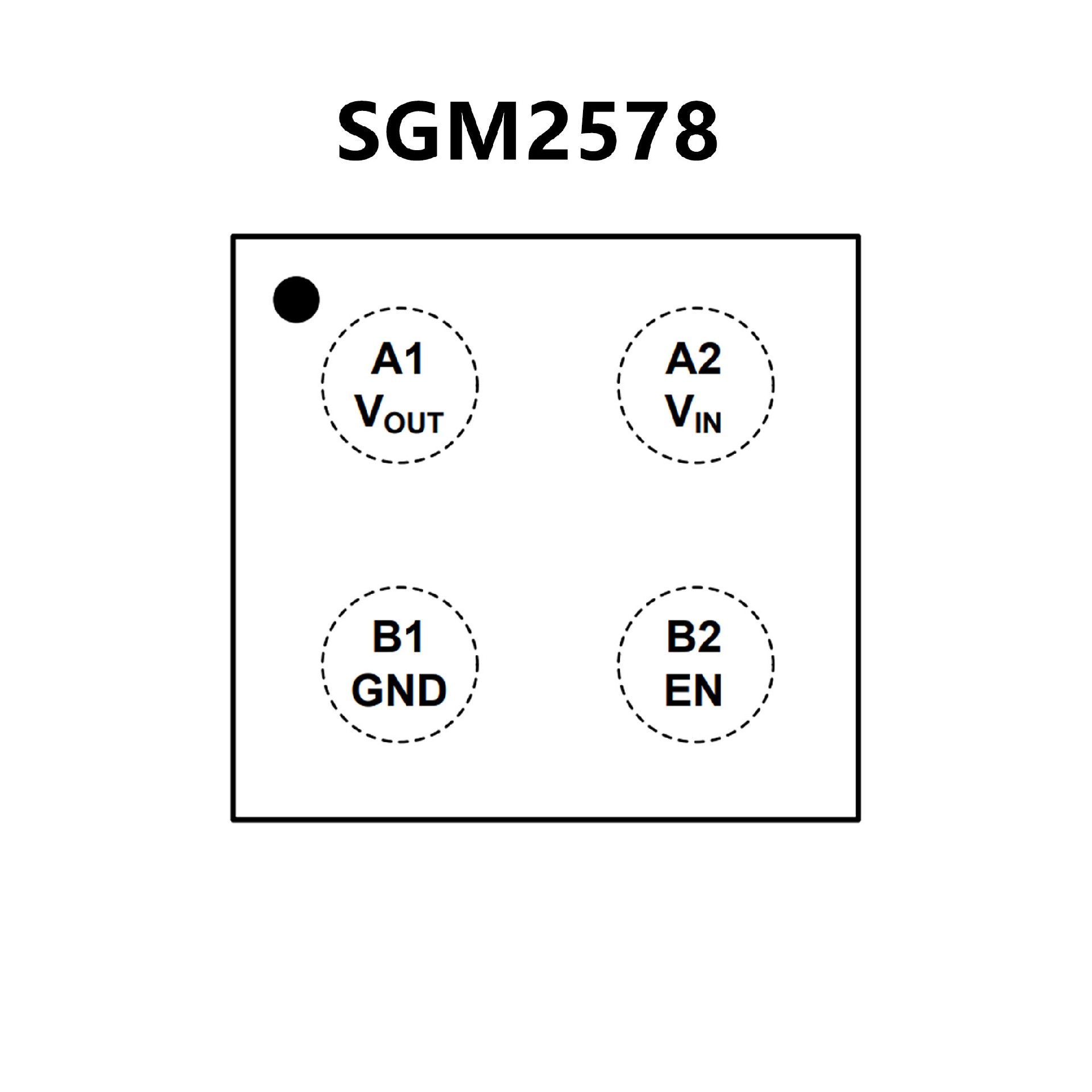

PIN CONFIGUTION
