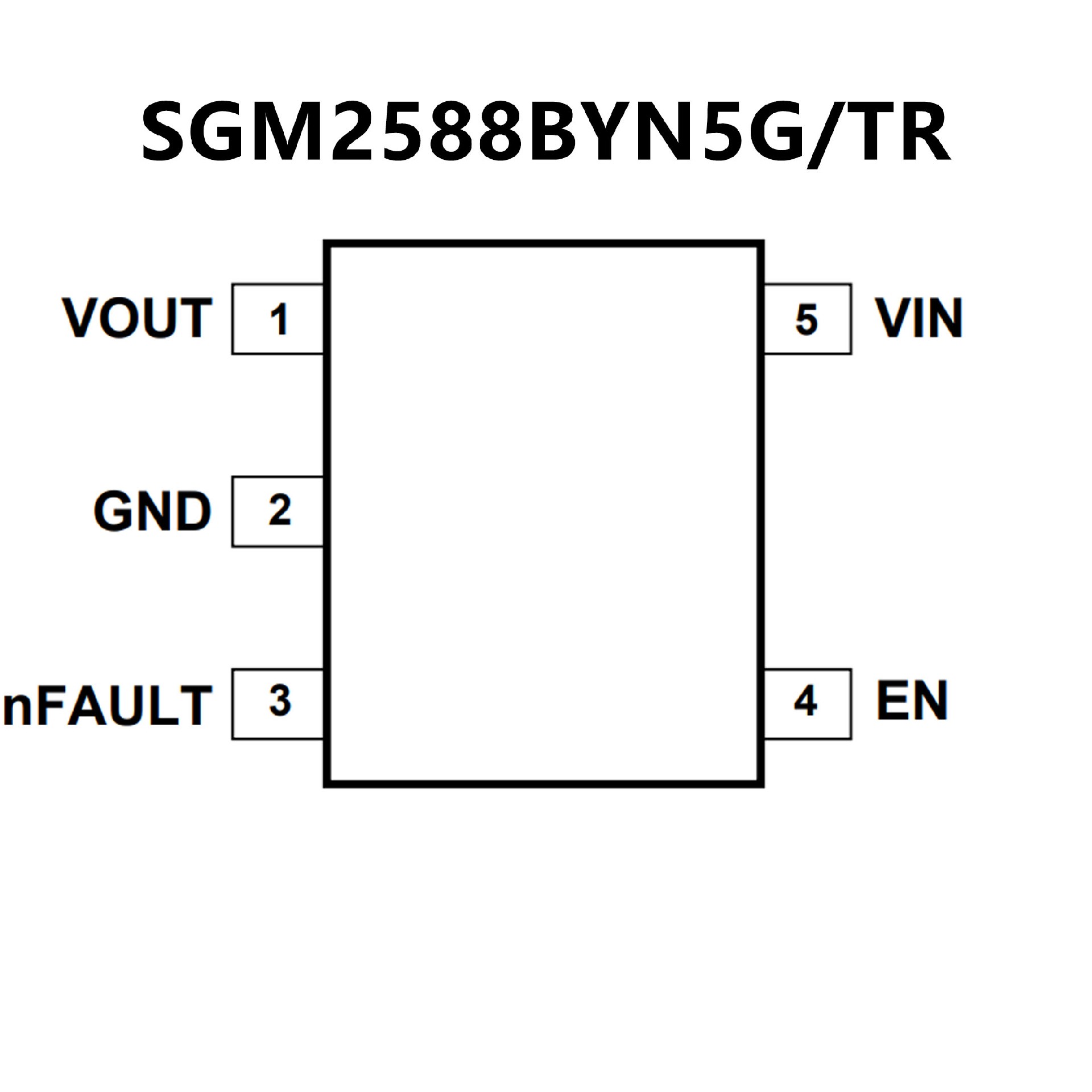

SGM2588B.pdf? 100mΩ (TYP) High-side N-Channel MOSFET
? Three Current Limit Levels
SGM2588A/B/G: 1100 ± 100mA
SGM2588C/D/I: 2100 ± 210mA
SGM2588E/F/K: 2600 ± 300mA
? Input Voltage Range: 2.5V to 5.5V
? Quiescent Current: 23μA (TYP)
? Shutdown Current: 0.1μA (TYP)
? Soft-Start Function
? Thermal Shutdown Protection
? Under-Voltage Lockout Protection for VIN
? No Reversed Leakage Current (Reverse Blocking)
? Fault Flag (nFAULT) with 13ms Filter
Eliminates
False Assertions
? Automatic Output Discharge in Shutdown Mode
(SGM2588A/B/C/D/E/F)
? 500kΩ Pull-Down Resistor at EN Pin
(SGM2588G/I/K)
? Evaluated to IEC 60950-1, Ed 2, Am1,
Annex CC,
Test Program 1 with CB Report
(SGM2588A/C/E/G/I/K)
? Available in Green SOT-23-5 Package
? 50m? Integrated N-MOSFET Switch
? Accurate Current Limit
? FLG: active low
? Constant-Current During Over-Current
? Fast Short-Circuit Response Time: 2μs (typ.)
? Operating Range: 2.7V - 5.5V
? Built-in Soft-Start with 3ms Typical Rise Time
? Over-Current, Output Over-Voltage
and
Thermal Protection
? Fault Report (FAULT) with De-glitch Time
? UL Recognized, File Number E497605
? IEC Recognized, File Number DK-69902-UL
? ESD Protection: 2kV HBM, 500V CDM
? Available in SOT23-5, SOT23-6
and
DFN2X2-6Packages
