SGM2588FYN5GTR.pdf? 100m? (TYP) High-side N-Channel MOSFET
? Three Current Limit LevelsSGM2588A/B/G:
1100 ± 100mASGM2588C/D/I: 2100 ± 210mA
SGM2588E/F/K: 2600 ± 300mA
? Input Voltage Range: 2.5V to 5.5V
? Low 23μA Quiescent Current
? Typical 0.1μA Shutdown Current
? Soft-Start Function
? Thermal Shutdown Protection
? Under-Voltage Lockout Protection for VIN
? No Reversed Leakage Current (Reverse Blocking)
? Fault Flag (FAULT ) with 13ms Filter
EliminatesFalse Assertions
? Automatic Output Discharge in Shutdown
Mode(SGM2588A/B/C/D/E/F)
? 500k? Pull-Down Resistor at EN Pin(SGM2588G/I/K)

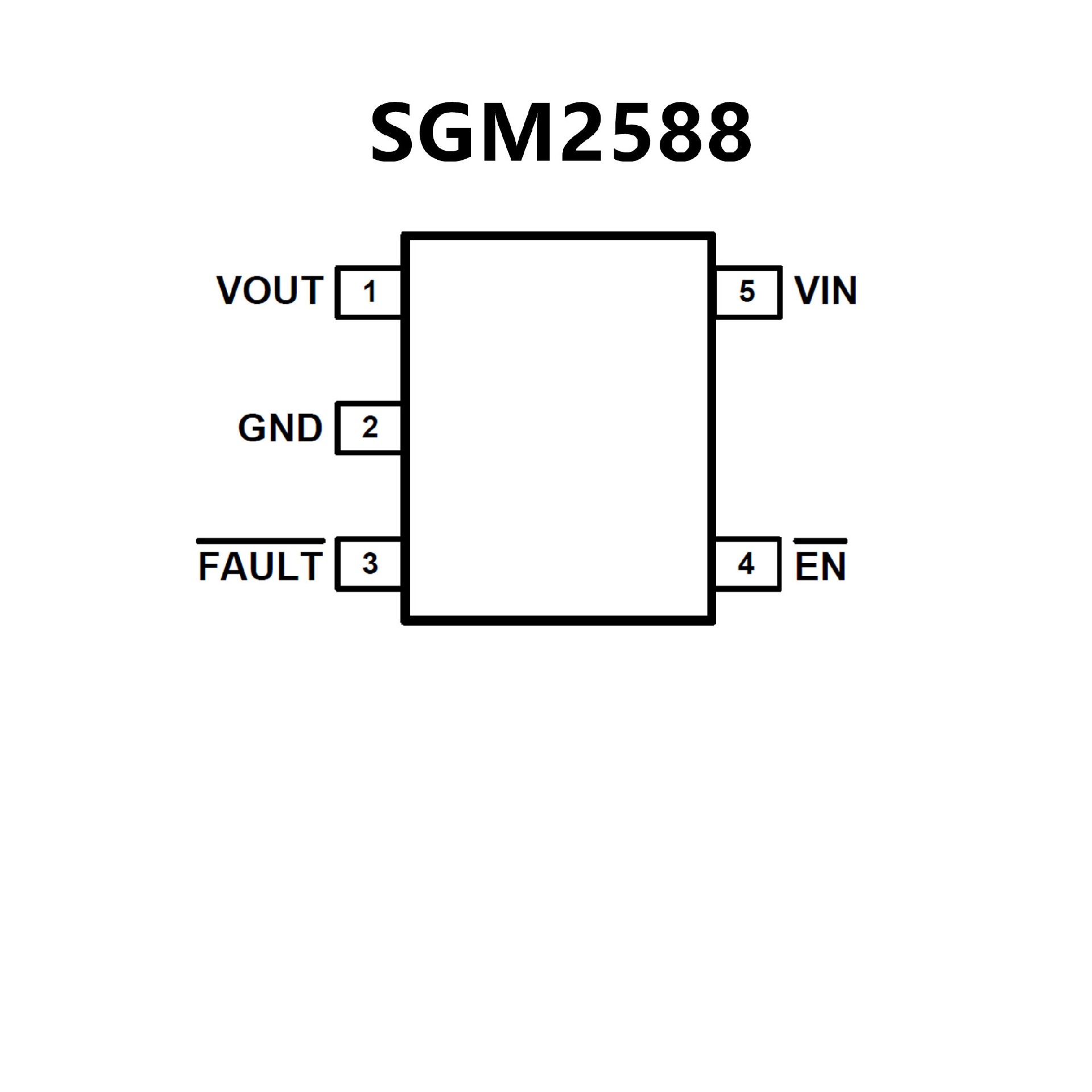

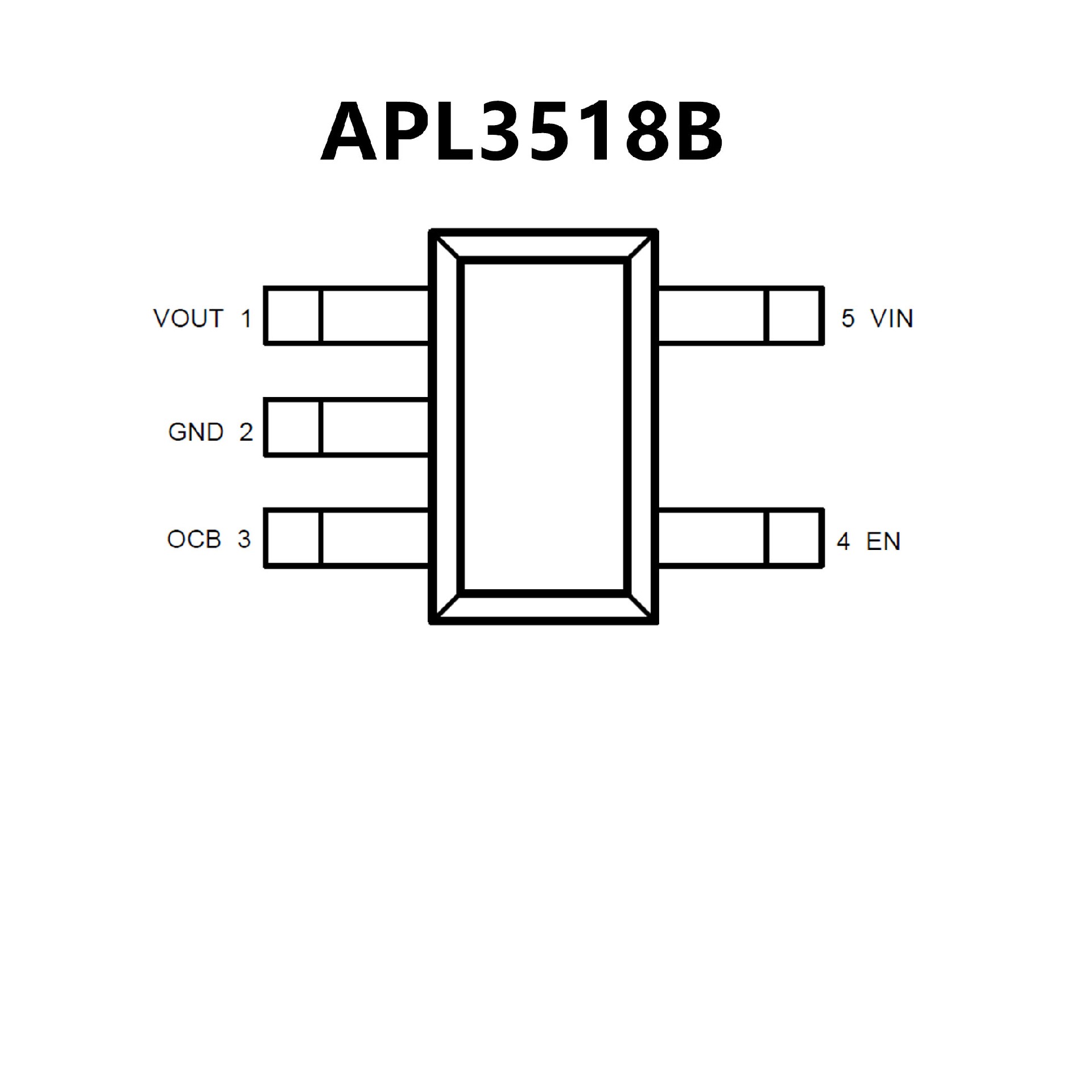

? Available in the Green SOT-23-5 Package
? 62mW High Side MOSFET
? Wide Supply Voltage Range: 2.7V to 5.5V
? Current-Limit and Short-Circuit Protections
? Over-Temperature Protection
? Fault Indication Output
? Enable Input
? UL Approved-File No. E328191
? Nemko IEC 60950-1:2005(2nd Edition);
Am 1:2009CB Scheme Certified, No.62377
? TUV IEC 60950-1:2005+A1:2009 andEN
60950-1:2006+A11:2009+A1:2010
Certified,No.44 780 11 393954
? Lead Free and Green Devices
Available(RoHS Compliant)
