60mΩ, Current Limited, Power Distribution Switch, SGM2590D Replace WS4612.
SGM2590D
SGM2590D.pdf
SGM2590D.pdfFEATURES
? High-side N-MOSFET
? On-Resistance: 60mΩ (TYP)
? Programmable Current Limit Range: 0.1A to 3A
1.5A at RILIM = 4.53kΩ
? Input Voltage Range: 2.5V to 6V
? Quiescent Current: 27μA (TYP)
? Shutdown Current: 0.28μA (TYP)
? Soft-Start Function
? Over-Temperature Protection
? Under-Voltage Lockout Protection for VIN
? No Reversed Leakage Current (Reverse Blocking)
? Quick Output Discharge (SGM2590D Only)
? 1.2MΩ Pull-Down Resistor at EN Pin
? Available in a Green SOT-23-5 Package

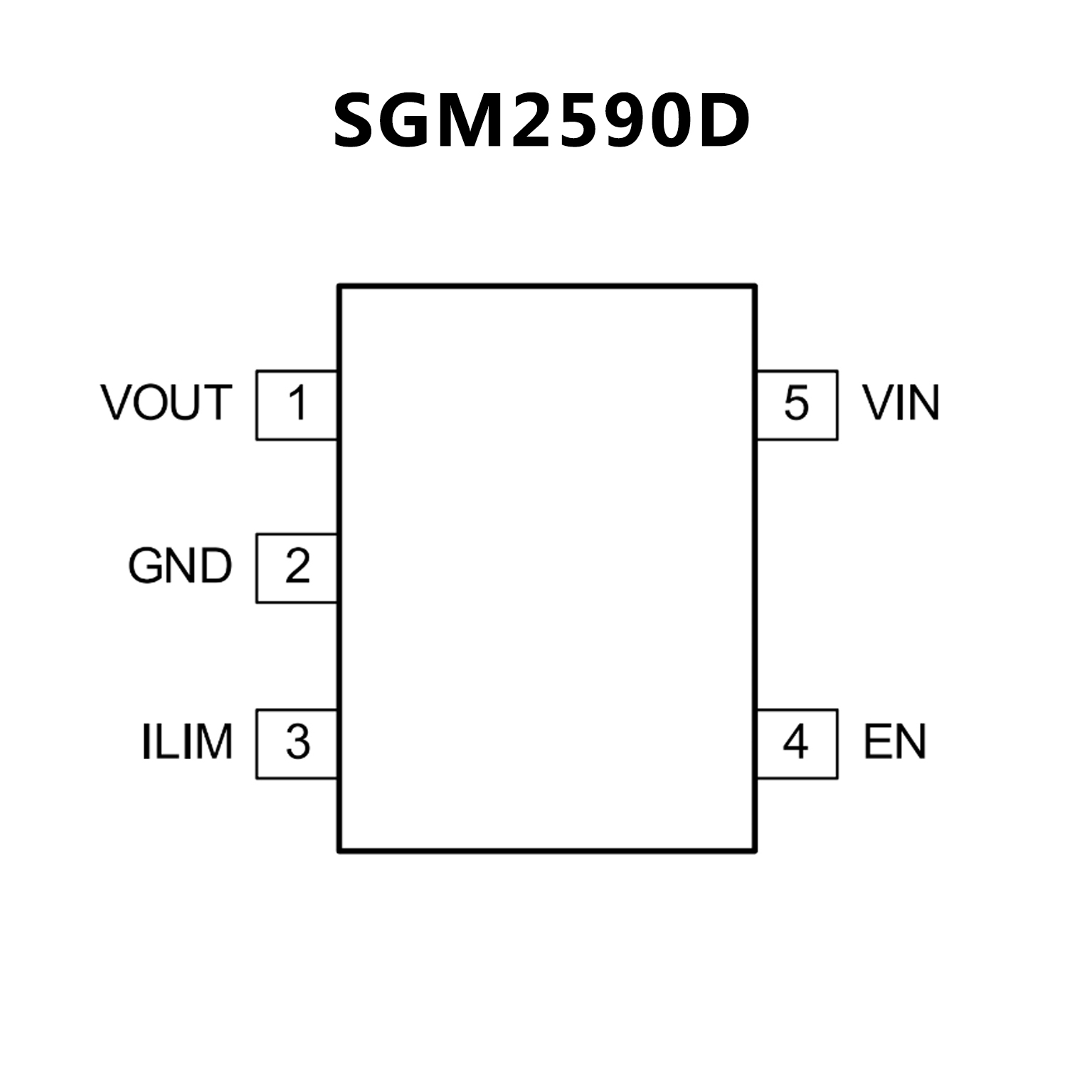

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? Input voltage range : 2.5-5.5V
? Main switch RON : 60mΩ@VIN=5.0V
? Adj. current limit range : 0.1A-2.5A(Typ.)
? Quiescent Supply Current : 26μA
? Under Voltage Lockout
? Auto discharge
? Reverse block (No“body diode”)
? Over temperature protection

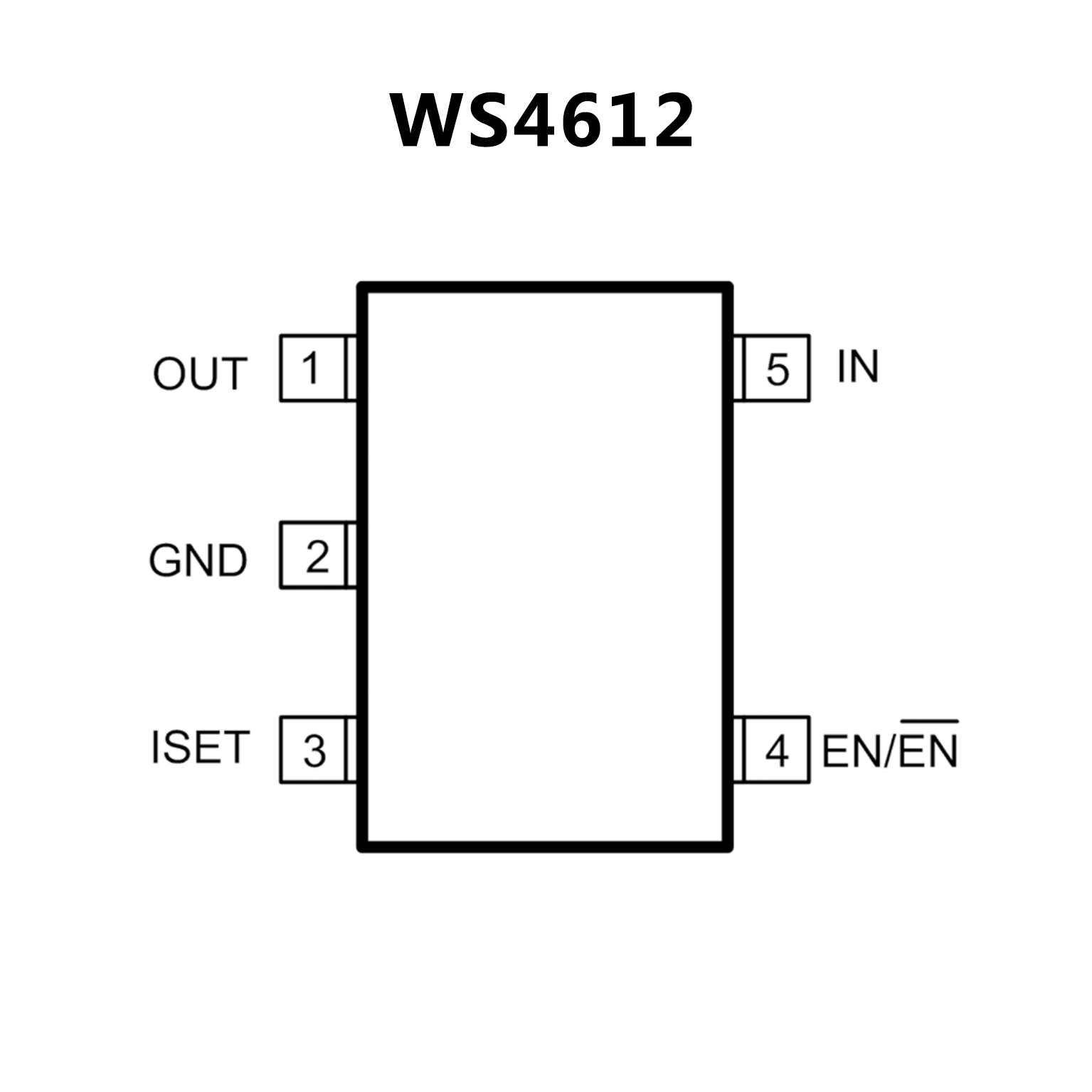

PIN CONFIGUTION
