Application-specific Operational Amplifier, Replace LM258
SGM2904
SGM2904.pdf
SGM2904.pdfFEATURES
? Wide Input Common Mode and Differential Voltage Ranges
? Low Input Bias and Offset Current
? Output Short-Circuit Protection
? High Input Impedance
? Low Offset Voltage: 4mV (MAX)
? Low Noise: 40nV/Hz at 1kHz
? Gain-Bandwidth Product: 2MHz
? Slew Rate: 0.6V/μs
? -40℃ to +125℃ Operating Temperature Range
? Available in Green SOIC-8 and MSOP-8 Packages
PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? Short Circuit Protected Outputs
? True Differential Input Stage
? Single Supply Operation: 3.0V to 32V
? Low Input Bias Currents
? Internally Compensated
? Common Mode Range Extends to Negative Supply
? Single and Split Supply Operation
? ESD Clamps on the Inputs Increase Ruggedness of
the Device without Affecting Operation

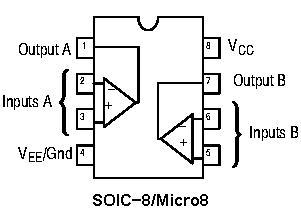

PIN CONFIGUTION
