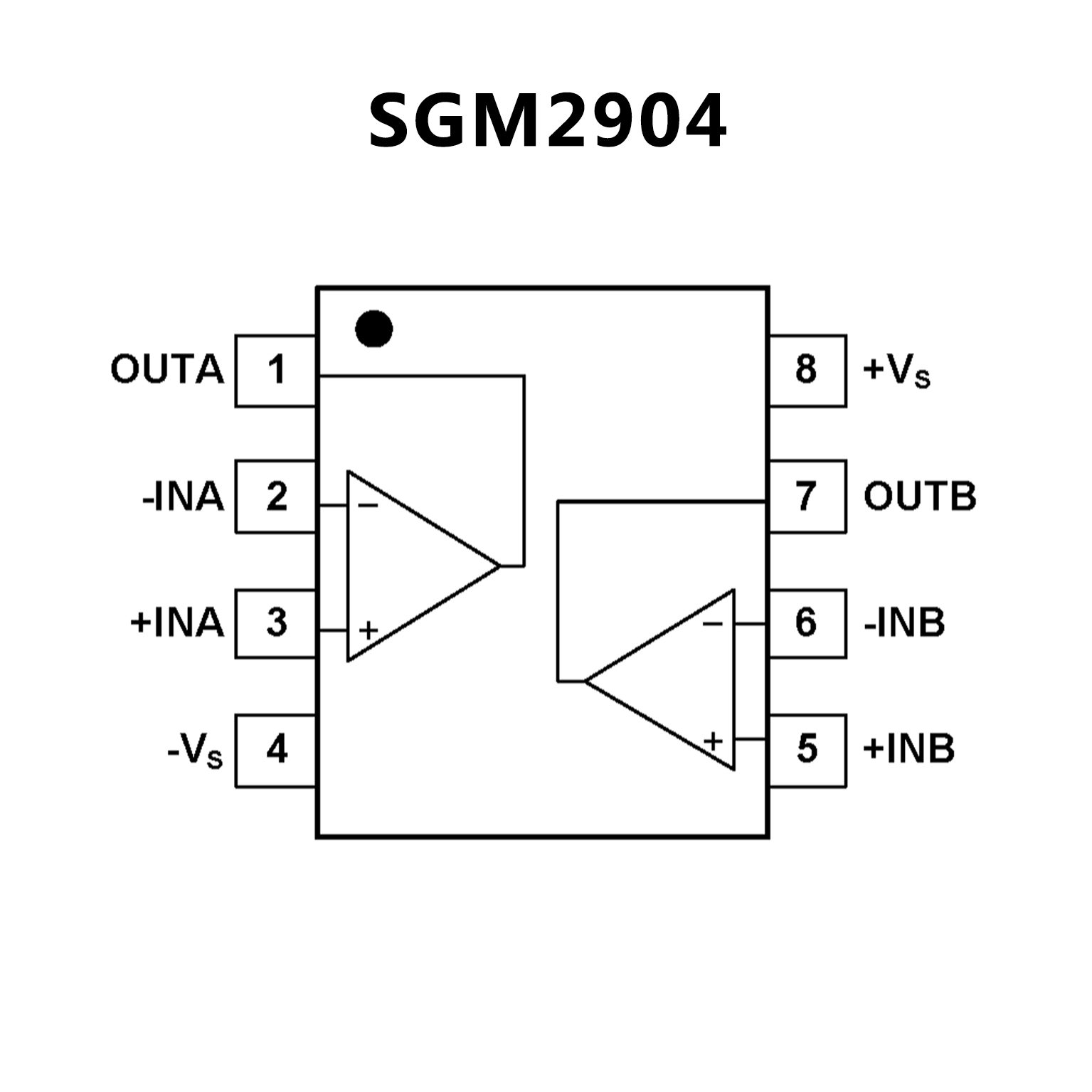

SGM2904.pdf? Wide Input Common Mode and Differential Voltage Ranges
? Low Input Bias and Offset Current
? Output Short-Circuit Protection
? High Input Impedance
? Low Offset Voltage: 4mV (MAX)
? Low Noise: 40nV/Hz at 1kHz
? Gain-Bandwidth Product: 2MHz
? Slew Rate: 0.6V/μs
? -40℃ to +125℃ Operating Temperature Range
? Available in Green SOIC-8 and MSOP-8 Packages

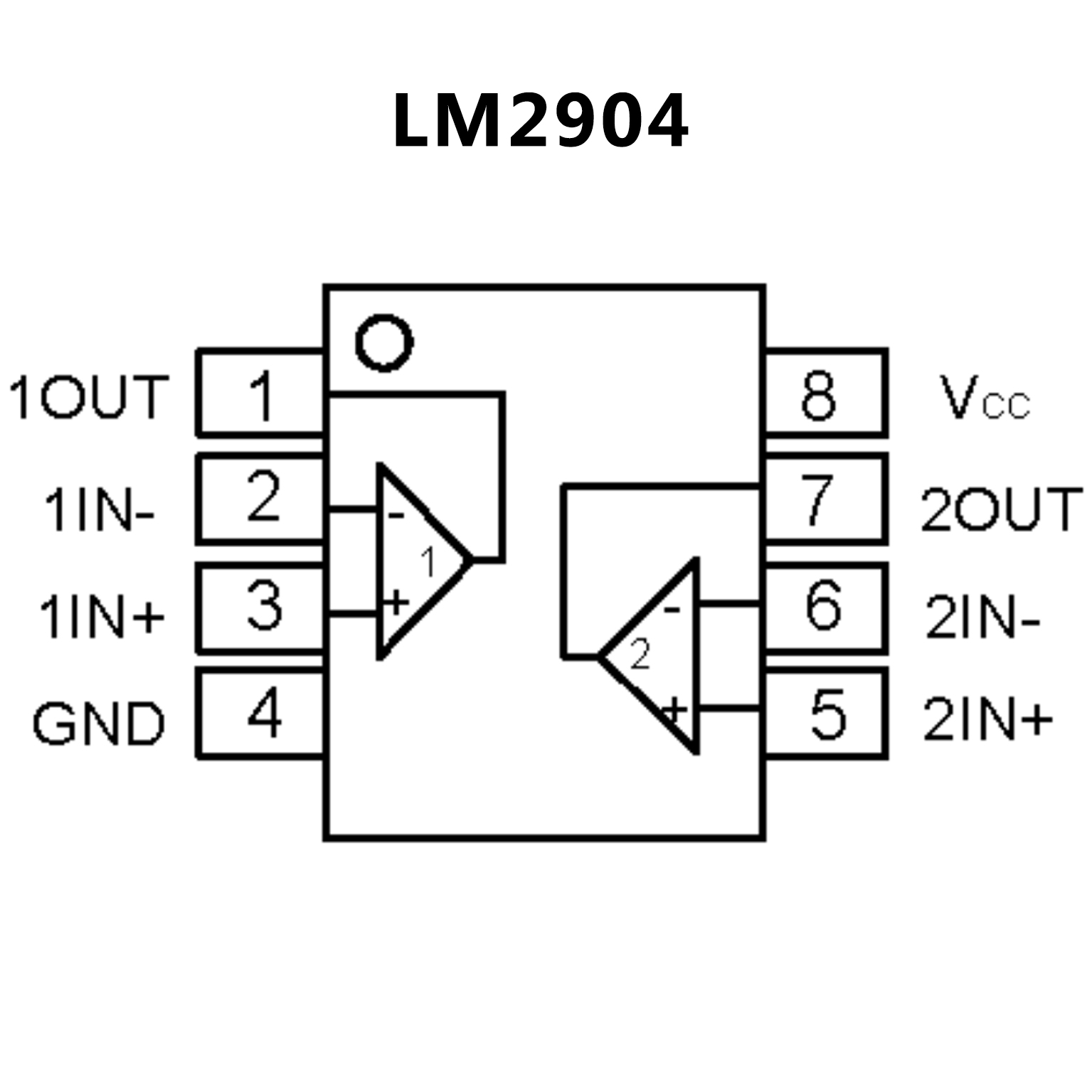

? Wide Power Supply Voltage Range:
? Single Supply: 3V to 36V
? Very Low Supply Current Drain
? LM2904 500μA – Independent of Supply Voltage
? Low Input Bias Current: 20nA
? Low Input Offset Voltage:
? A Version: 1mV Typ
? Non-A Version: 2mV Typ
? Large DC Voltage Gain: 100dB
? Wide Bandwidth (Unity Gain): 700kHz
? Internally Compensated with Unity Gain
? Input Common-Mode Voltage Range Includes Ground
? Differential Input Voltage Range Equal to the Power
Supply Voltage
