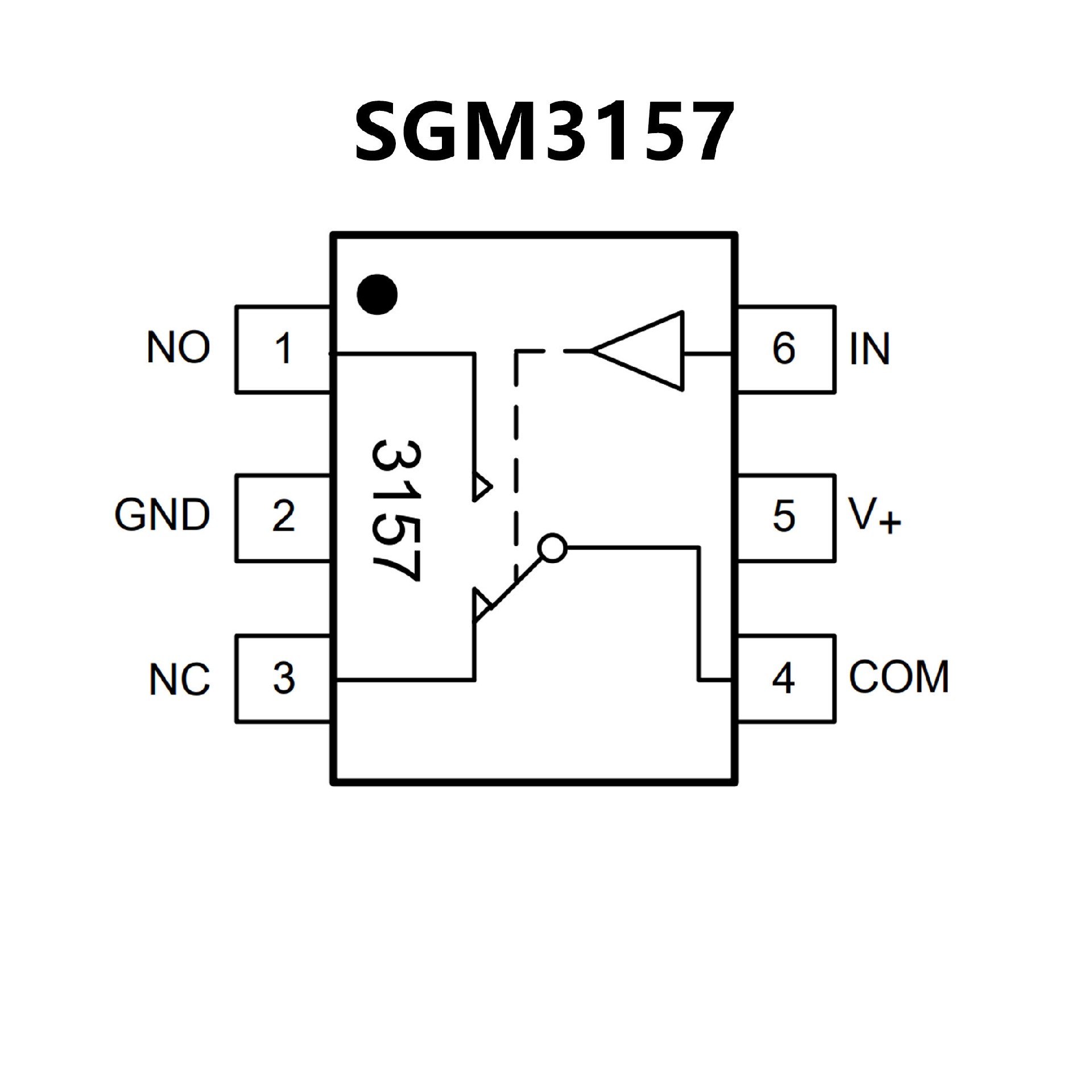

SGM3157.pdf? Supply Voltage Range: 1.8V to 5.5V
? On-Resistance: 4.5Ω (TYP) at 5.0V
? Fast Switching Times
tON 20ns
tOFF 15ns
? High Bandwidth: 300MHz
? High Off-Isolation: -51dB at 10MHz
? Rail-to-Rail Operation
? TTL/CMOS Compatible
? Break-Before-Make Switching
? Extended Industrial Temperature Range:
40℃ to +85℃
? Available in Green SC70-6 Package

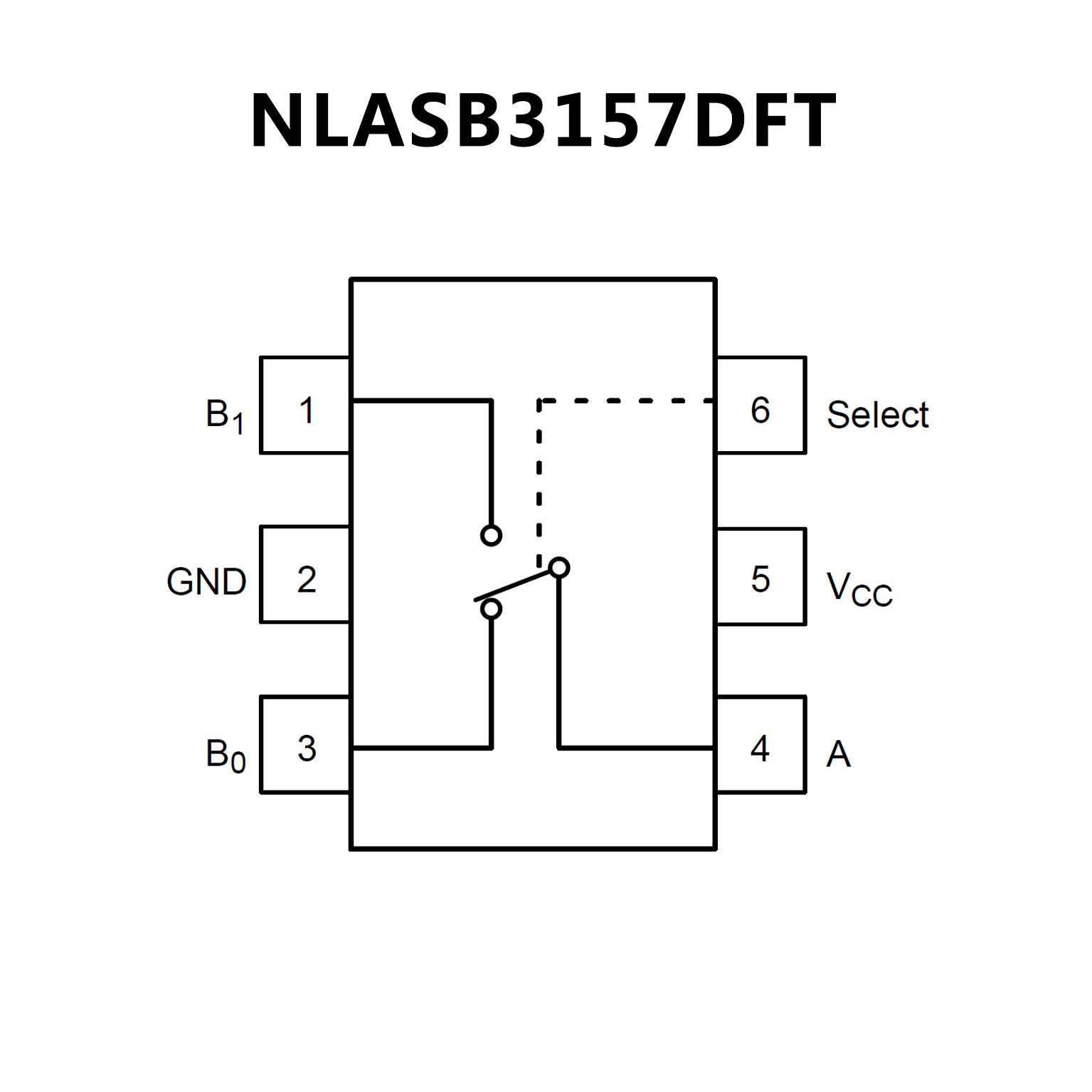

? High Speed: tPD = 1.0 ns (Typ) at VCC = 5.0 V
? Low Power Dissipation: ICC = 2.0 A (Max) at TA = 25°C
? Standard CMOS Logic Levels
? High Bandwidth, Improved Linearity
? Switches Standard NTSC/PAL Video, Audio, SPDIF and HDTV
? May be used for Clock Switching, Data Multiplexing, etc.
? RON Typical = 3 @ VCC = 4.5 V
? Break Before Make Circuitry, Prevents Inadvertent Shorts
? 2 Devices can Switch Balanced Signal Pairs,
e. g. LVDS 200 Mb/s
? Latchup Performance Exceeds 300 mA
? Pin for Pin Drop in for NC7SB3157
? Tiny SC88 and WDFN6 Packages
? ESD Performance:
Human Body Model; 2000 V;
Machine Model; 200 V
? NLVASB3157 Features Extended Automotive Temperature Range;
55°C to +125°C (See Appendix A)
? These Devices are Pb?Free, Halogen Free/BFR Free and are RoHS Compliant
