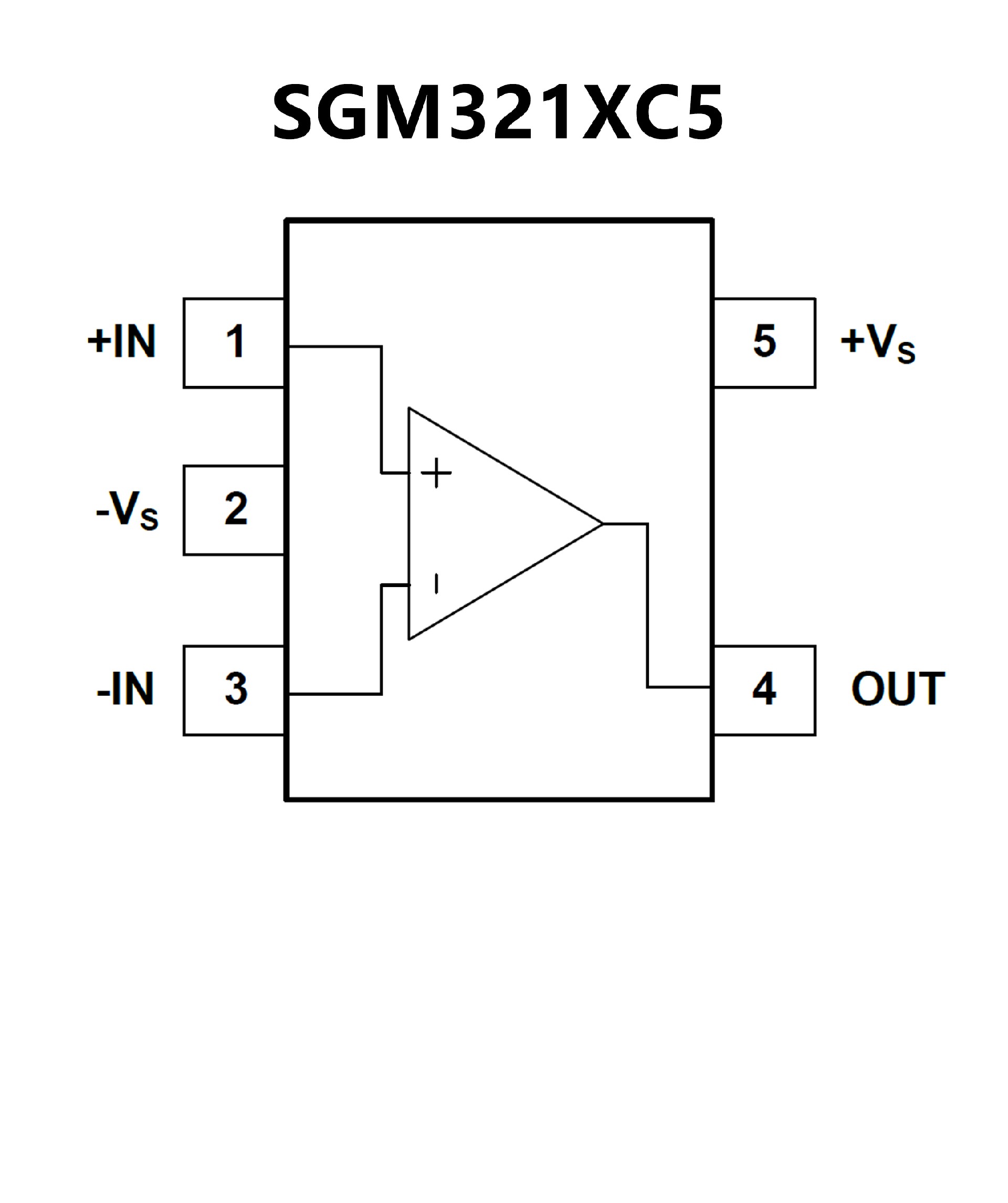

SGM321.pdf? Low Cost
? Input Offset Voltage: 5mV (MAX)
? Ultra-Low Input Bias Current: 10pA
? Unity-Gain Stable
? Gain-Bandwidth Product: 1MHz
? Rail-to-Rail Input and Output
? Supply Voltage Range: 2.1V to 5.5V
? Input Voltage Range: -0.1V to 5.6V with VS = 5.5V
? Low Supply Current: 60μA
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green SC70-5 Package
? Rail-to-rail input and output
? Low input offset voltage: ±0.3 mV
? Unity-gain bandwidth: 10 MHz
? Low broadband noise: 10 nV/√Hz
? Low input bias current: 0.5 pA
? Low quiescent current: 538 μA
? Unity-gain stable
? Internal RFI and EMI filter
? Operational at supply voltages as low as 1.8 V
? Easier to stabilize with higher capacitive load due
to resistive open-loop output impedance

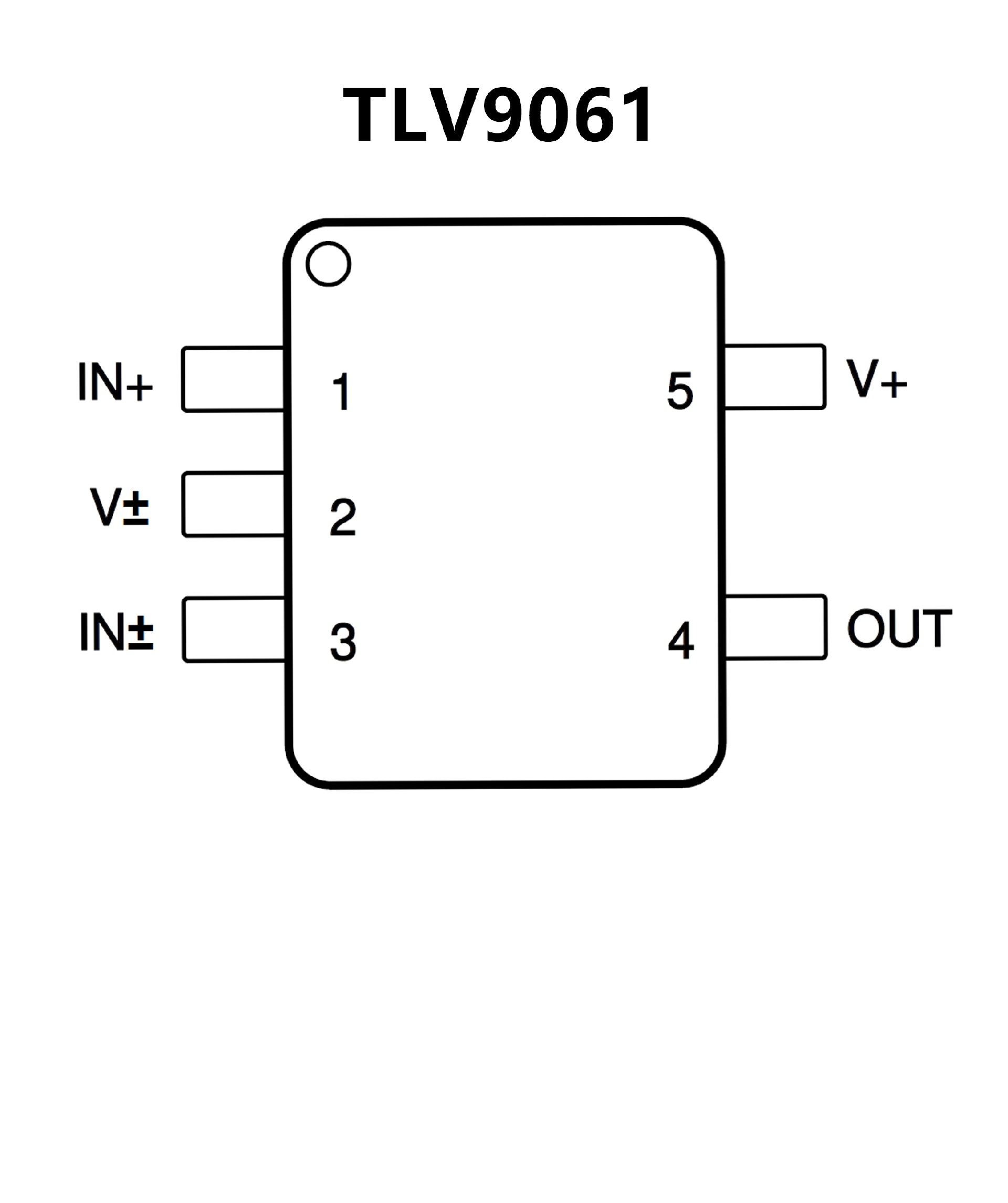

? Shutdown version: TLV906xS
? Extended temperature range: –40°C to 125°C
