Negative Voltage SPDT Switch,SGM3716 Replace NLHV3157N.
SGM3716
SGM3716.pdf
SGM3716.pdfFEATURES
? Operating Voltage Range: -12V to -4V
? Switch Signal Voltage Range: VEE to GND
? Positive Control Signal Voltage: 0V to 3.3V
? Low On-Resistance: 4.5Ω (TYP) at VEE = -12V
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green SC70-6 Package

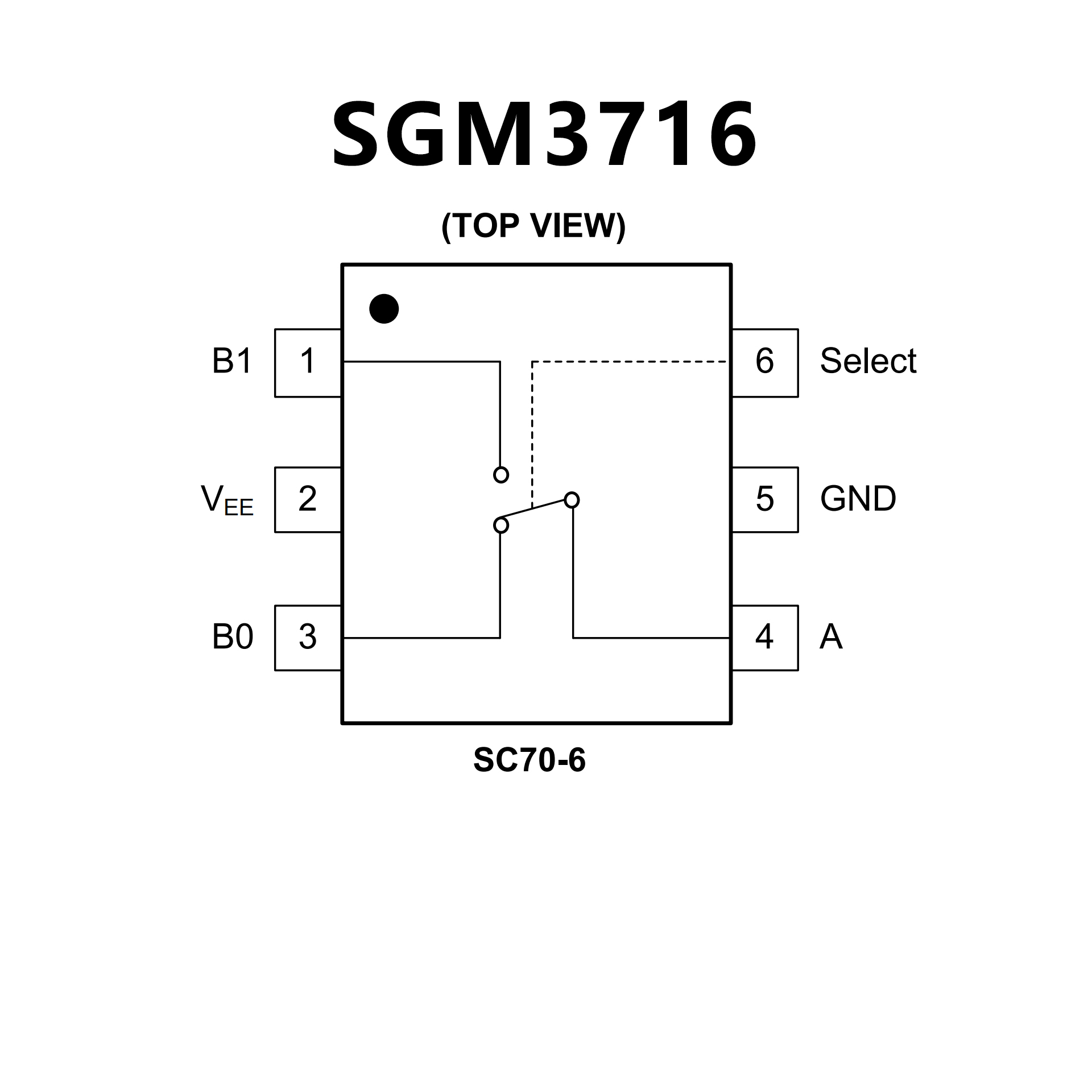

PIN CONFIGUTION
優勢替代
FEATURES
? Operating Voltage Range: VEE = ?12 V to ?4 V
? Switch Signal Voltage Range: VIS = VEE to GND
? Positive Control Signal Voltage: VIN = 0 to 3.3 V
? Low ON Resistance: RON ≤ 5 Ω @ VEE = ?10 V
? Latch?up Performance Exceeds 200 mA
? Available in: SC88 6?Pin Package
? These Devices are Pb?Free, Halogen?Free/BFR-Free
and areRoHS?Compliant

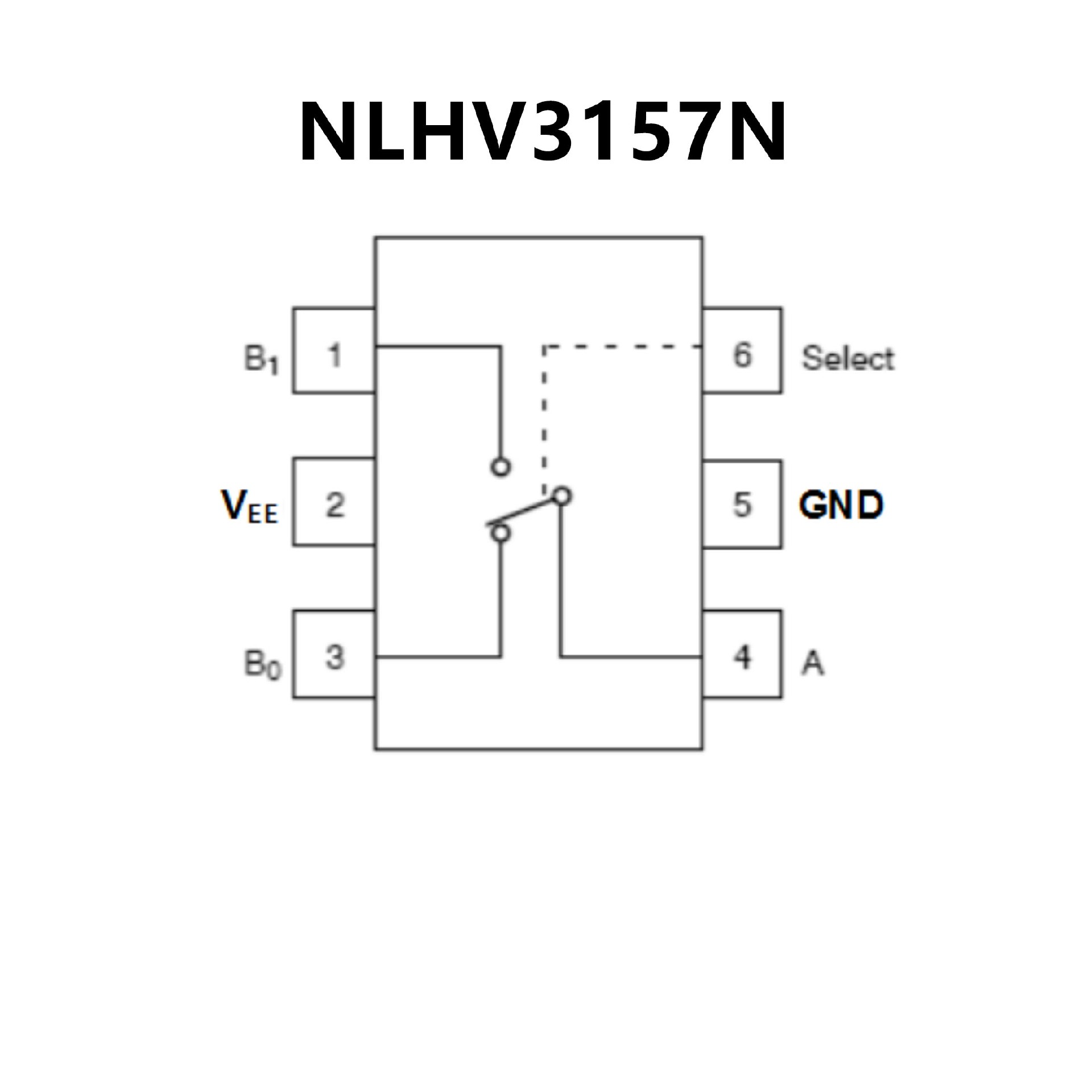

PIN CONFIGUTION
