0.6Ω Ultra Low On-Resistance, Negative Signal Passing, Dual SPDT Analog Switch,SGM3718 Replace NLAS2570.
SGM3718
SGM3718.pdf
SGM3718.pdfFEATURES
? Supply Voltage Range: 2.5V to 5V
? Ultra Low On-Resistance: 0.6Ω (TYP) at 4.5V
? -2V Low Distortion Negative Signal Passing
? Fast Switching Times
tON = 17ns (TYP)
tOFF = 24ns (TYP)
? High Off-Isolation: -57dB at 1MHz
? Low Crosstalk: -61dB at 1MHz
? Rail-to-Rail Input and Output Operation
? 1.8V Logic Compatible Control Pin
? Break-Before-Make Switching
? -40℃ to +85℃ Operating Temperature Range
? Available in Green TQFN-1.8×1.4-10L Package

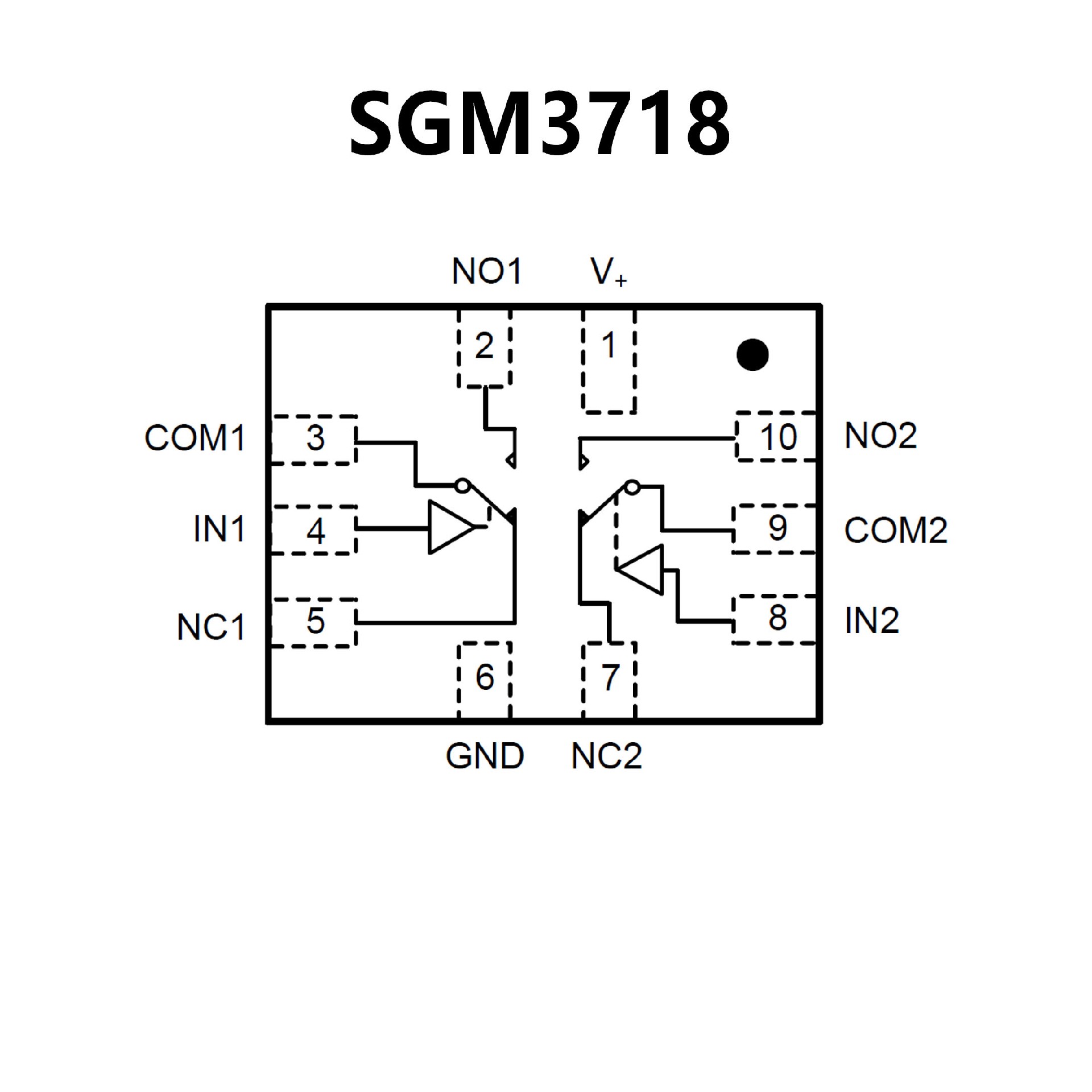

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? Capable to Switch Negative Swing Audio
Signals Without Requiring a DC Blocking Capacitor
? Low On?resistance (RON)
? Low Voltage Digital Control Logic:
(VINH = 1.4 V @ VCC = 2.7 V to 4.3 V)
? Low Power Consumption (ICC ≤ 250 nA)
? Space Saving 1.4 mm x 1.8 mm Package UQFN Package
? This is a Pb?Free Device
PIN CONFIGUTION
