Triple-Output 700mA AMOLED Display Power Supply,SGM3838 Replace NT50379.
SGM3838
SGM3838.pdf
SGM3838.pdfFEATURES
? Synchronous Inverting Buck-Boost Converter(ELVSS)
6.0V to -0.8V Output Voltage with 100mV Step
3.0V Default Output Voltage
1% Accuracy at -3V
700mA Output Current Capability
? Synchronous Boost Converter (AVDD)
5.5V to 7.9V Output Voltage with 100mV Step
7.3V Default Output Voltage
1% Accuracy at 7.3V
150mA Output Current Capability
? VIN and VOUT Bi-Directional Isolation
? Short Circuit Protection (SCP)
? Overload Protection
? Thermal Shutdown
? VELVSS Start-Up Delay: 5ms
? Short Circuit and OLP Detect Time: 0.6ms
? Available in a Green WLCSP-2.5×2.5-36B Package

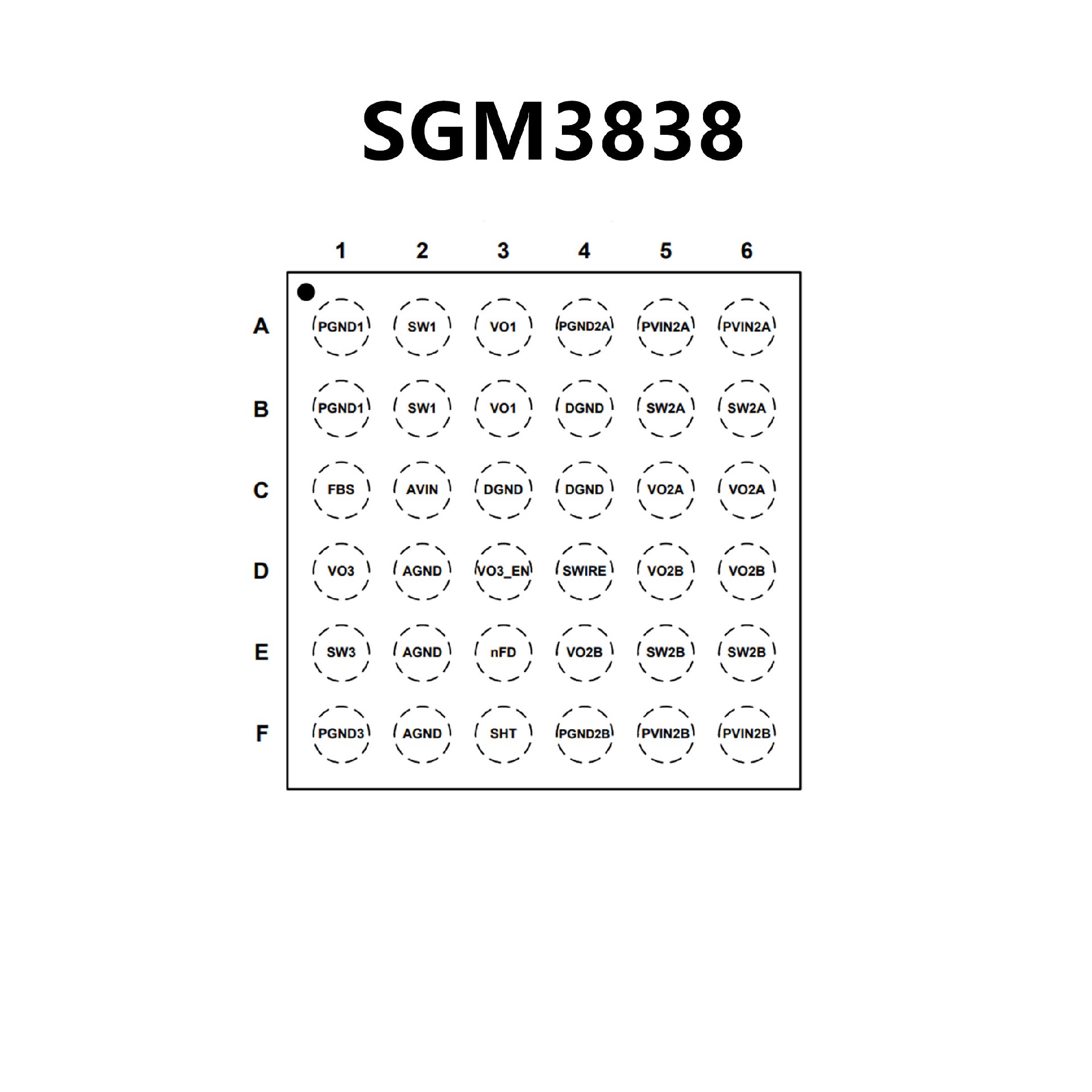

PIN CONFIGUTION
