35ppm/℃, 245μA,CMOS Voltage Reference, SGM4027-2.5 Replace REF3025.
SGM4027-2.5
SGM4027-2.5.pdf
SGM4027-2.5.pdfFEATURES
? Low Dropout Voltage: 0.2V (MAX)
? High Output Current: 10mA (MAX)
? Limited Output Current: 25mA
? Stable Output CLOAD Range: 2μF to 22μF
? High Initial Accuracy: 0.1% (MAX)
? Low Temperature Drift:
35ppm/℃ (MAX) from -40℃ to +125℃
? Low Quiescent Current: 245μA (TYP)
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green SOT-23 Package

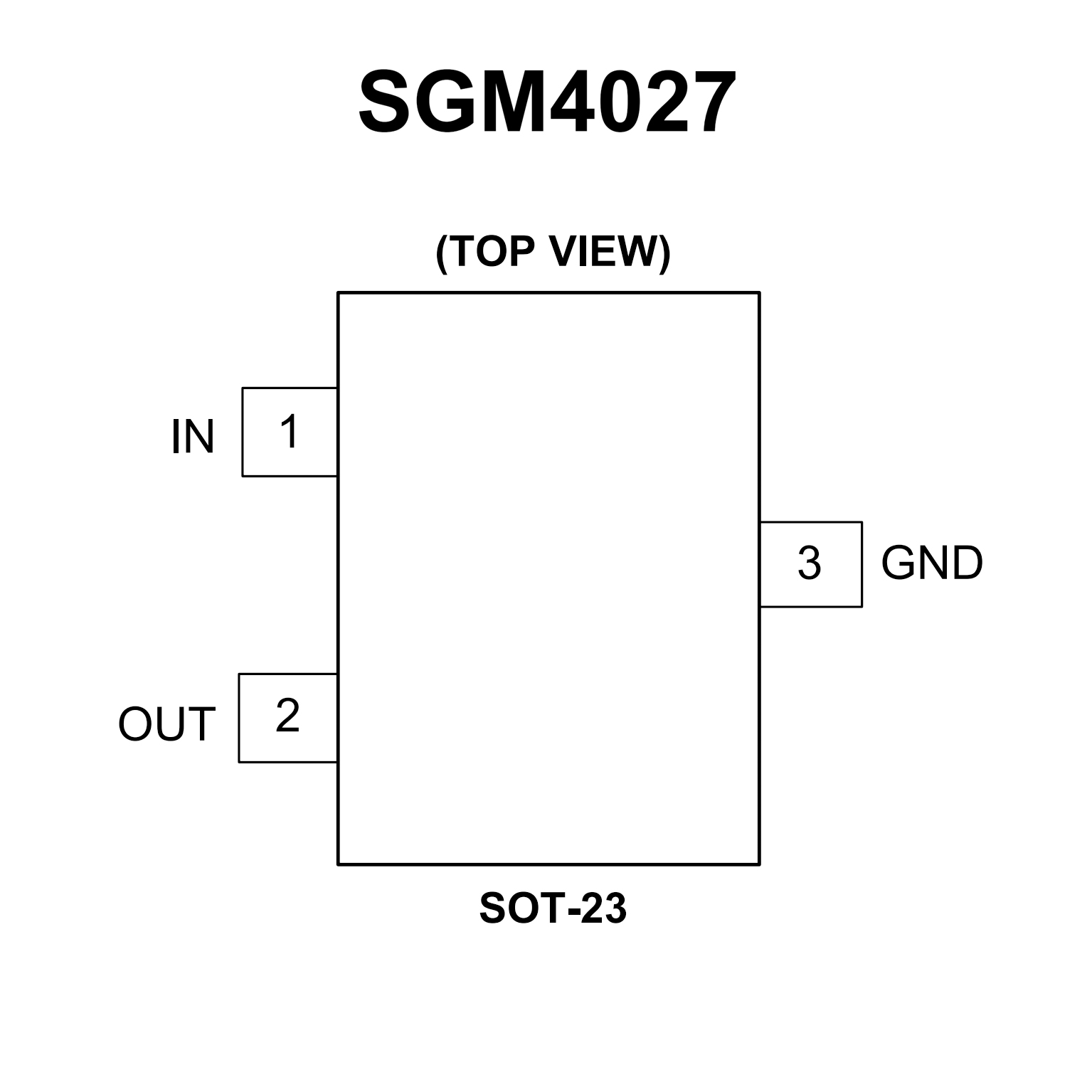

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? microSize Package: SOT-23-3
? Low Dropout: 1 mV
? High Output Current: 25 mA
? High Accuracy: 0.2%
? Low IQ: 42 μA (Typical)
? Excellent Specified Drift Performance:
50 ppm/°C (Maximum) From 0°C to 70°C
75 ppm/°C (Maximum) From –40°C to +125°C

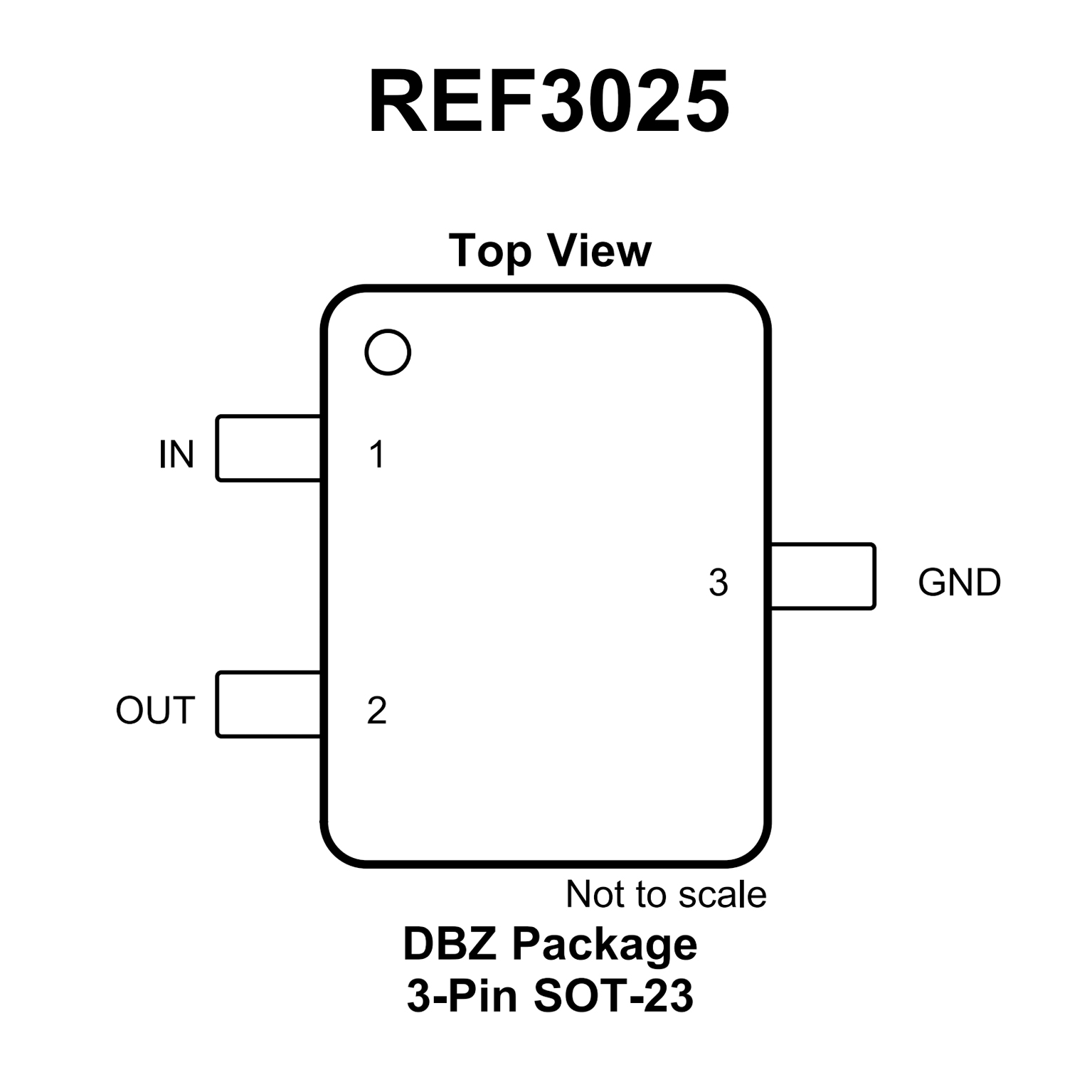

PIN CONFIGUTION
