High-Current Over-Voltage Protector,SGM40658 Replace AW21801.
SGM40658
SGM40658.pdf
SGM40658.pdfFEATURES
? Protect High-Power Portable Devices
Wide Operating Input Voltage Protection from 2.5V to 28V
Integrated 20mΩ (TYP) N-Channel MOSFET Switch
? Flexible Over-Voltage Protection Design
Adjustable Over-Voltage Protection Trip Level
Wide Adjustable OVLO Threshold Range from 4V to 20V
Internal Preset OVLO Thresholds:
5.95V (SGM40658)
? Additional Protection Features Increase System Reliability
Surge Immunity up to +120V
Soft-Start to Minimize In-Rush Current
Internal 15ms Startup Debounce
Thermal Shutdown Protection
? Enable Function
? -40℃ to +85℃ Operating Temperature Range
? Available in Green WLCSP-1.31×1.84-12B Package

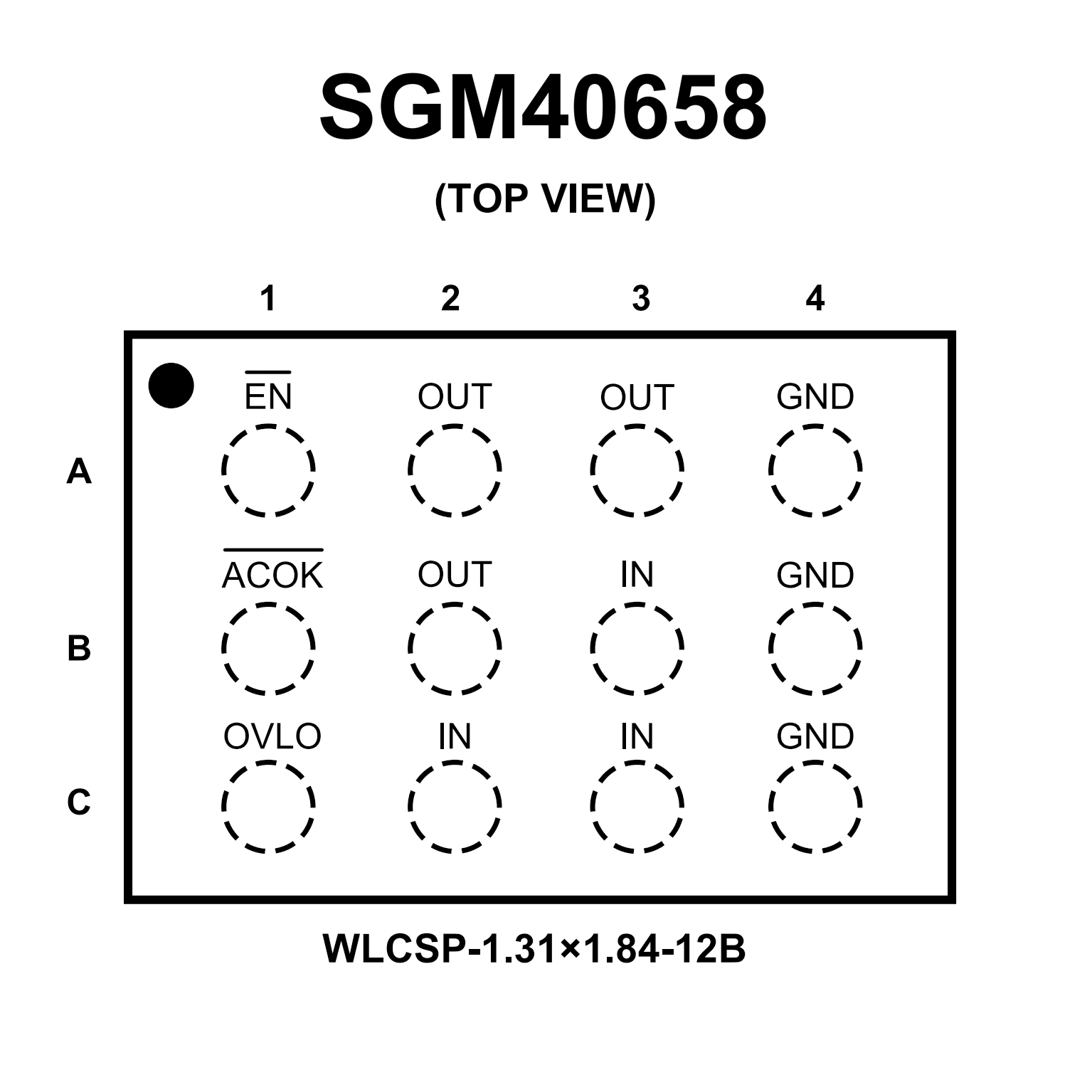

PIN CONFIGUTION
