SGM40658.pdf? Protect High-Power Portable Devices
Wide Operating Input Voltage Protection from 2.5V to 28V
Integrated 20mΩ (TYP) N-Channel MOSFET Switch
? Flexible Over-Voltage Protection Design
Adjustable Over-Voltage Protection Trip Level
Wide Adjustable OVLO Threshold Range from 4V to 20V
Internal Preset OVLO Thresholds:
5.95V (SGM40658)
? Additional Protection Features Increase System Reliability
Surge Immunity up to +120V
Soft-Start to Minimize In-Rush Current
Internal 15ms Startup Debounce
Thermal Shutdown Protection
? Enable Function
? -40℃ to +85℃ Operating Temperature Range

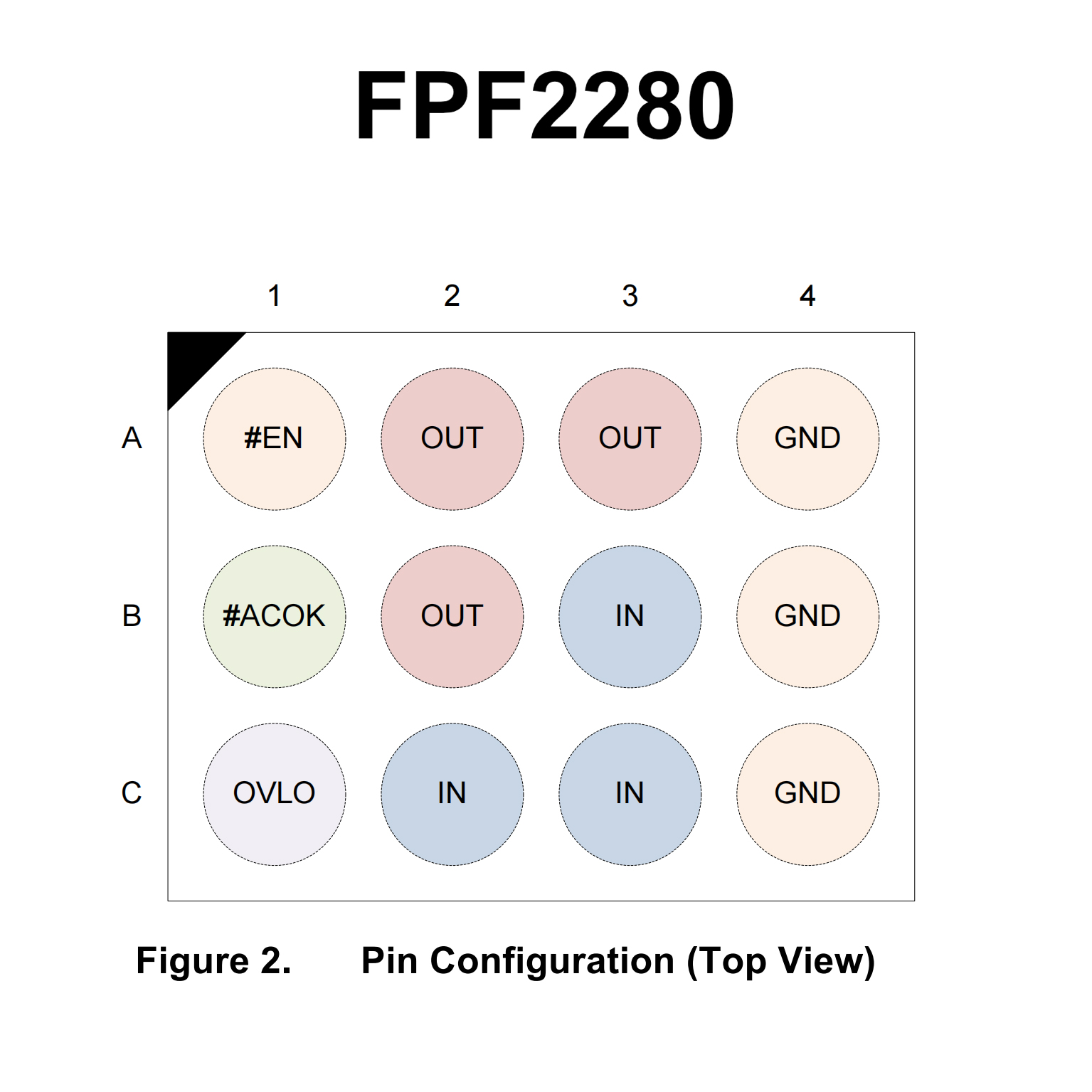

? Available in Green WLCSP-1.31×1.84-12B Package
? Surge Protection
IEC 61000-4-5: > 100 V ! Over-Voltage Protection (OVP)
? Over-Temperature Protection (OTP)
? ESD Protection
Human Body Model (HBM): > 3.5 kV
Charged Device Model (CDM): > 2 kV
IEC 61000-4-2 Air Discharge: > 15 kV
IEC 61000-4-2 Contact Discharge: > 8 kV
