SGM40658.pdf? Protect High-Power Portable Devices
Wide Operating Input Voltage Protection from 2.5V to 28V
Integrated 20mΩ (TYP) N-Channel MOSFET Switch
? Flexible Over-Voltage Protection Design
Adjustable Over-Voltage Protection Trip Level
Wide Adjustable OVLO Threshold Range from 4V to 20V
Internal Preset OVLO Thresholds:
5.95V (SGM40658)
? Additional Protection Features Increase System Reliability
Surge Immunity up to +120V
Soft-Start to Minimize In-Rush Current
Internal 15ms Startup Debounce
Thermal Shutdown Protection
? Enable Function
? -40℃ to +85℃ Operating Temperature Range
? Available in Green WLCSP-1.31×1.84-12B Package
? Wide Input voltage range: 2.3V to 28V
? Up to 4A Continuous current capability
? Integrated 38mΩ (typ) N-Channel MOSFET
? Wide Over-Voltage threshold range
Fixed internal: 5.95V
Adjustable: 4V to 22V
? Fast OVP response time: 0.1μs (typ.)
? Microphone Mode for audio signal on IN
? Internal 15ms Startup Debounce
? Integrated Surge Protection up to 100V
? Low Quiescent Current: 70μA (typ.)
? Thermal Shutdown and Short Circuit Protection
? Compliance to IEC61000-4-2 (Level 4)
Contact: ±8kV
Air Gap: ±15kV
? ESD Protection
Human Body Model: ±2kV

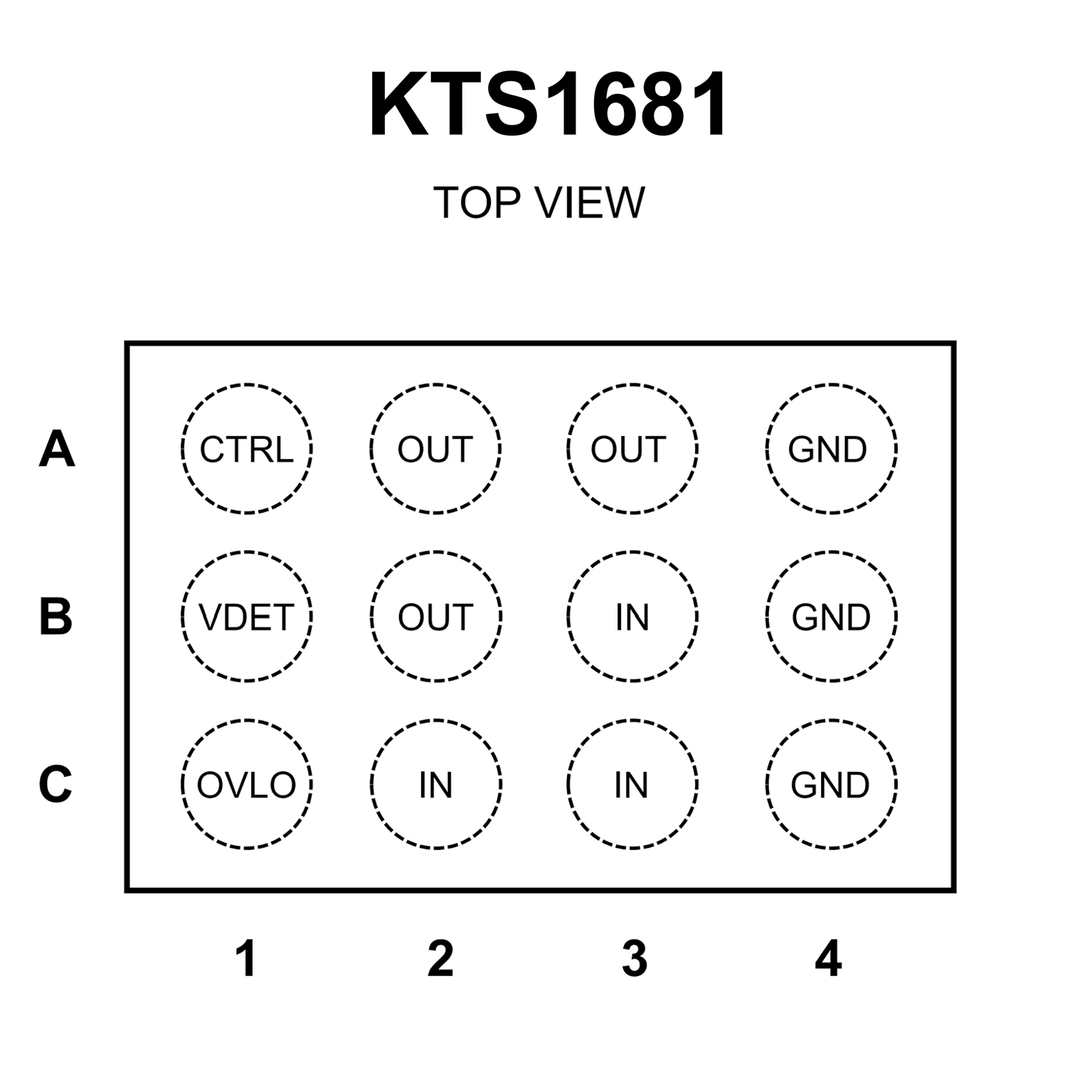

? Pb-free Package: 12-Bump WLCSP
? -40°C to +85°C Temperature Range
