Adjustable Over-Voltage Protection Switches,SGM40661YGTR Replace HIP2601.
SGM40661
SGM40661.pdf
SGM40661.pdfFEATURES
? Wide Input Voltage Range: 2.5V to 28V
? Up to 4A Current Capability
? Integrated 27mΩ (TYP) N-Channel MOSFET
? Fast OVP Turn-Off Response Time: 80ns
? Flexible Over-Voltage Protection Design
Internal Preset OVLO Thresholds:Fixed
15.61V (SGM40659)Fixed 6.80V
(SGM40660)Fixed 5.94V (SGM40661)
Wide Adjustable OVLO Threshold Range from4V to 20V
? Surge Immunity up to +40V
Auto-Enabled Switch with 15ms Debounce Time
? Under-Voltage (UVLO), Short-Circuit andThermal
Shutdown Protection
? -40℃ to +85℃ Operating Temperature Range
? Available in Green WLCSP-1.30×0.94-6B Package

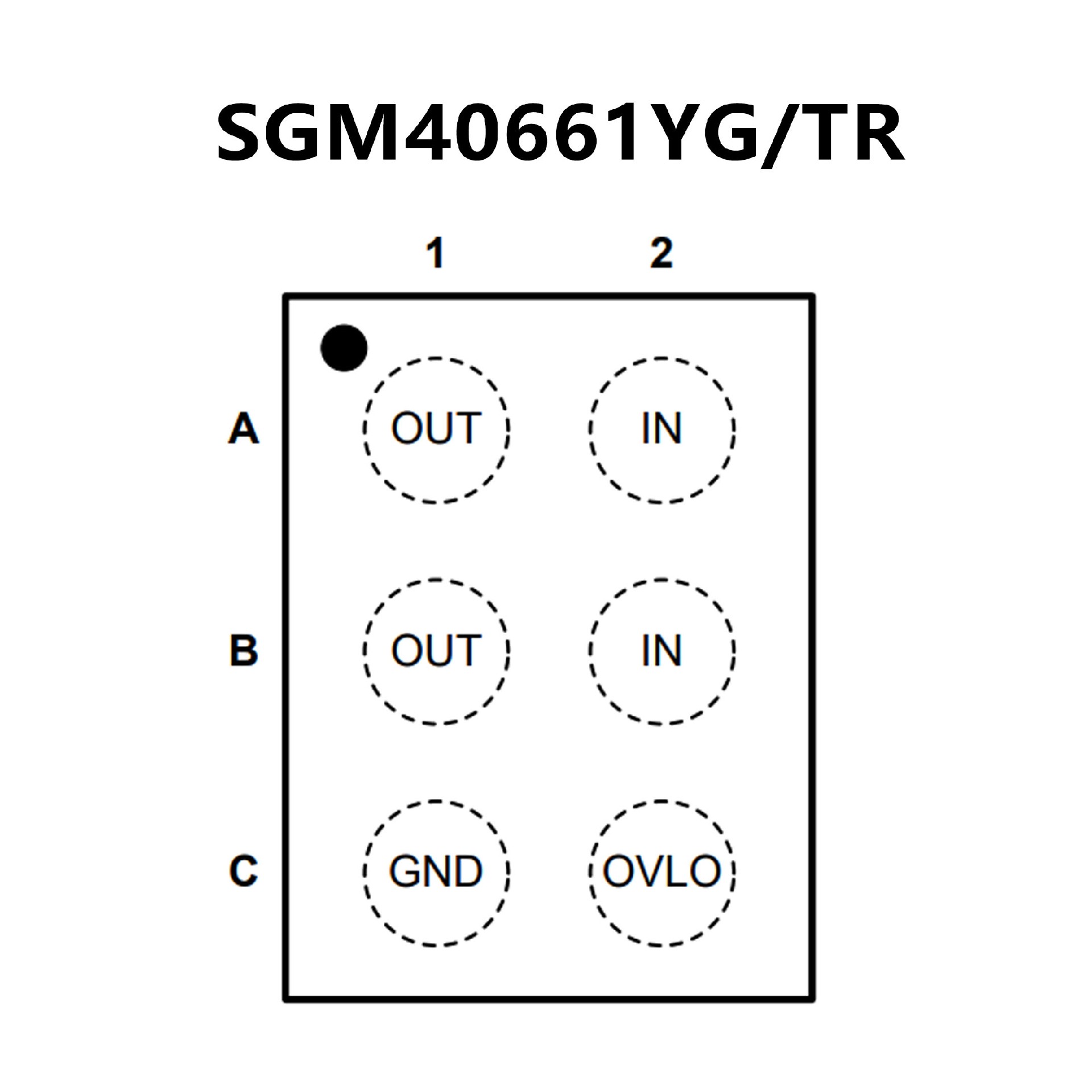

PIN CONFIGUTION
優勢替代
