SGM42402Q.pdf? AEC-Q100 Qualified for Automotive Applications
Device Temperature Grade 1
TA = -40℃ to +125℃
? Full Set of Protections
Short-Circuit Protection
Over-Voltage Protection
ESD Protection
Thermal Shutdown with Automatic Restart
? Clamp Integrated for Switching of Inductive Loads
? dV/dt Robustness
? 42V Drain-to-Source Breakdown Voltage
? Output Clamp Voltage: 42V
? Static Drain-to-Source On-Resistance:
110m?/Channel (TYP) at 10V
? Continuous Drain Current:
SOIC-8:
3.2A, 1-Channel On
2.2A/CH, 2-Channel On
SOIC-8 (Exposed Pad):
4.2A, 1-Channel On
3.1A/CH, 2-Channel On
Output Peak Current (Thermal Limited): 8.8A
? Logic Level Input Capable of Analog Driving
? Available in Green SOIC-8 and SOIC-8 (Exposed
Pad) Packages

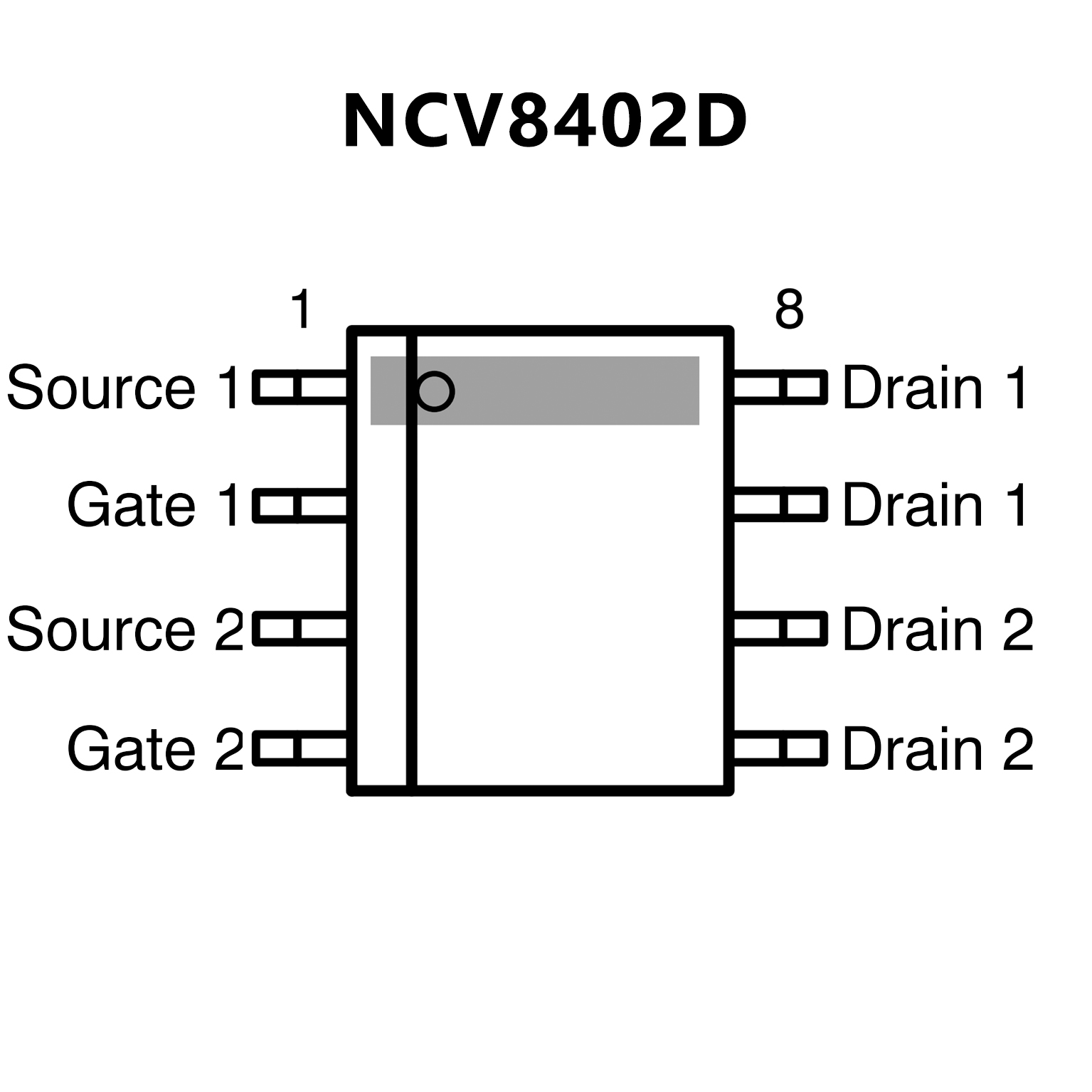

? Short?Circuit Protection
? Thermal Shutdown with Automatic Restart
? Overvoltage Protection
? Integrated Clamp for Inductive Switching
? ESD Protection
? dV/dt Robustness
? Analog Drive Capability (Logic Level Input)
? AEC?Q101 Qualified
? NCV Prefix for Automotive and Other Applications
Requiring Site and Change Control
? These Devices are Pb?Free and are RoHS Compliant
