8ch Low-side switch, SGM42408Q Replace BD8LA700.
SGM42408Q.pdf
優(yōu)勢替代
FEATURES
? Monolithic power IC that has a built-in control part (CMOS) and a power MOS FET on 1chip
? 8ch Low-side switch for driving resistive, inductive load
? 16bit Serial peripheral interface(SPI) for diagnostics and control
? Built-in Open Load Detection circuit in output-off state
? Built-in Over Current Protection circuit (OCP)
? Built-in Active Clamp circuit
? Built-in Thermal shutdown circuit (TSD）
? Low On resistance of RON=700m?(VIN=5V, Tj=25°C, Io=0.2A, Typ)
? Surface mount HTSSOP-B24 Package
? AEC-Q100 Qualified

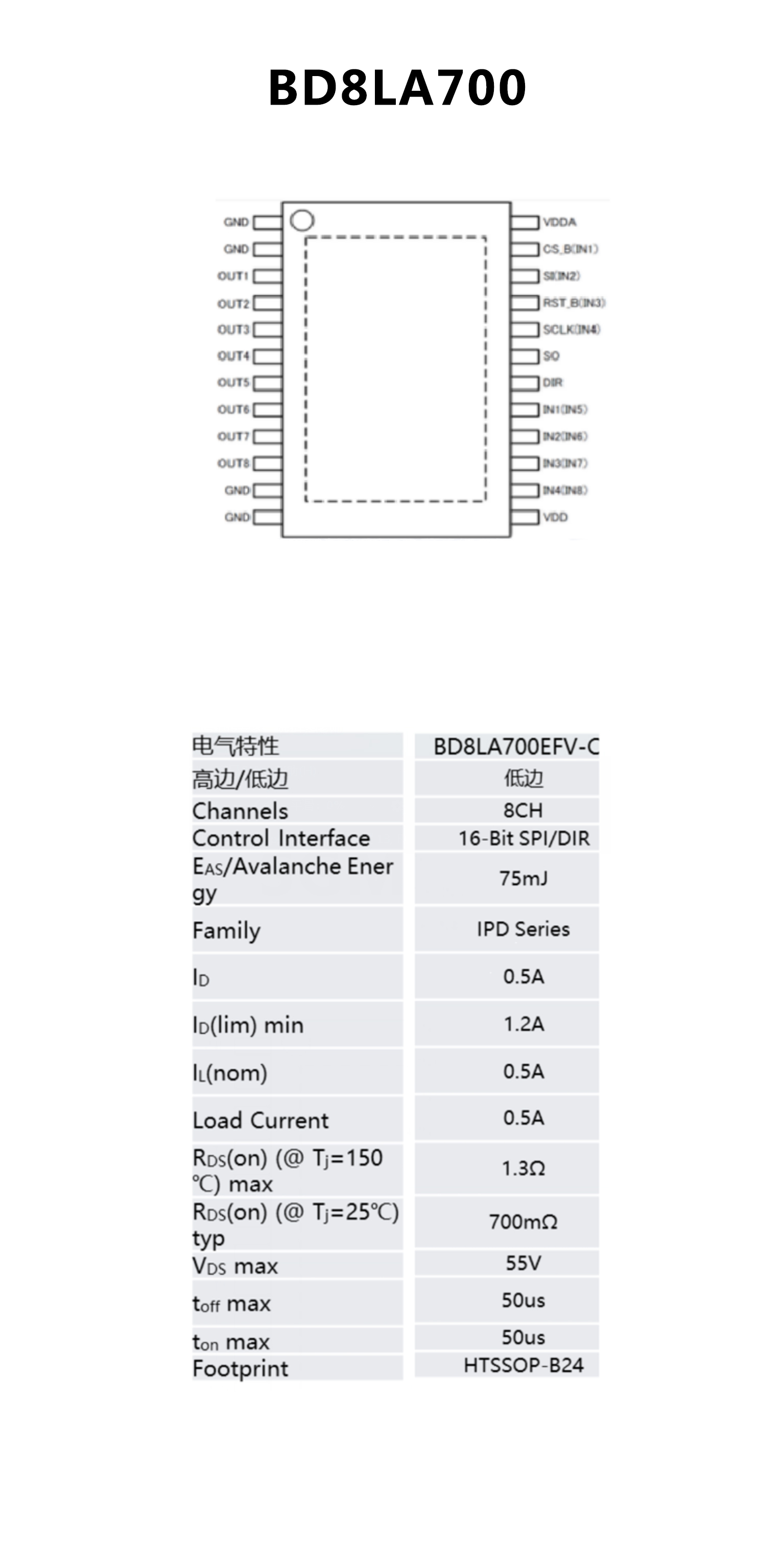

PIN CONFIGUTION
