SGM431BXN3LG.pdf? Reference Voltage Tolerance at +25℃:
SGM431: 1% (Standard Grade)
SGM431B: 0.5% (B Grade)
? Adjustable Output Voltage: VREF to 36V
? High Stability under Capacitive Load
? Typical Temperature Drift: 5mV
? Low Output Noise
? Typical Output Impedance: 0.1Ω
? Sink-Current Capability: 1mA to 100mA
? Operating Junction Temperature Range:
-40℃ to +125℃

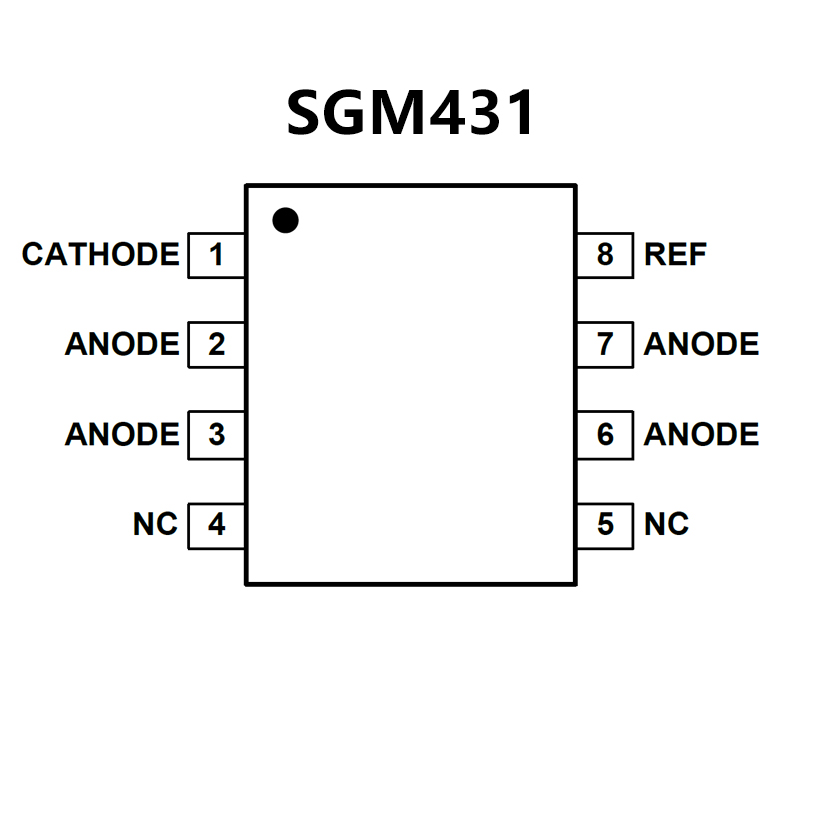

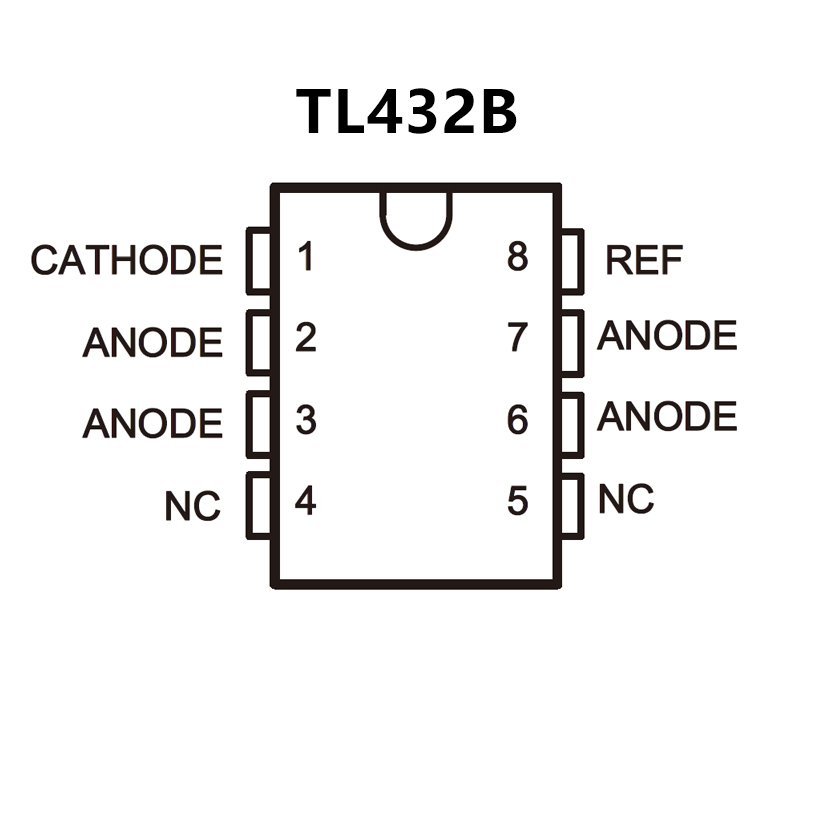

? The SGM431 is available in Green SOIC-8, SOT-23,
SOT-89-3, SOT-23-5 and SC70-6 Packages
? The SGM431B is available in Green SOIC-8, SOT-23,
SOT-89-3 and SOT-23-5 Packages
? Reference Voltage Tolerance at 25°C
0.5% (B Grade)
1% (A Grade)
2% (Standard Grade)
? Adjustable Output Voltage: Vref to 36 V
? Operation From ?40°C to 125°C
? Typical Temperature Drift (TL431B)
6 mV (C Temp)
14 mV (I Temp, Q Temp)
? Low Output Noise
? 0.2-Ω Typical Output Impedance
? Sink-Current Capability: 1 mA to 100 mA
