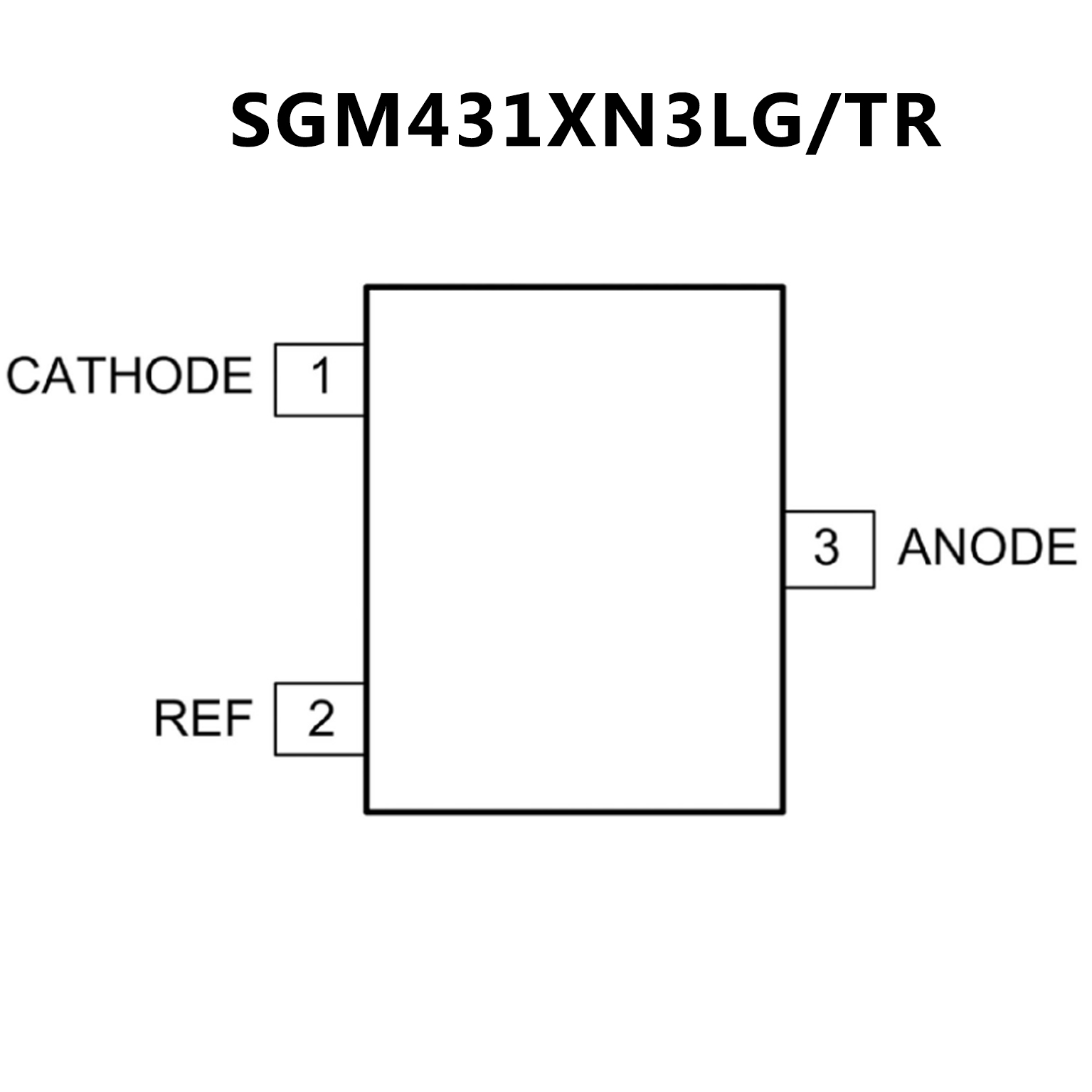

SGM431XN3LG.pdf? Reference Voltage Tolerance at +25℃:
SGM431: 1% (Standard Grade)
SGM431B: 0.5% (B Grade)
? Adjustable Output Voltage: VREF to 36V
? High Stability under Capacitive Load
? Typical Temperature Drift: 5mV
? Low Output Noise
? Typical Output Impedance: 0.1Ω
? Sink-Current Capability: 1mA to 100mA
? Operating Junction Temperature Range: -40℃ to +125℃
? The SGM431 is available in Green
SOIC-8, SOT-23, SOT-89-3, SOT-23-5 and
SC70-6 Packages
? The SGM431B is available in Green SOIC-8,
SOT-23, SOT-89-3 and SOT-23-5 Packages
? Programmable Precise Output Voltage from 2.5V to 36V
? High Stability under Capacitive Load
? Low Temperature Deviation: 4.5mV Typical
? Low Equivalent Full-range Temperature
Coefficient with 20PPM/oC Typical
? Low Dynamic Output Resistance: 0.15? Typical
? Sink Current Capacity from 1mA to 100mA
? Low Output Noise
? Wide Operating Range of -40 to +125oC
? Lead-Free Packages: SOT-23
Totally Lead-Free; RoHS Compliant (Notes 1 & 2)
? Lead-Free Packages, Available in “Green”
Molding Compound: SOT-23
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
