SGM431.pdf? Reference Voltage Tolerance at +25℃:
SGM431: 1% (Standard Grade)
SGM431B: 0.5% (B Grade)
? Adjustable Output Voltage: VREF to 36V
? High Stability under Capacitive Load
? Typical Temperature Drift: 5mV
? Low Output Noise
? Typical Output Impedance: 0.1Ω
? Sink-Current Capability: 1mA to 100mA
? Operating Junction Temperature Range:
-40℃ to +125℃

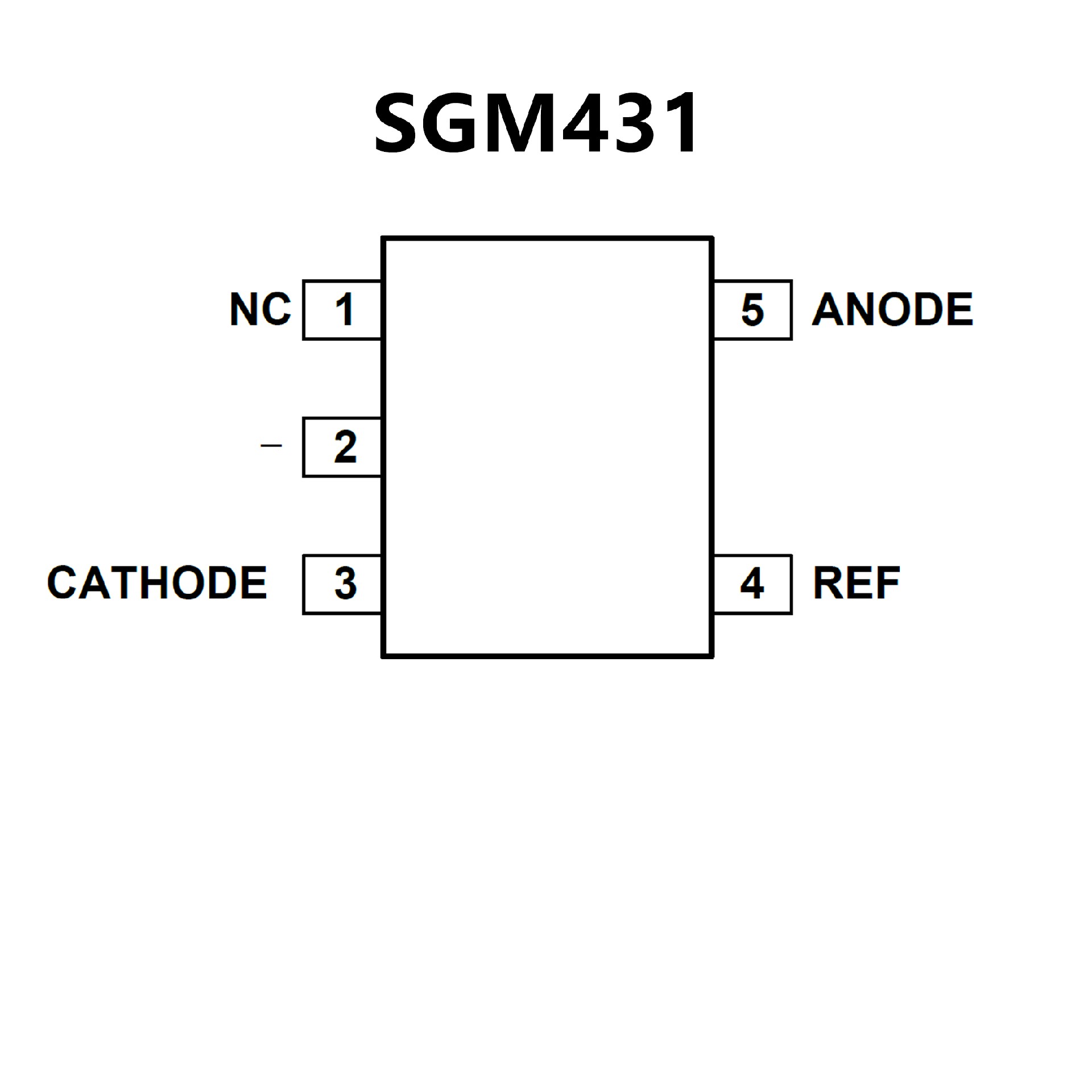

? The SGM431 is available in Green SOIC-8,
SOT-23, SOT-89-3, SOT-23-5 and SC70-6 Packages
? The SGM431B is available in Green SOIC-8,
SOT-23, SOT-89-3 and SOT-23-5 Packages
? Temperature Range: -40°C to +125°C
? Reference Voltage Tolerance at +25°C
? 0.5%: B Grade
? 1%: A Grade
? 0.2Ω Typical Output Impedance
? Sink Current Capability: 1mA to 100mA
? Adjustable Output Voltage: VREF to 20V
? Green Molding in SOT23 and SOT25
? Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
? Halogen and Antimony Free. “Green” Device (Note 3)

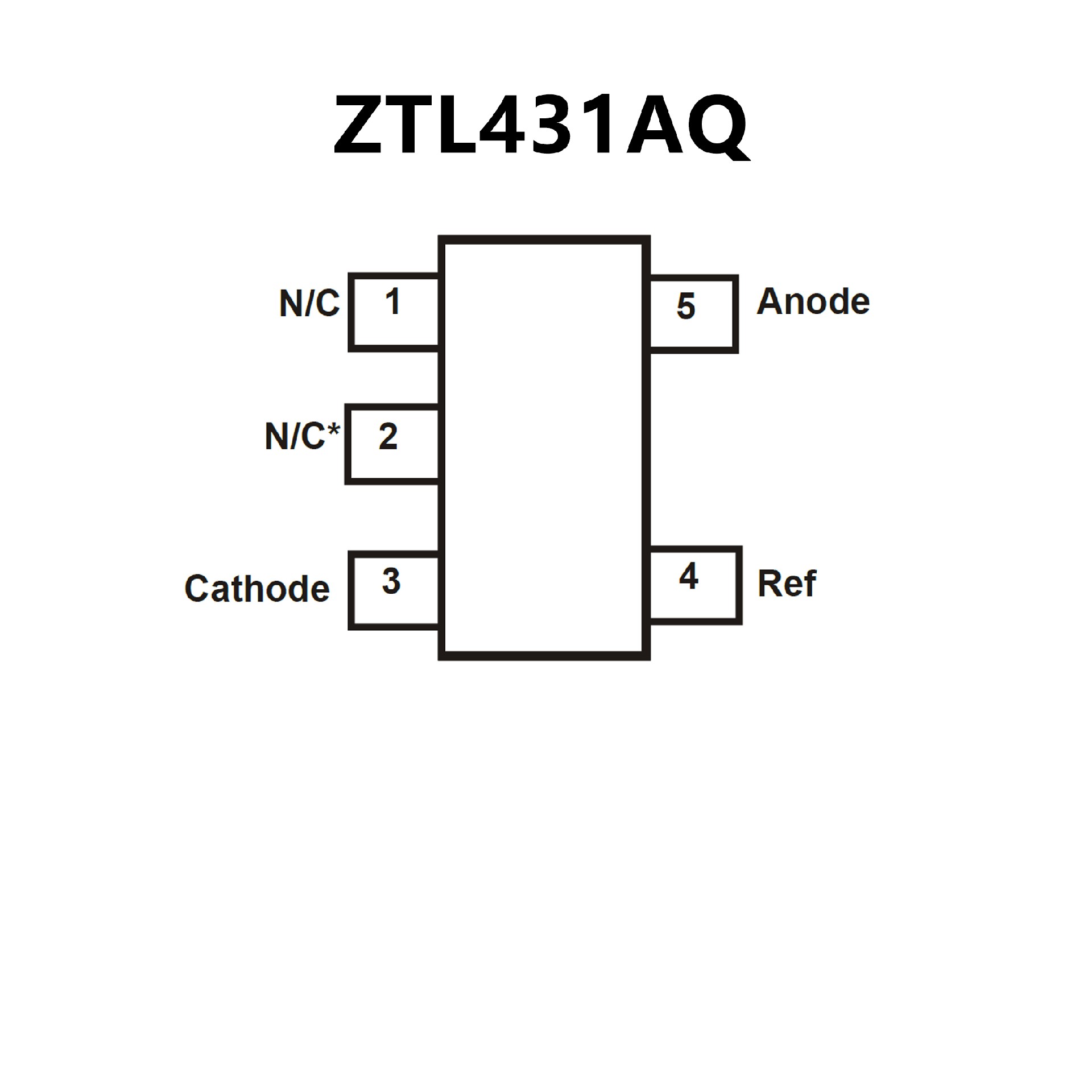

? The ZTL431AQ, ZTL431BQ, ZTL432AQ and ZTL432BQ are
suitable for automotive applications requiring specific
change control and are AEC-Q100 qualified, have a grade 1
temperature rating, are PPAP capable, and are manufactured
in IATF16949:2016 certified facilities.
