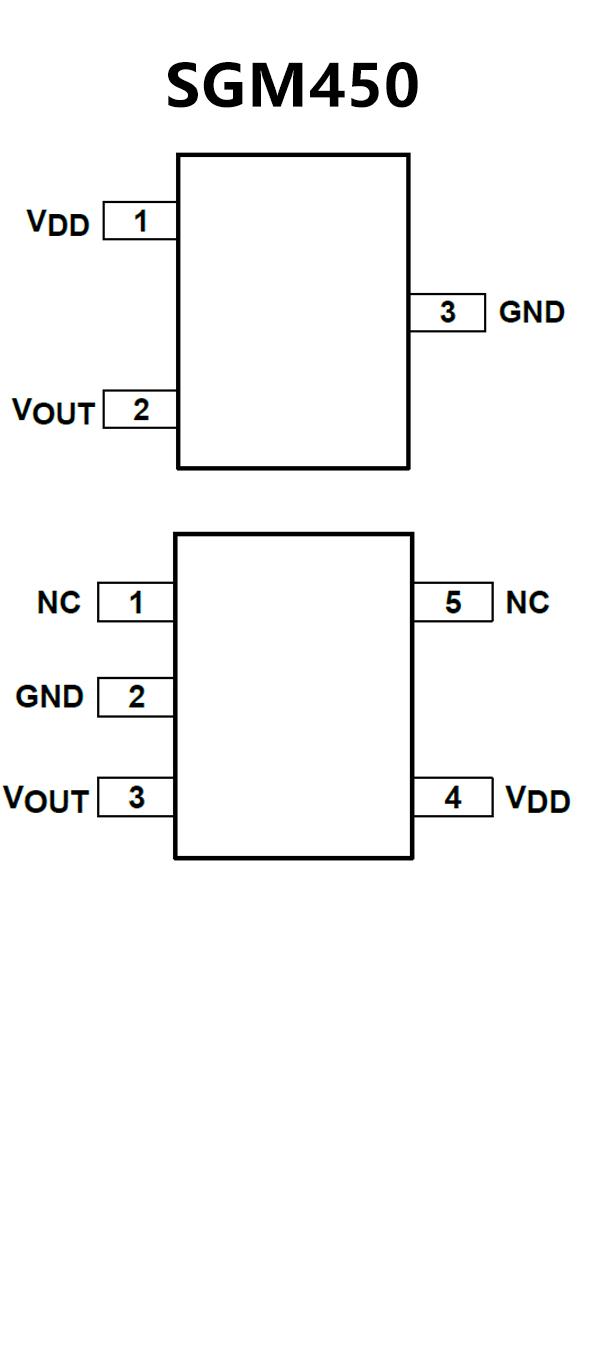

SGM450.pdf? Wide Temperature Measurement Range:
-40℃ to +150℃
? Temperature Accuracy:
±2°C (MAX): -40℃ to +150℃
? Positive Slope Sensor Gain: 10mV/°C (TYP)
? Output Voltage Offset: 500mV at 0℃ (TYP)
? Wide Power Supply Range: 2.3V to 5.5V
? Short-Circuit Protected Output
? Low Quiescent Current: 7.5μA (TYP)
? Class-AB Structure Output
? Able to Drive Capacitive Load up to 1000pF
? Available in Green SC70-5 and SOT-23 Packages
? Cost-Effective Alternative to Thermistors

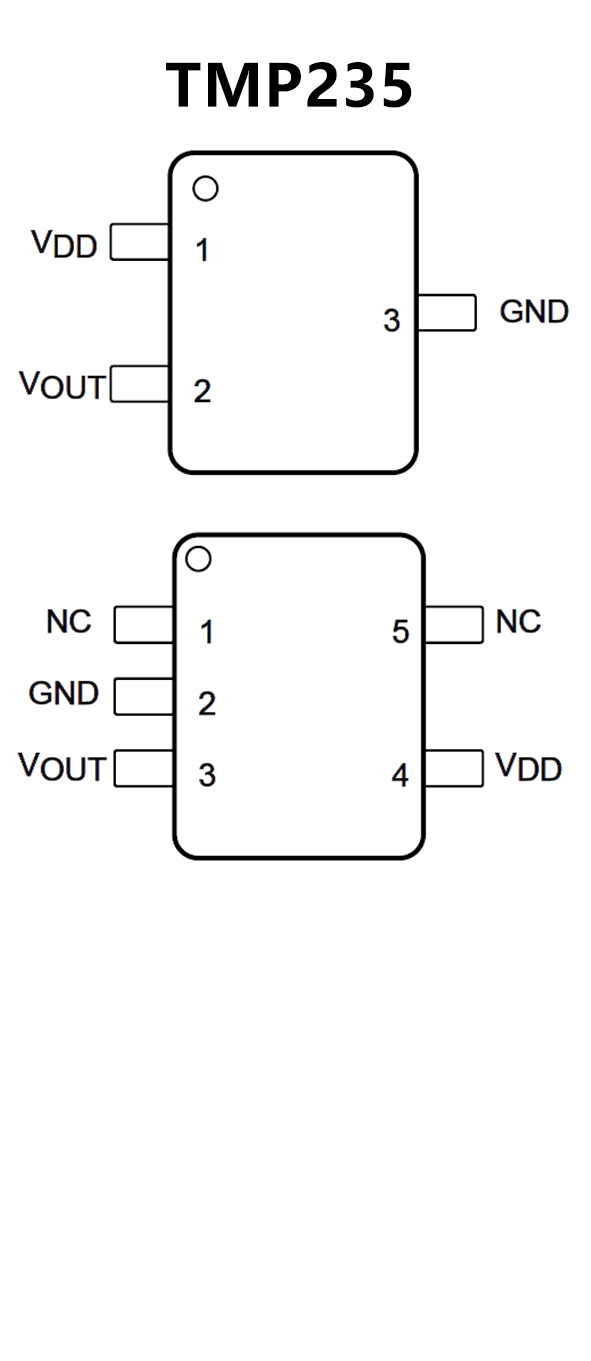

? Wide Temperature Measurement Range:
– –40°C to +150°C (TMP235)
– –10°C to +125°C (TMP236)
? Available in Accuracy Level Variants:
– ±0.5°C (Typical)
– ±1°C (Typical)
? Positive Slope Sensor Gain, Offset (Typical):
– 10 mV/°C, 500 mV at 0°C (TMP235)
– 19.5 mV/°C, 400 mV at 0°C (TMP236)
? Wide Operating Supply Voltage Range:
– 2.3 V to 5.5 V (TMP235)
– 3.1 V to 5.5 V (TMP236)
? Short Circuit Protected Output
? Low Power: 9 μA (Typical)
? Strong Output For Driving Up To 1000-pF Load
? Available Package Options:
– 5-Pin SC70 (DCK) Surface Mount
– 3-Pin SOT-23 (DBZ) Surface Mount
