Low Power, High Accuracy Analog Output Temperature Sensor,SGM450A2XC5G Replace TMP20AIDCKR.
SGM450A2XC5G
SGM450A2XC5G.pdf
SGM450A2XC5G.pdfFEATURES
? Wide Temperature Measurement Range:
-40℃ to +150℃
? Temperature Accuracy:
±2°C (MAX): -40℃ to +150℃
? Positive Slope Sensor Gain: 10mV/°C (TYP)
? Output Voltage Offset: 500mV at 0℃ (TYP)
? Wide Power Supply Range: 2.3V to 5.5V
? Short-Circuit Protected Output
? Low Quiescent Current: 7.5μA (TYP)
? Class-AB Structure Output
? Able to Drive Capacitive Load up to 1000pF
? Available in Green SC70-5 and SOT-23 Packages

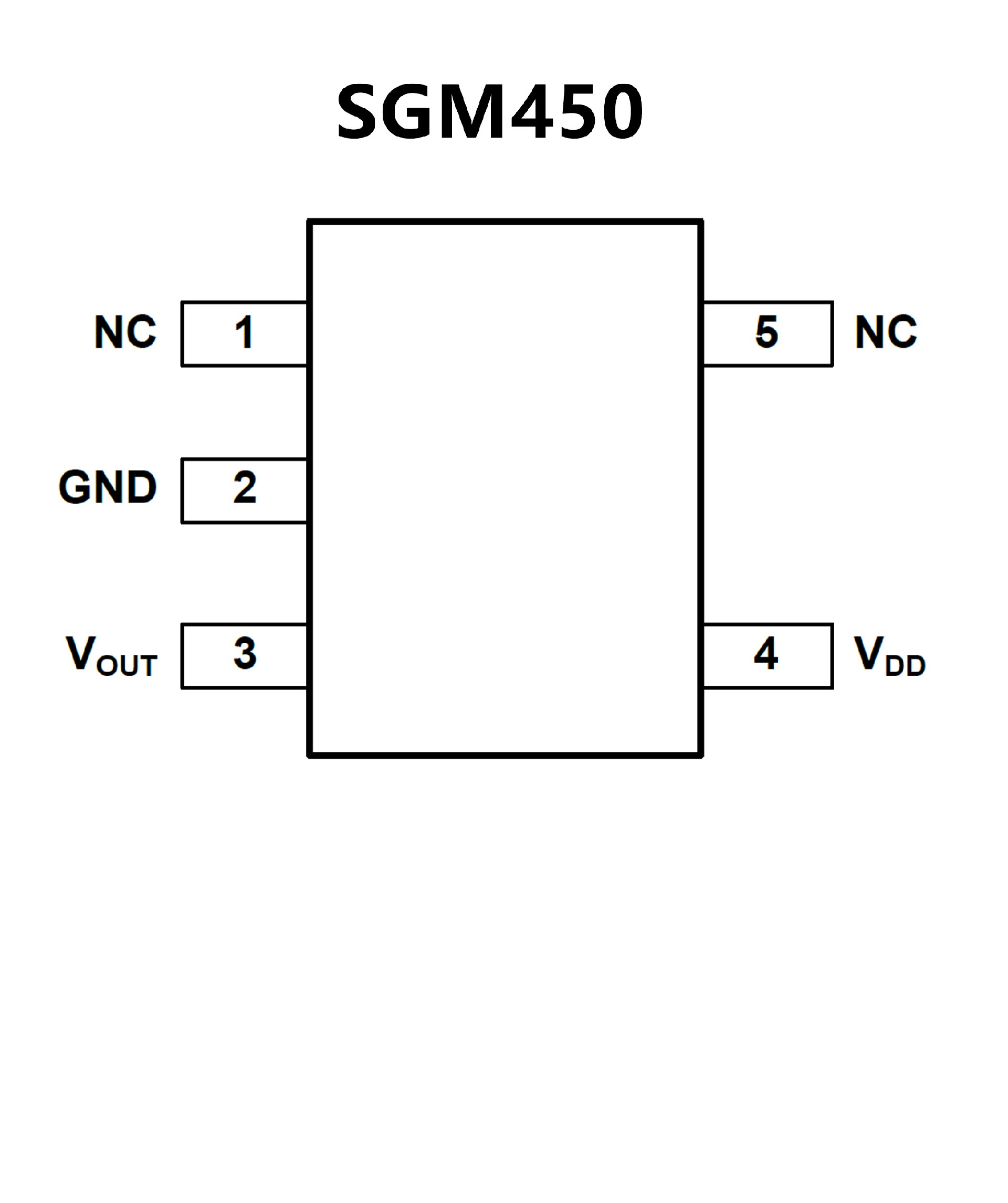

PIN CONFIGUTION
優勢替代
FEATURES
? ±2.5°C Accuracy from –55°C to +130°C
? Supply Voltage Range: 1.8 V to 5.5 V
? Low Power: 4 μA (Maximum)
? MicroSize Packages: SOT-563, SC70-5
? SC70 Pin-Compatible With LM20

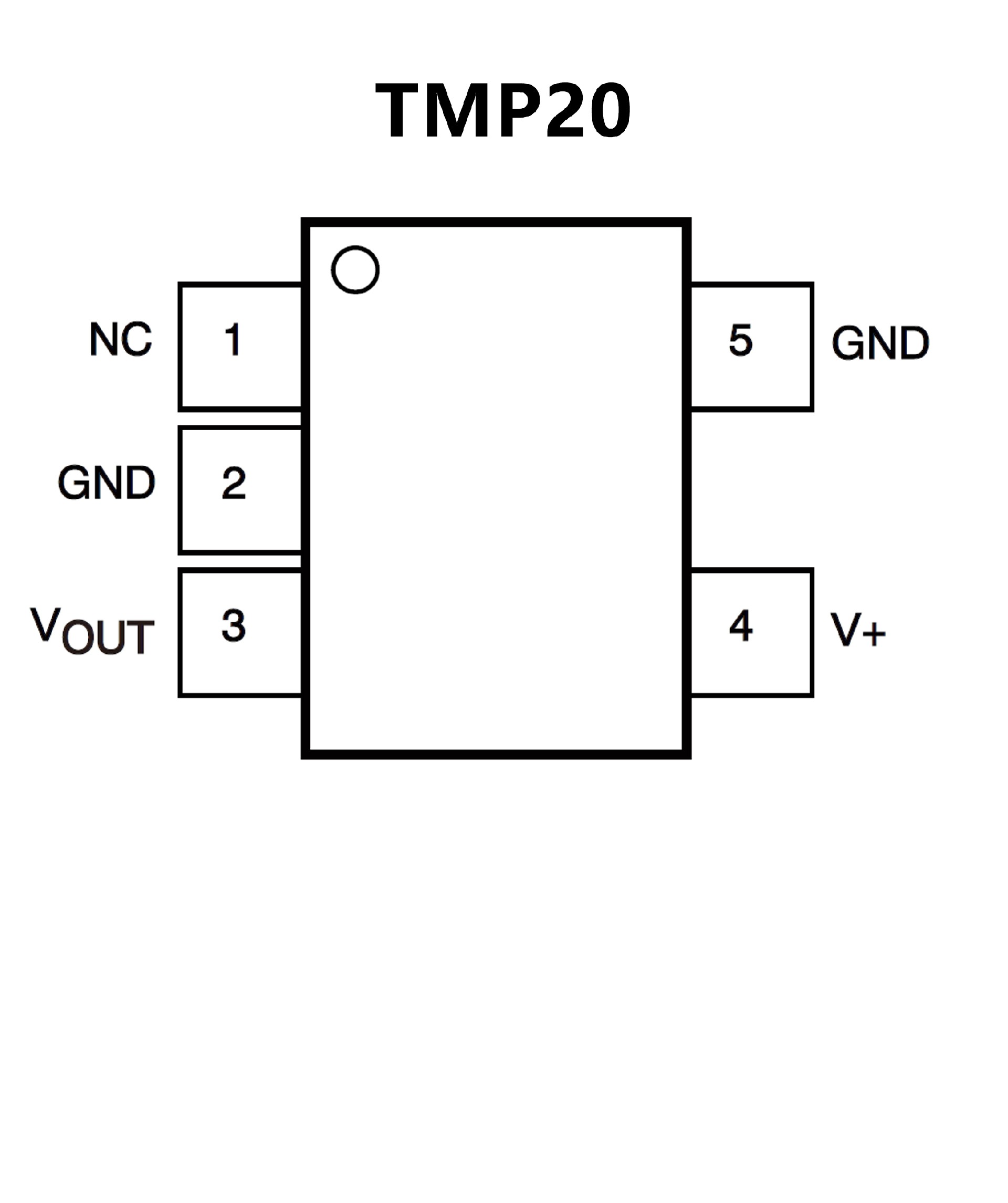

PIN CONFIGUTION
