5Ω RON SPST Switches,SGM4512YS16GTR-Replace-ADG452BRZ.
SGM4512YS16.pdf優(yōu)勢(shì)替代
FEATURES
? Low on resistance (4 Ω)
? On resistance flatness (0.2 Ω)
? 44 V supply maximum ratings
? ±15 V analog signal range
? Fully specified at ±5 V, 12 V, ±15 V
? Ultralow power dissipation (18 μW)
? ESD 2 kV
? Continuous current (100 mA)
? Fast switching times
? tON 70 ns
? tOFF 60 ns
? TTL-/CMOS-compatible
? Pin-compatible upgrade for ADG411/ADG412/ADG413
and ADG431/ADG432/ADG433

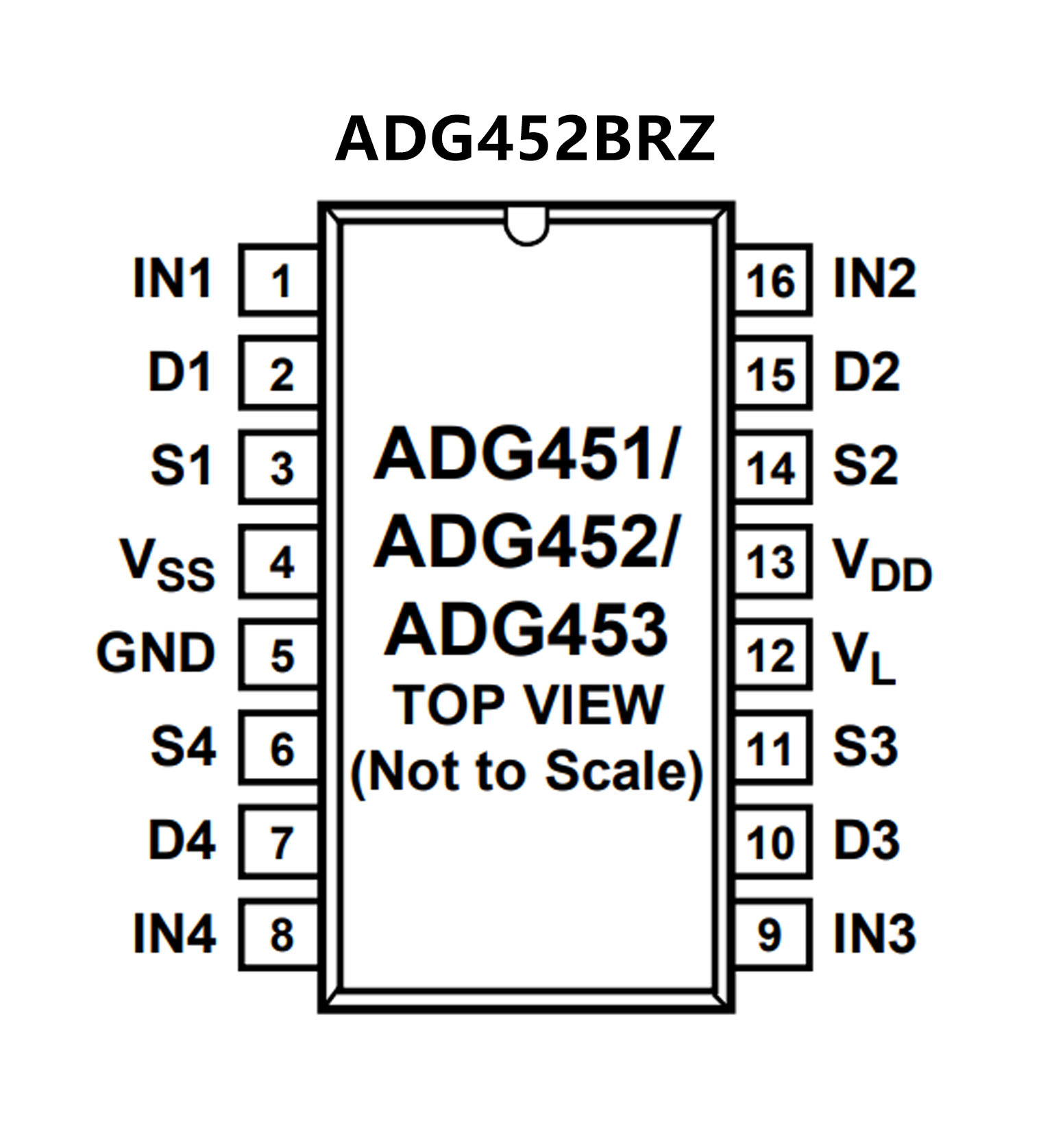

PIN CONFIGUTION
