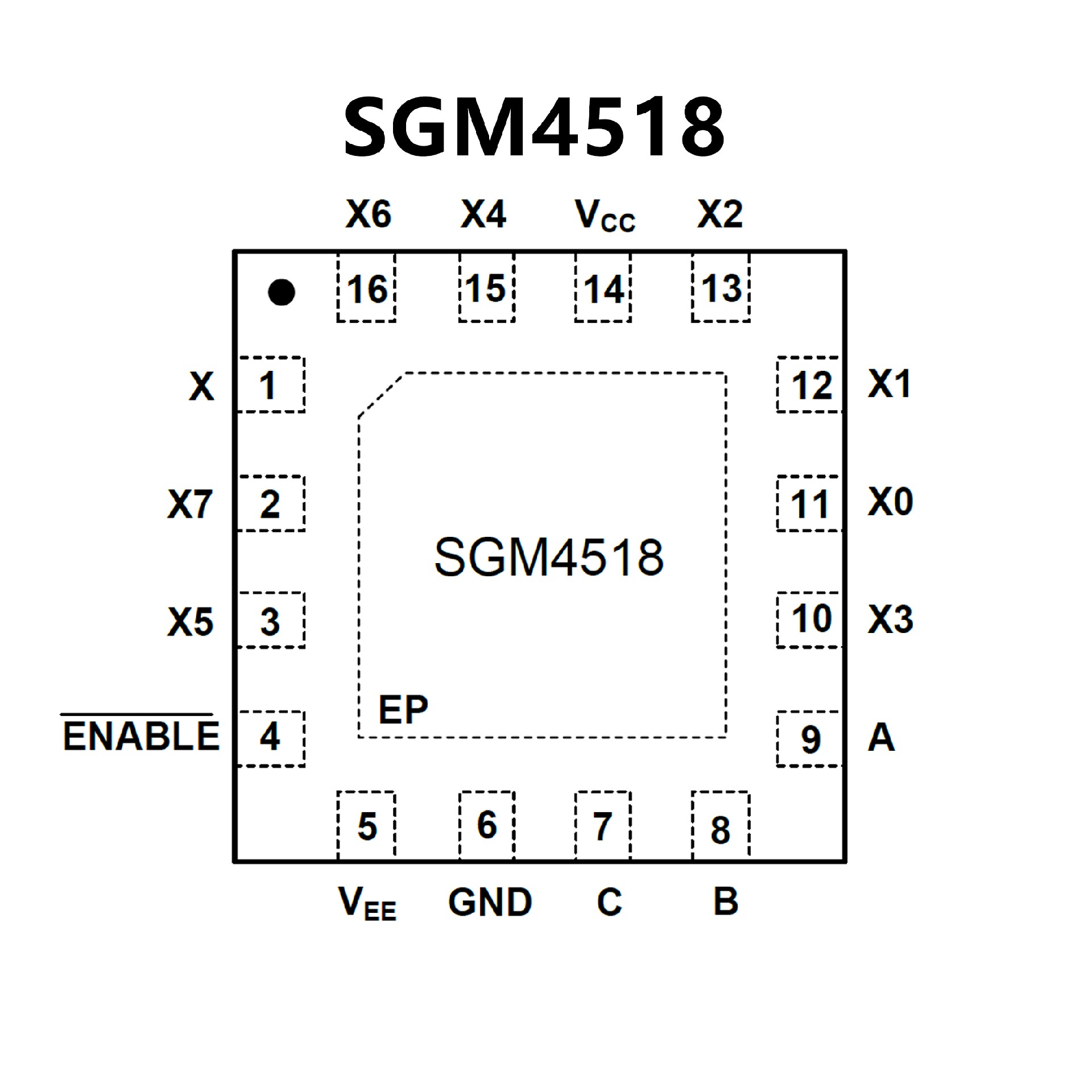

SGM4518.pdf? On-Resistance:
22Ω (TYP) with Single 36V Supply
? Low Off Leakage Current: 0.01μA (TYP)
? Low On Leakage Current: 0.01μA (TYP)
? ±3.2V to ±18V Dual-Supply Operation or
+3.2V to +36V Single-Supply Operation
? TTL/CMOS-Logic Compatible
? Low Distortion: 0.001% (TYP) (RL = 600Ω, f = 1kHz)
? High Off-Isolation: -85dB (TYP) (RL = 50Ω, f = 1MHz)
? -40℃ to +125℃ Operating Temperature Range
? Available in Green SOIC-16, SSOP-16,
TSSOP-16 and TQFN-3×3-16L Packages
? Analog Switch Voltage: 3.3V, 5 5V, 10V, ±5V
? Low ON ON-State Resistance Resistance:
typical 50 50Ω at Vs = ±4.5 4.5V or 9V
typical 6 60Ω at Vs = 4.54.5V
typical 30 300Ω at Vs = 3V
? Bandwidth: 200 MHz
? Fast switching times: t tON = 60ns, tOFF = 50ns
? BreakBreak-BeforeBefore-Make Switching
? Operation Temperature Range: –40°C to 125°C
