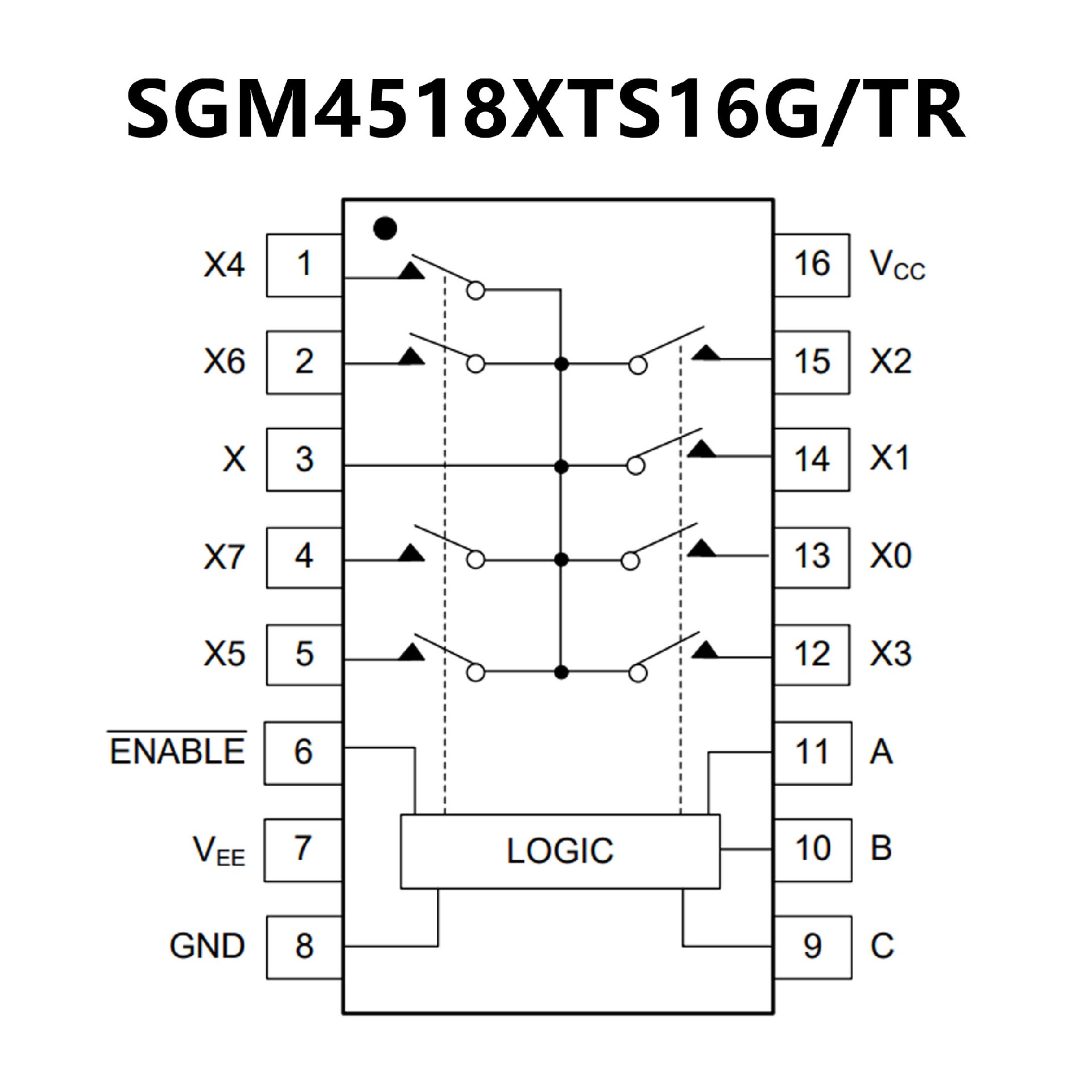

? On-Resistance:
22Ω (TYP) with Single 36V Supply
? Low Off Leakage Current: 0.01μA (TYP)
? Low On Leakage Current: 0.01μA (TYP)
? ±3.2V to ±18V Dual-Supply Operation
or+3.2V to +36V Single-Supply Operation
? TTL/CMOS-Logic Compatible
? Low Distortion: 0.001% (TYP) (RL = 600Ω, f = 1kHz)
? High Off-Isolation: -85dB (TYP) (RL = 50Ω, f = 1MHz)
? -40℃ to +125℃ Operating Temperature Range
? Available in Green SOIC-16, SSOP-16,
TSSOP-16and TQFN-3×3-16L Packages

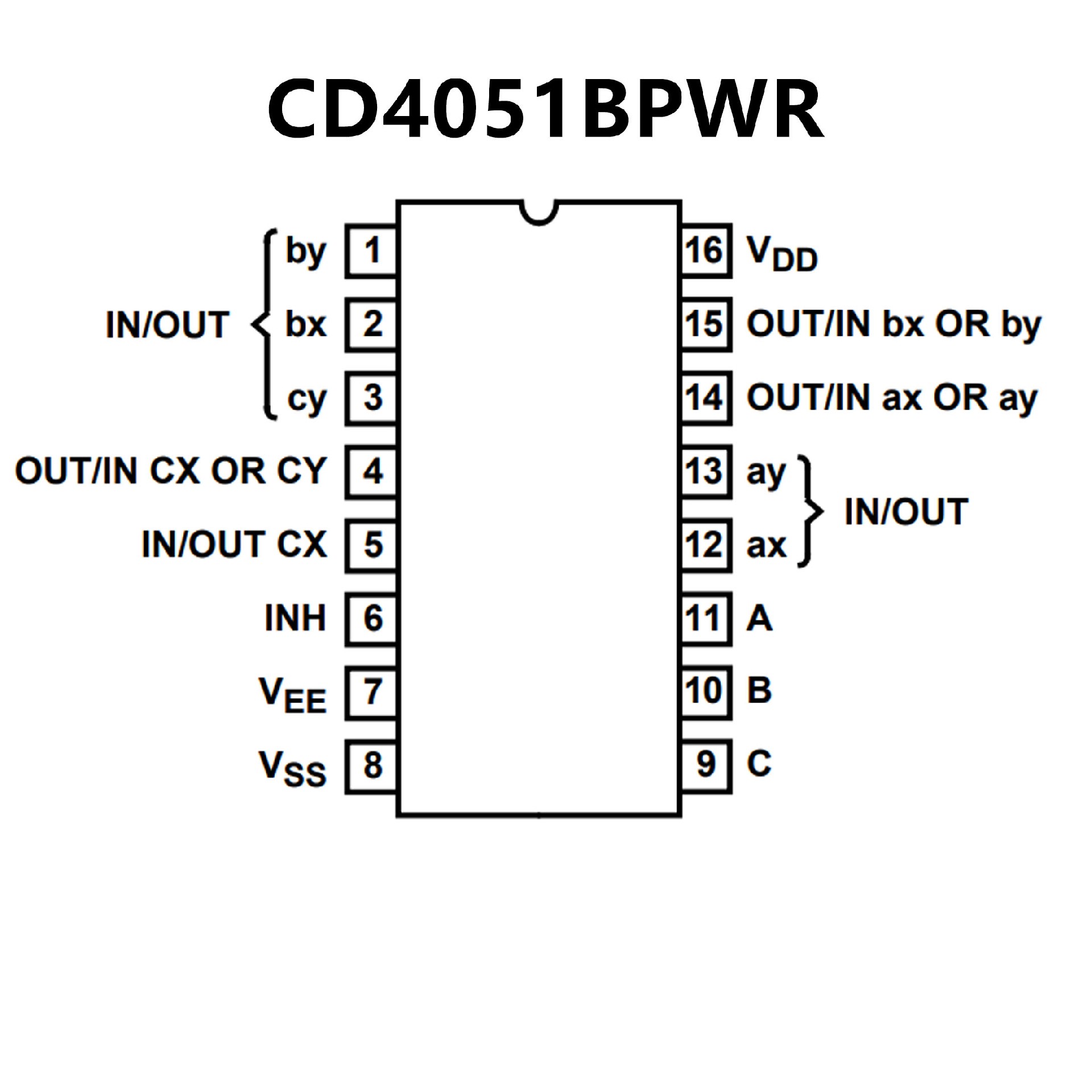

? Wide Range of Digital and Analog Signal Levels
Digital 3V to 20V- Analog≤20VP-P
? Low ON Resistance, 125? (Typ) Over 15VP-P
Signal InputRange for VDD-VEE = 18V
? High OFF Resistance, Channel Leakage of
±100pA (Typ)at VDD-VEE = 18V
? Logic-Level Conversion for Digital
Addressing Signals of3V to 20V (VDD-VSS = 3V to 20V)
to Switch AnalogSignals to 20VP-P (VDD-VEE = 20V)
? Matched Switch Characteristics,
rON = 5? (Typ) forVDD-VEE = 15V
? Very Low Quiescent Power
Dissipation Under All Digital-Control
Input and Supply Conditions, 0.2μW
(Typ) atVDD-VSS = VDD-VEE = 10V
? Binary Address Decoding on Chip
? 5V, 10V and 15V Parametric Ratings
? 10% Tested for Quiescent Current at 20V
? Maximum Input Current of 1μA at 18V Over Full
PackageTemperature Range, 100nA at 18V and 25°C
? Break-Before-Make Switching Eliminates ChannelOverlap
