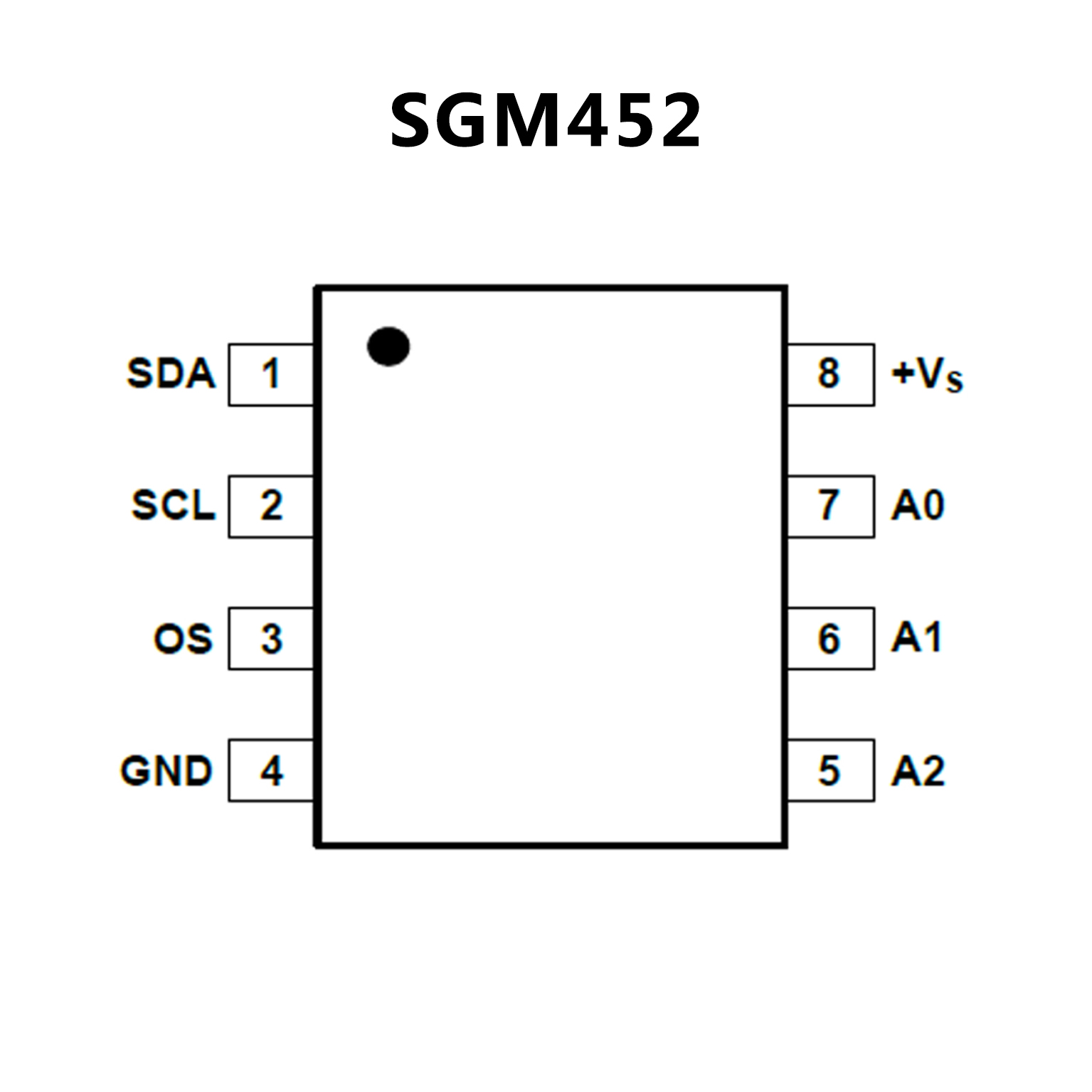

SGM452.pdf? No External Components Required
? Shutdown Mode to Minimize Power Consumption
? Up to Eight SGM452 Devices can be
Connected to a Single Bus
? Power-Up Defaults Permit Stand-Alone
Operation as Thermostat
? Power Supply Voltage Range: 2.7V to 5.5V
? Support 1.8V I2C Bus Voltage at 3.3V Power Supply
? Low Quiescent Current: 49μA (TYP)
? Shutdown Mode Current: 0.4μA (TYP)
? Temperature Accuracy:
55℃ to +125℃: ±1.2℃ (MAX)
? Operating Temperature Range: -55℃ to +125℃
? Available in Green SOIC-8 and MSOP-8 Packages
? TMP175: 27 Addresses

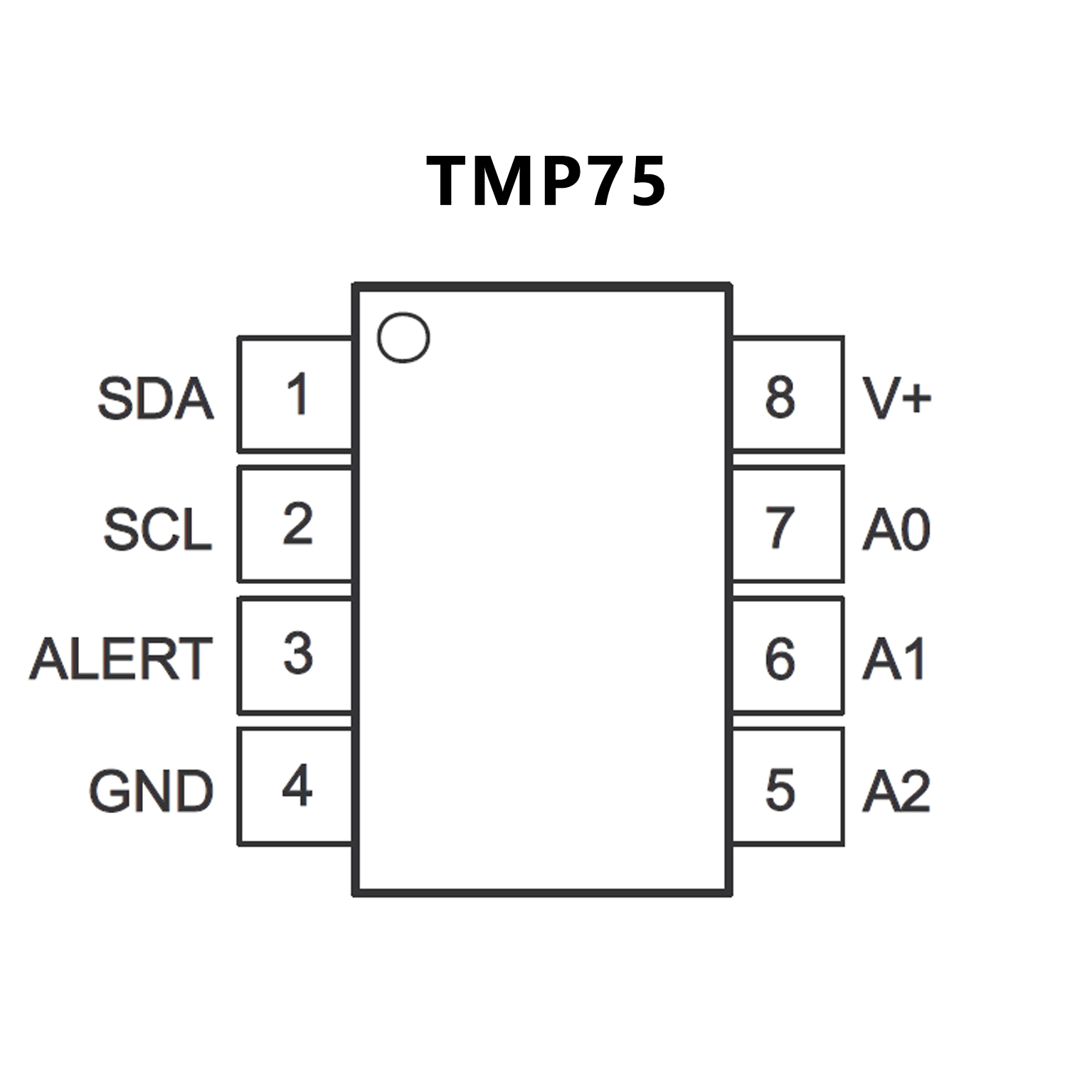

? TMP75: 8 Addresses, NIST Traceable
? Digital Output: SMBus?, Two-Wire, and
I2C Interface Compatibility
? Resolution: 9 to 12 Bits, User-Selectable
? Accuracy:
±1 °C (Typical) from ?40 °C to +125 °C
±2 °C (Maximum) from ?40 °C to +125 °C
? Low Quiescent Current: 50-μA, 0.1-μA Standby
? Wide Supply Range: 2.7 V to 5.5 V
? Small 8-Pin MSOP and 8-Pin SOIC Packages
