Dual supply translating transceiver; auto direction sensing;3-state, SGM4562Q Replace NXB0104PW-Q100.
SGM4562Q.pdf優勢替代
FEATURES
? Automotive product qualification in accordance with
AEC-Q100 (Grade 1)
? Specified from -40°C to +85°C and from -40°C to +125°C
? Wide supply voltage range:
? VCC(A): 1.2V to 3.6V and VCC(B): 1.65V to 5.5V
? IOFF circuitry provides partial Power-down mode operation
? Inputs accept voltages up to 5.5V
? ESD protection:
? HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds
2500V for A port
? HBM: ANSI/ESDA/JEDEC JS-001 class 3B exceeds
15000V for B port
? CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds
1000V
? Latch-up performance exceeds 100 mA per JESD
78B Class II
? Multiple package options
? DHVQFN package with Side-Wettable Flanks enabling
Automatic Optical Inspection (AOI) of solder joints

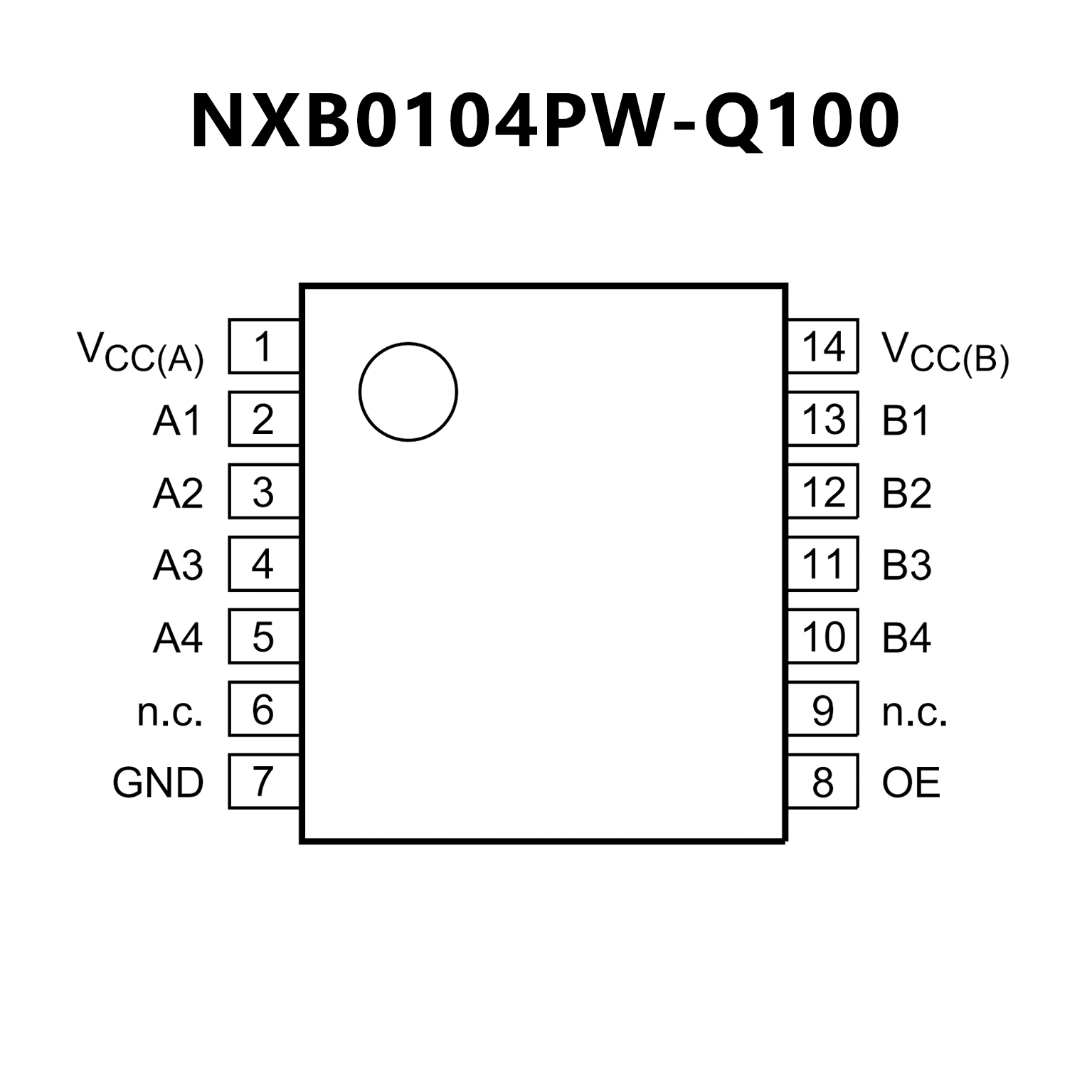

PIN CONFIGUTION
