Low Power, Low Supply Voltage,SOT Package, Digital Temperature Sensor, TMP102 P2P SGM457.
SGM457
SGM457.pdf
SGM457.pdfFEATURES
? 1.6Vto 5.5V Supply Voltage Range
? Temperature Accuracy:
– 40℃to +125℃: ±2℃(MAX)
? Operating Supply Current:14μA (TYP)
? ShutdownMode Current: 0.5μA (TYP)
? Resolution: 12 Bits
? Serial Control Bus is Compatible withTwo-Wire,I2C
? AvailableinaGreen SOT-563-6Package

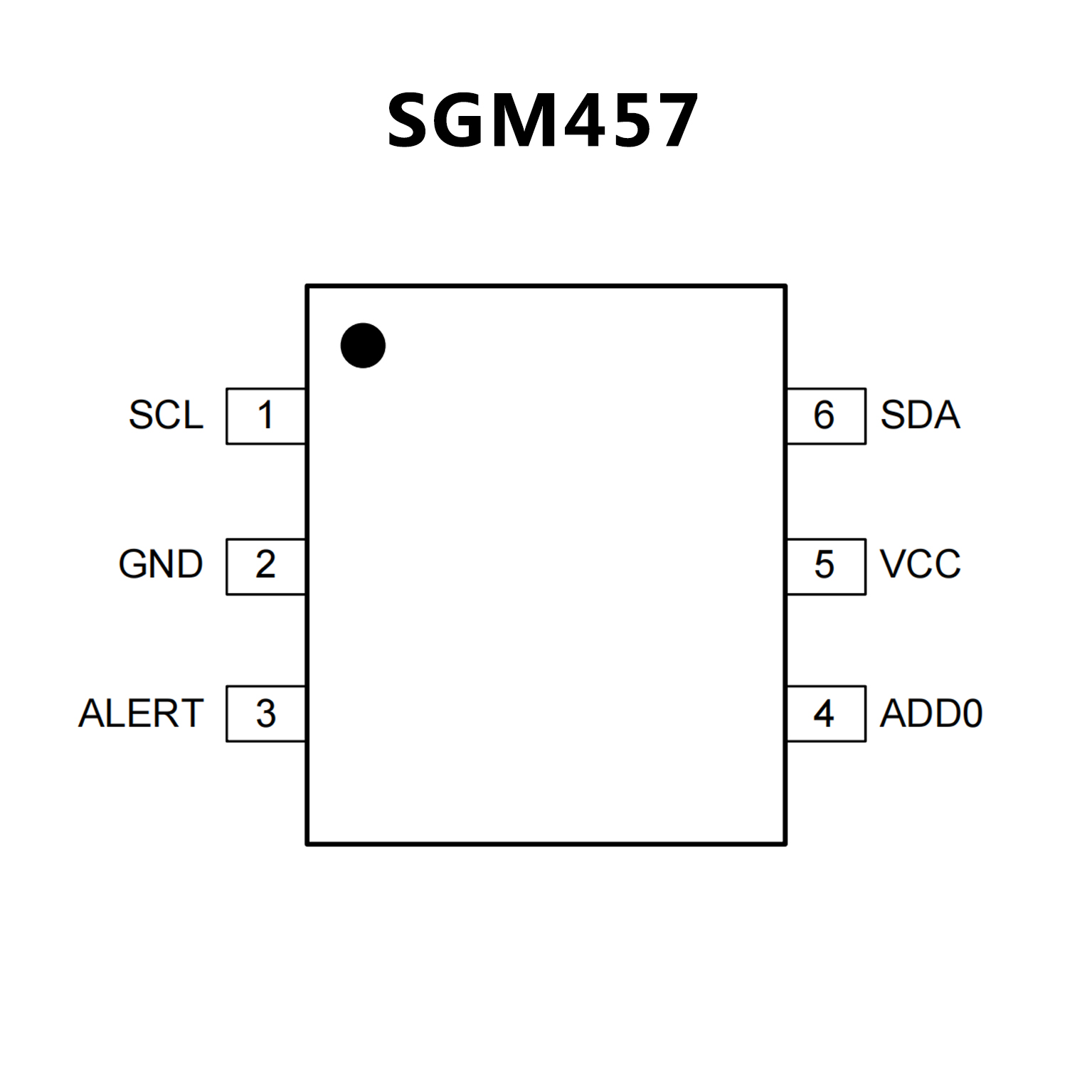

PIN CONFIGUTION
優(yōu)勢(shì)替代
FEATURES
? SOT563 Package (1.6-mm × 1.6-mm) is a 68%
Smaller Footprint than SOT-23
? Accuracy Without Calibration:
– 2.0°C (max) from –25°C to 85°C
– 3.0°C (max) from –40°C to 125°C
? Low Quiescent Current:
– 10-μA Active (max)
– 1-μA Shutdown (max)
? Supply Range: 1.4 to 3.6 V
? Resolution: 12 Bits
? Digital Output: SMBus, Two-Wire, and I2C
Interface Compatibility
? NIST Traceable

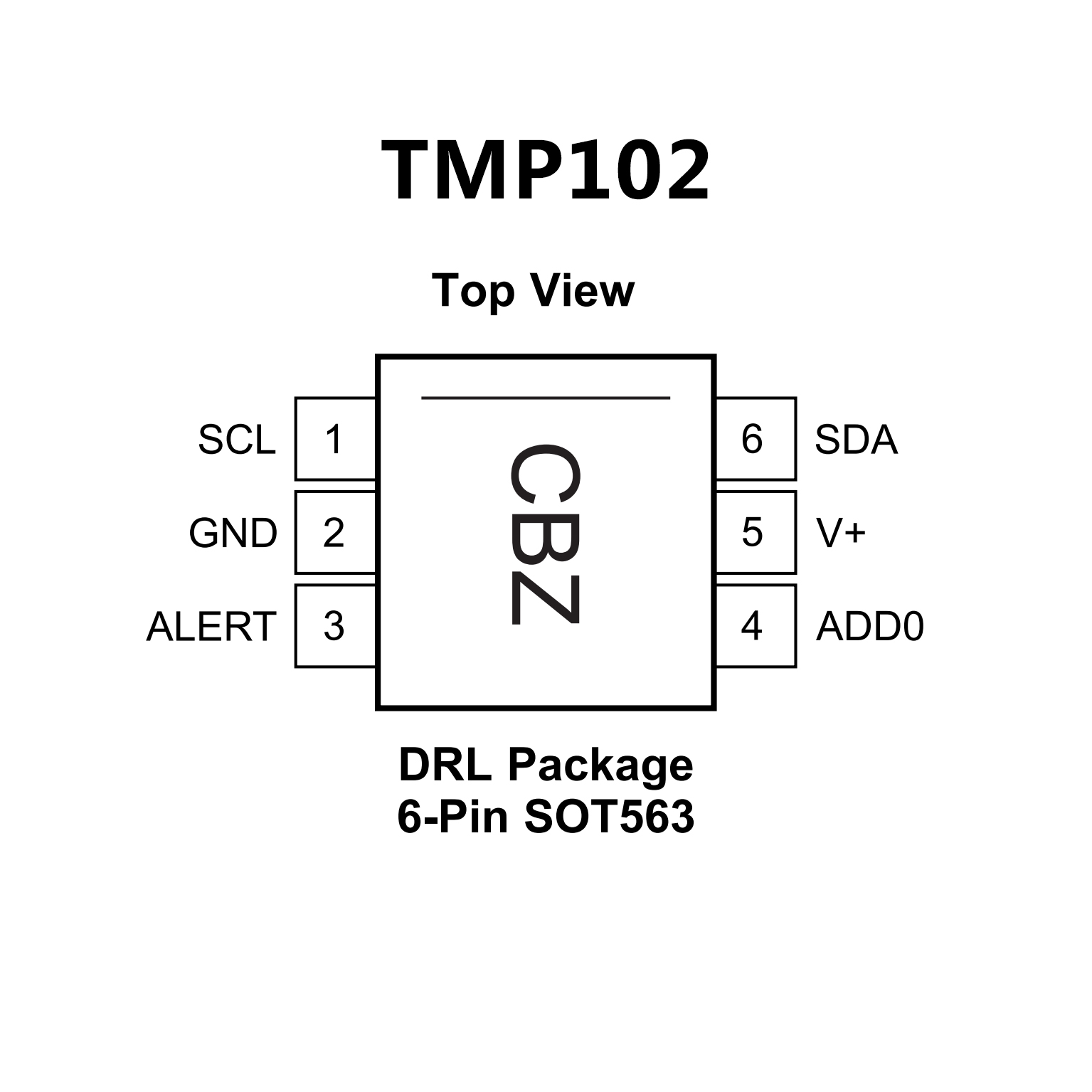

PIN CONFIGUTION
