SGM48017.pdf? Simple and Reliable
? 8A Source and 13A Sink Peak Currents
? Wide Supply Voltage Range: 4.5V to 20V
? Fast Propagation Delay: 30ns (TYP)
? Fast Rise Time: 7ns (TYP)
? Fast Fall Time: 8ns (TYP)
? Ringing Suppression
? Negative Voltage Capability on INx Pin:
-10V when (VDD - VINx) ≤ 22V
? Negative Voltage Capability on EN Pin:
-10V when (VDD - VEN) ≤ 22V
? Negative Voltage Capability on OUT Pin:
-5V (Pulse < 500ns)
? Comprehensive Protection Features
Thermal Shutdown Protection
Under-Voltage Lockout
Short-Circuit Protection
? -40℃ to +125℃ Operating Temperature Range

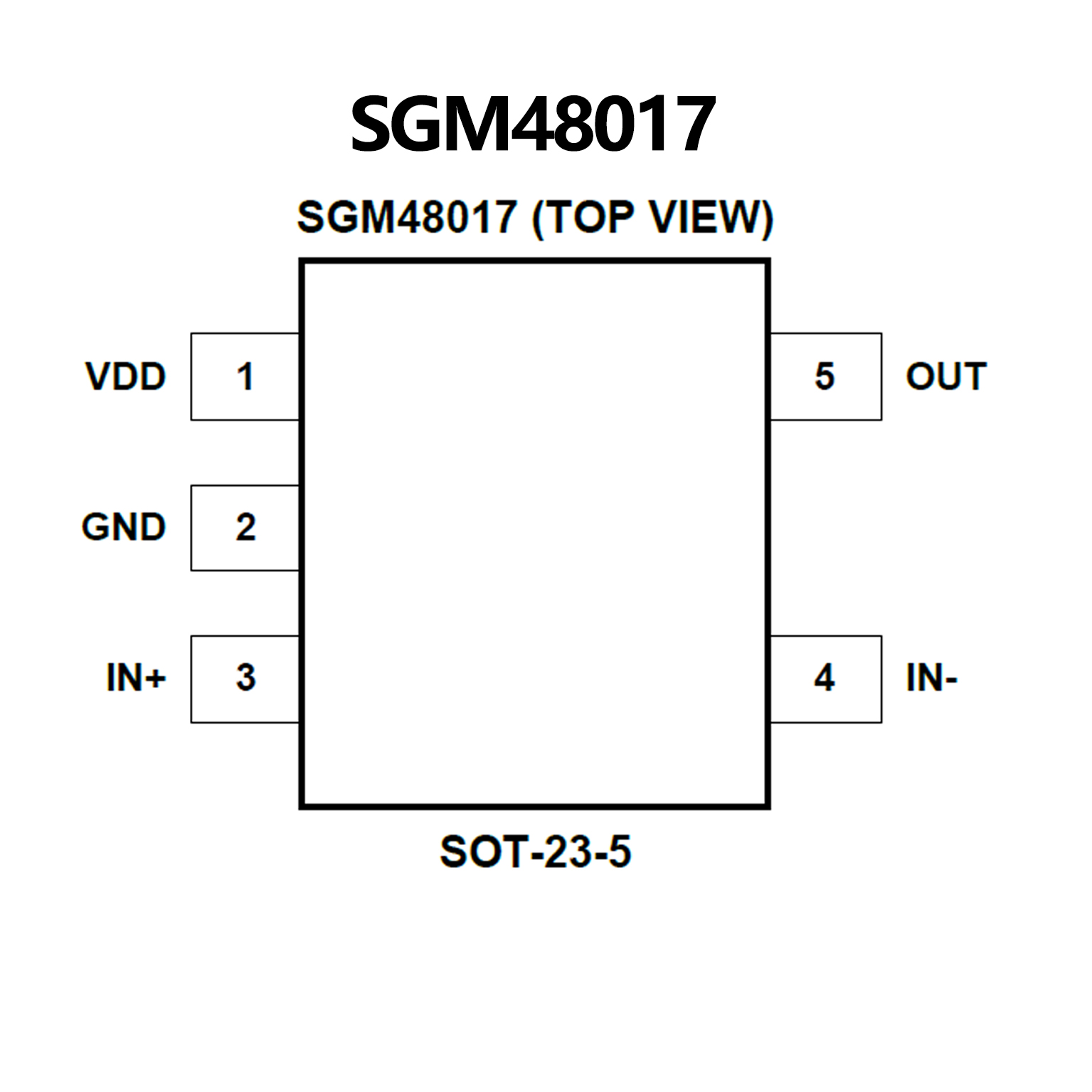

? Available in a Green SOT-23-5 Package
? High Peak Output Current: 1.5A
? Wide Input Supply Voltage Operating Range:
- 4.5V to 18V
? High Capacitive Load Drive Capability: 1000 pF
in 25 ns (typical)
? Short Delay Times: 40 ns (typical)
? Matched Rise and Fall Times
? Low Supply Current:
- With Logic ‘1’ Input – 4 mA
- With Logic ‘0’ Input – 400 μA
? Low Output Impedance: 7W
? Latch-Up Protected: Withstands 0.5A Reverse
Current
? Input Withstands Negative Inputs Up to 5V
? Electrostatic Discharge (ESD) Protected: 2.0 kV
? Space-saving 8-Pin MSOP and 8-Pin 6x5 DFN-S
Packages
