120V Boot, 4A Peak, High Frequency High-side and Low-side Driver, UCC27211 P2P SGM48211.
SGM48211
SGM48211.pdf
SGM48211.pdfFEATURES
? Wide Operating Range: 8V to 17V
? Drive Two N-MOSFETs Configured in Half Bridge
? Maximum Blocking Voltage: 120V DC
? 4A Peak Sink and Source Currents
? -10V to 20V Tolerance of Input Pins
? COMS/TTL Compatible Inputs
? 7ns (TYP) Rise Time and 5ns (TYP) Fall Time with
1000pF Load
? Propagation Delay Time: 34ns (TYP)
? Delay Matching: 4ns (TYP)
? Symmetrical UVLO for Both Two Channels
? -40℃ to +140℃ Operating Temperature Range
? Available in Green SOIC-8, SOIC-8 (Exposed Pad)
and TDFN-4×4-8AL Packages

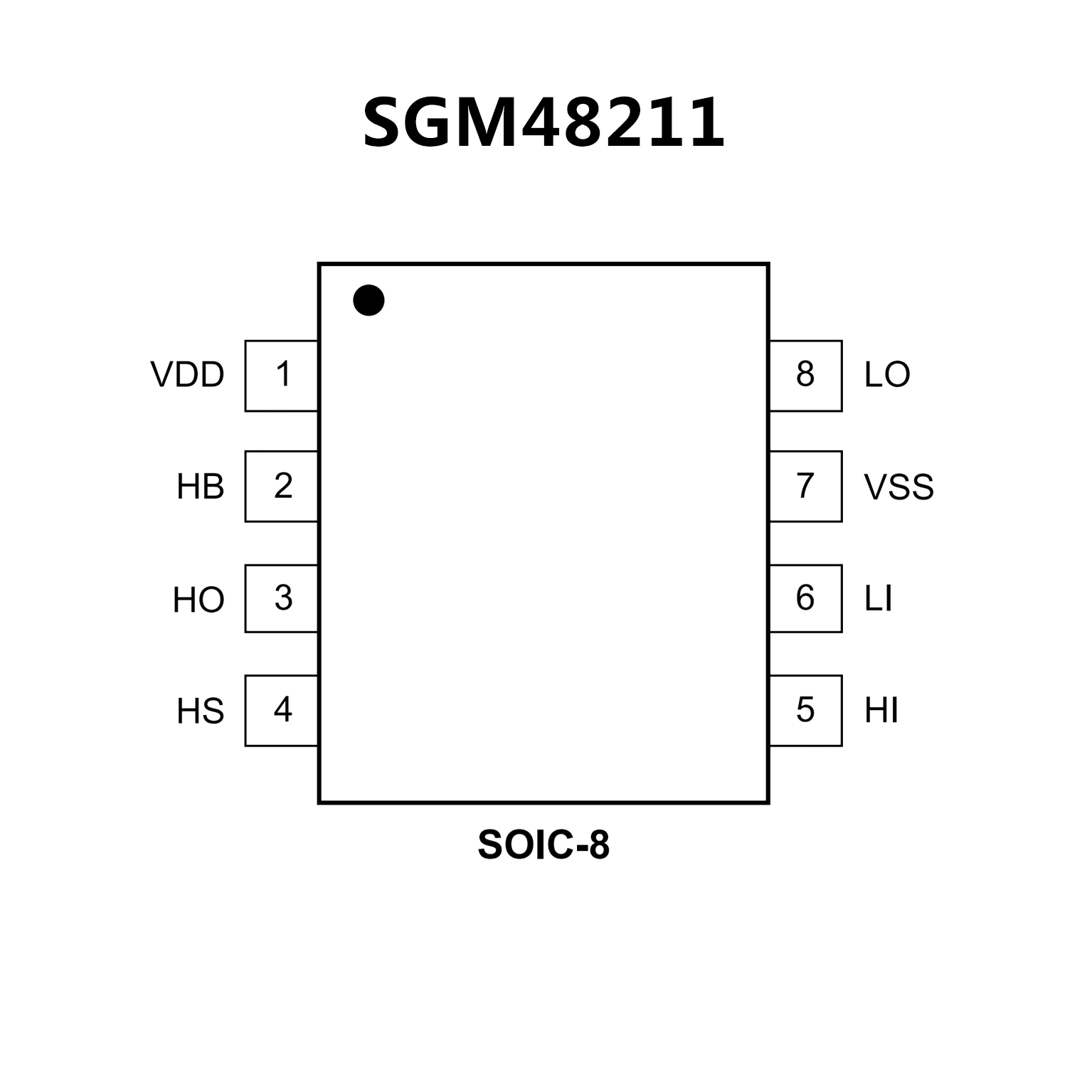

PIN CONFIGUTION
優勢替代
FEATURES
? Drives Two N-Channel MOSFETs in High-Side
and Low-Side Configuration With Independent
Inputs
? Maximum Boot Voltage 120-V DC
? 4-A Sink, 4-A Source Output Currents
? 0.9-Ω Pullup and Pulldown Resistance
? Input Pins Can Tolerate –10 V to 20 V and Are
Independent of Supply Voltage Range
? TTL or Pseudo-CMOS Compatible Input Versions
? 8-V to 17-V VDD Operating Range, (20-V
Absolute Maximum)
? 7.2-ns Rise and 5.5-ns Fall Time With 1000-pF
Load
? Fast Propagation Delay Times (18 ns Typical)
? 2-ns Delay Matching
? Symmetrical Undervoltage Lockout for High-Side
and Low-Side Driver
? All Industry Standard Packages Available (SOIC-
8, PowerPAD? SOIC-8, 4-mm × 4-mm SON-8
and 4-mm × 4-mm SON-10)
? Specified from –40 to 140 °C

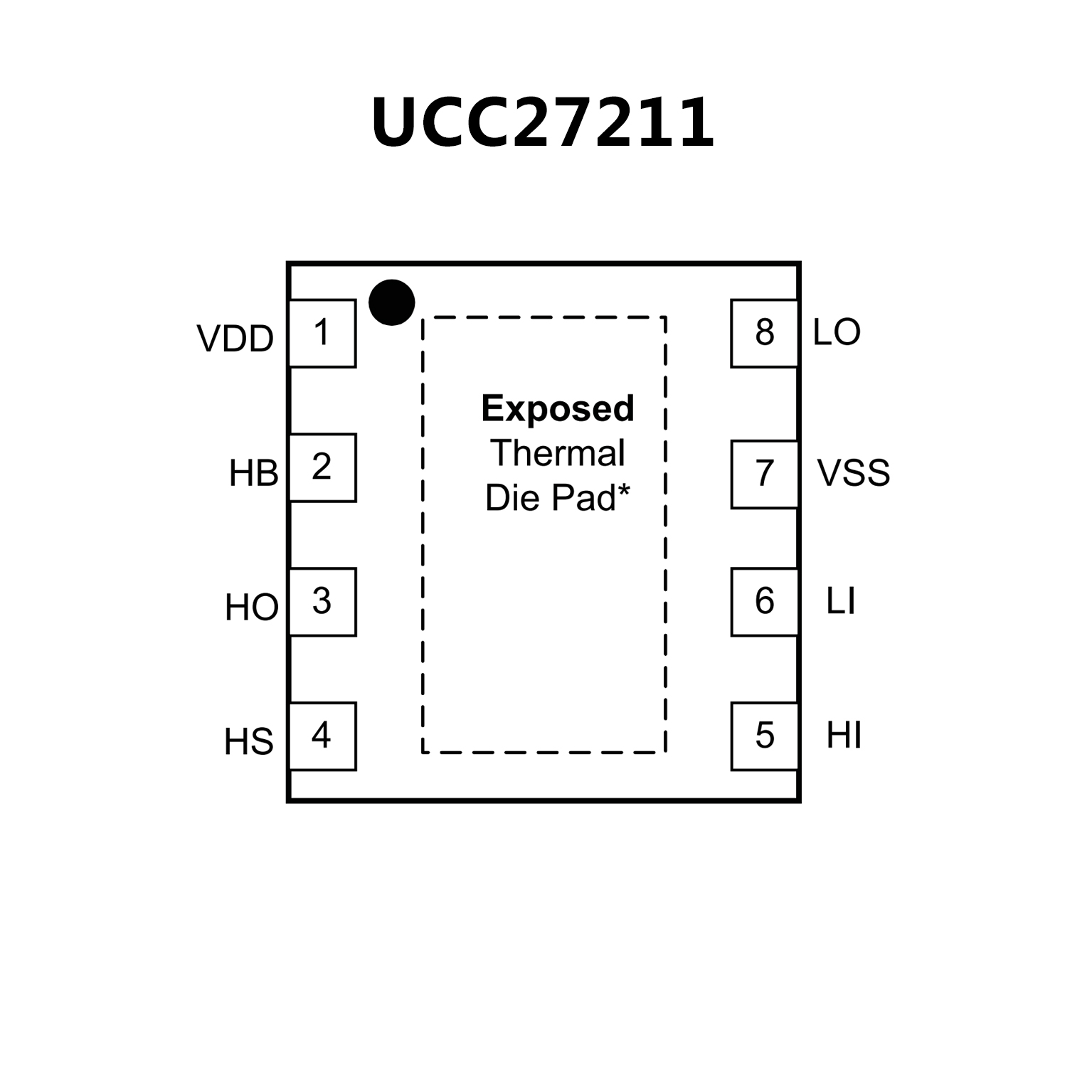

PIN CONFIGUTION
