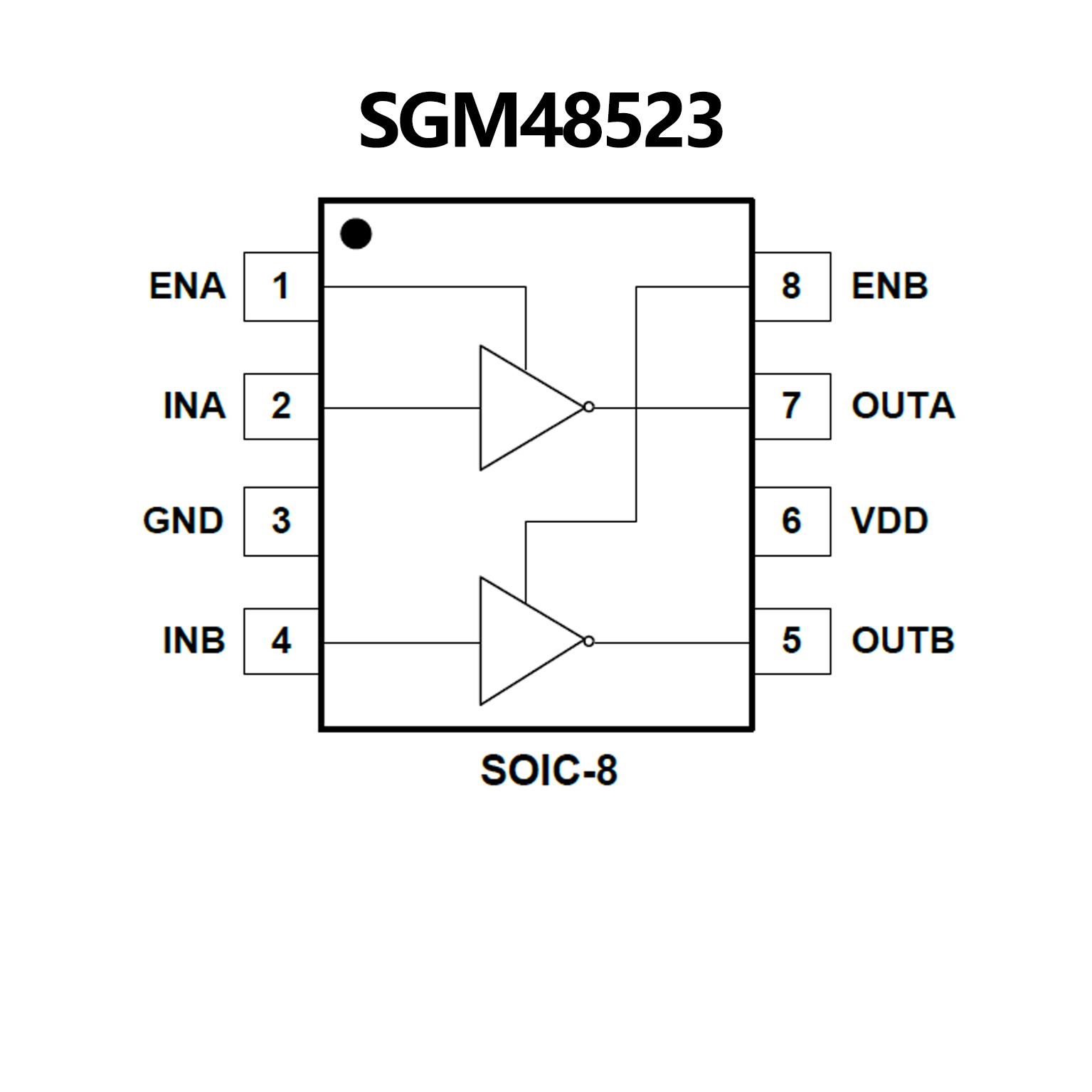

SGM48523.pdf? Two Independent Gate Drive Channels
? 4.5V to 18V Single Supply Range (VDD)
? 5A Peak Source/Sink Pulse Current Drive
? Independent Enable Pin for Each Channel
? TTL and CMOS Compatible Logic Threshold
? Logic Levels Independent of Supply Voltage
? Hysteretic Input Logic for High Noise Immunity
? Outputs are Logic Low when Inputs are Floating
? Negative Voltage Handling Capability:-8V DC at
Inputs-2V, 200ns Pulse for Outputs (OUTx)
? Glitch-Free Operation at Power-Up and Power-
Down: Outputs Pulled Low during Supply UVLO
? Fast Propagation Delays: 18ns (TYP)
? Fast Rise Time: 8ns (TYP)
? Fast Fall Time: 8ns (TYP)
? Delay Matching between Two Channels: 1ns (TYP)
? Channels can be Paralleled for Higher Drive Current
? -40℃ to +140℃ Operating Temperature Range
? Available in Green SOIC-8, MSOP-8 (Exposed Pad)
and TDFN-3×3-8L Packages
? Industry-Standard Pinout

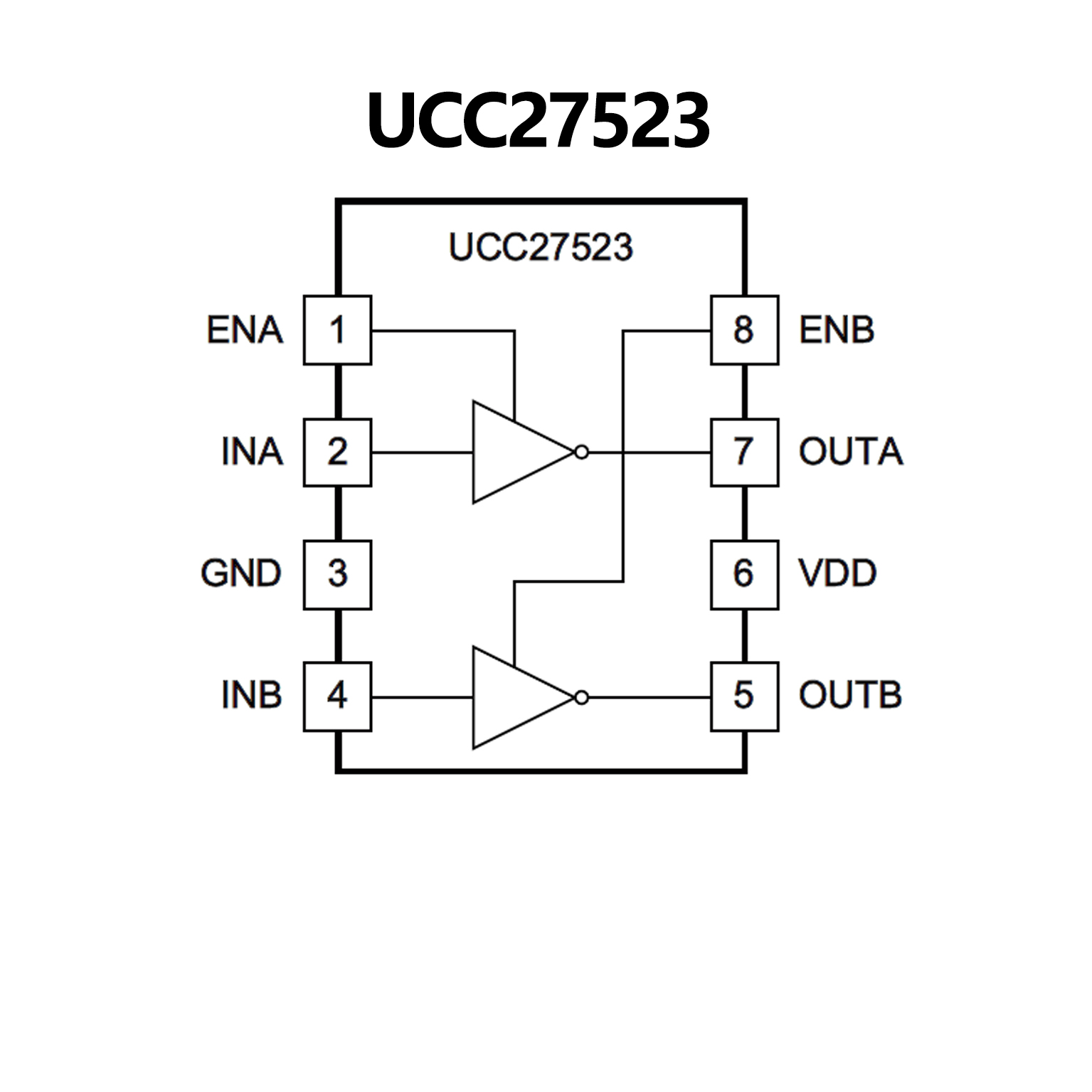

? Two Independent Gate-Drive Channels
? 5-A Peak Source and Sink-Drive Current
? Independent-Enable Function for Each Output
? TTL and CMOS Compatible Logic Threshold
? Independent of Supply Voltage
? Hysteretic-Logic Thresholds for High Noise Immunity
? Inputs and Enable Pin-Voltage Levels
Not Restricted by VDD Pin Bias Supply Voltage
? 4.5-V to 18-V Single-Supply Range
? Outputs Held Low During VDD-UVLO, (Ensures
Glitch-Free Operation at Power up and Power Down)
? Fast Propagation Delays (13-ns Typical)
? Fast Rise and Fall Times (7-ns and 6-ns Typical)
? 1-ns Typical Delay Matching Between Two Channels
? Two Outputs are in Parallel for Higher Drive Current
? Outputs Held Low When Inputs Floating
? PDIP (8), SOIC (8), MSOP (8) PowerPAD? and
? 3-mm × 3-mm WSON-8 Package Options
? Operating Temperature Range of –40°C to 140°C
