SGM48524.pdf? Two Independent Gate Drive Channels
? 5A Source and 5A Sink Peak Currents
? Wide Supply Voltage Range: 4.5V to 18V
? TTL and CMOS Compatible Logic Threshold
? Logic Levels Independent of Supply Voltage
? Hysteretic Input Logic for High Noise Immunity
? Outputs Held Low When Inputs are Floating
? Fast Propagation Delays: 18ns (TYP)
? Fast Rise Time: 7ns (TYP)
? Fast Fall Time: 7ns (TYP)
? Ringing Suppression
? Negative Voltage Capability on INx Pins:
-10V when (VDD - VINx) ≤ 20V
? Negative Voltage Capability on ENx Pins:
-10V when (VDD - VENx) ≤ 20V
? Negative Voltage Capability on OUTx Pin:
-2V (Pulse < 200ns)
? Comprehensive Protection Features
Thermal Shutdown Protection
Under-Voltage Lockout
Short-Circuit Protection
? -40℃ to +125℃ Operating Temperature Range

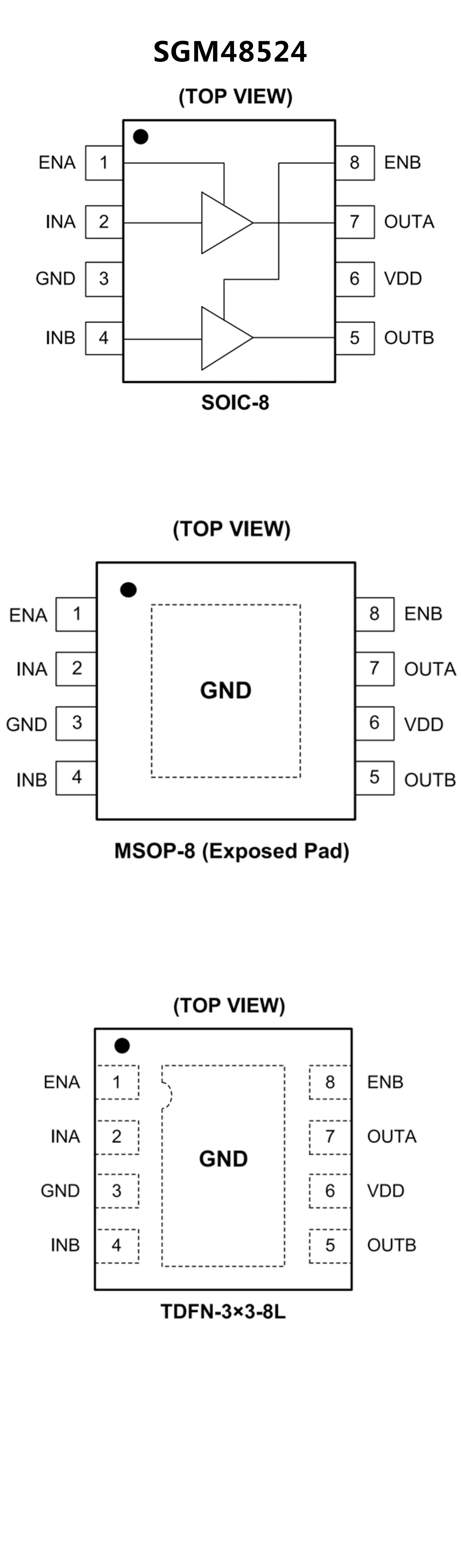

? Available in Green SOIC-8, MSOP-8 (Exposed
Pad) and TDFN-3×3-8L Packages
? Industry-Standard Pinout
? Two Independent Gate-Drive Channels
? 5-A Peak Source and Sink-Drive Current
? Independent-Enable Function for Each Output
? TTL and CMOS Compatible Logic Threshold
? Independent of Supply Voltage
? Hysteretic-Logic Thresholds for High Noise Immunity
? Inputs and Enable Pin-Voltage Levels
Not Restricted by VDD Pin Bias Supply Voltage
? 4.5-V to 18-V Single-Supply Range
? Outputs Held Low During VDD-UVLO, (Ensures
Glitch-Free Operation at Power up and Power Down)
? Fast Propagation Delays (13-ns Typical)
? Fast Rise and Fall Times (7-ns and 6-ns Typical)
? 1-ns Typical Delay Matching Between Two Channels
? Two Outputs are in Parallel for Higher Drive Current
? Outputs Held Low When Inputs Floating
? PDIP (8), SOIC (8), MSOP (8) PowerPAD? and
? 3-mm × 3-mm WSON-8 Package Options
? Operating Temperature Range of –40°C to 140°C
