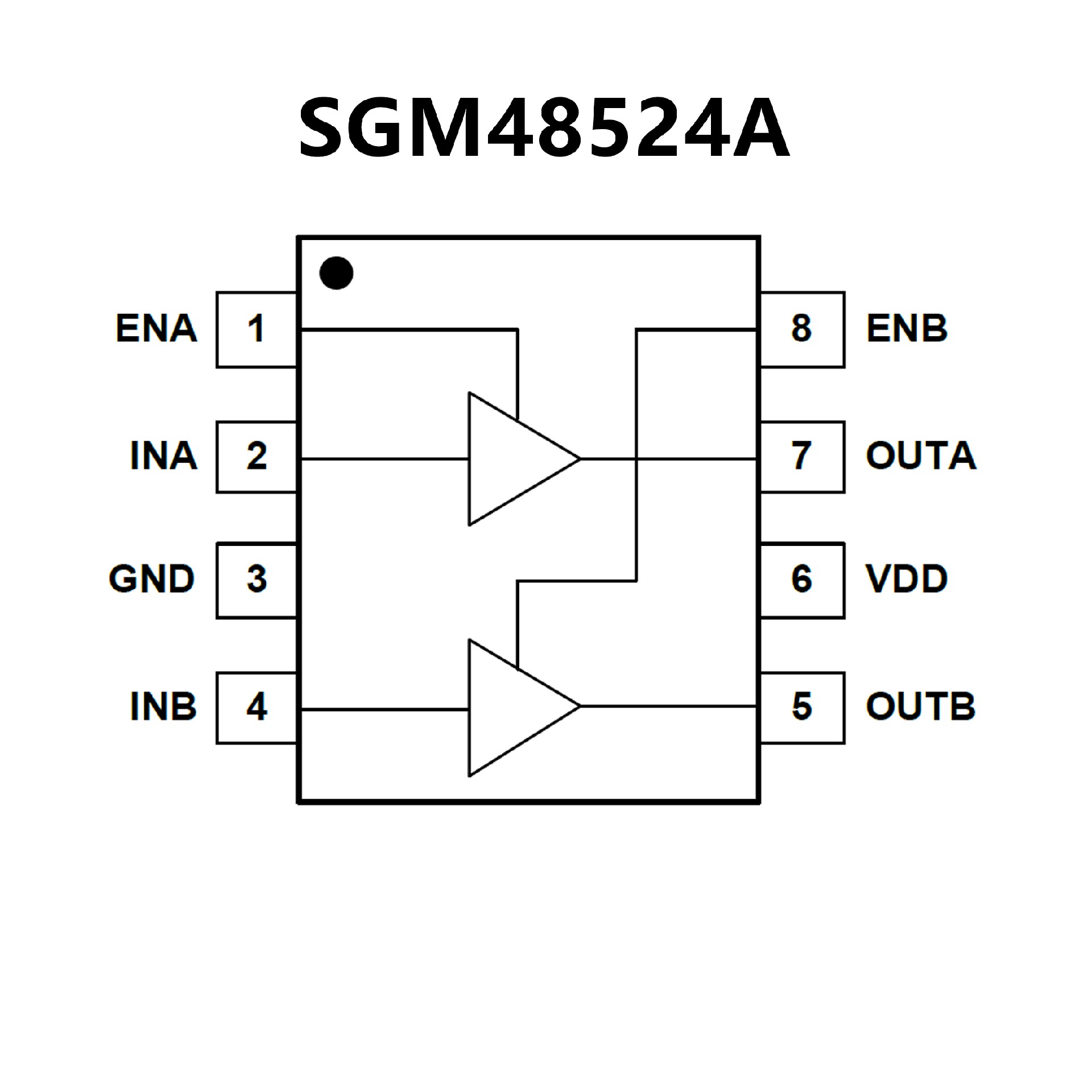

SGM48524A.pdf? Two Independent Gate Drive Channels
? 4.5V to 18V Single Supply Range (VDD)
? 5A Peak Source/Sink Pulse Current Drive
? Independent Enable Pin for Each Channel
? TTL and CMOS Compatible Logic Threshold
? Logic Levels Independent of Supply Voltage
? Hysteretic Input Logic for High Noise Immunity
? Outputs are Logic Low when Inputs are Floating
? Negative Voltage Handling Capability:
-8V DC at Inputs
-2V, 200ns Pulse for Outputs (OUTx)
? Glitch-Free Operation at Power-Up and Power-
Down: Outputs Pulled Low during Supply UVLO
? Fast Propagation Delays: 18ns (TYP)
? Fast Rise Time: 8ns (TYP)
? Fast Fall Time: 8ns (TYP)
? Delay Matching between Two Channels: 1ns (TYP)
? Channels can be Paralleled for Higher Drive Current
? -40℃ to +140℃ Operating Temperature Range
? Packaging:
SGM48523/4A/5 Available in Green SOIC-8,
MSOP-8 (Exposed Pad) and TDFN-3×3-8L Packages
SGM48526 Available in a Green TDFN-3×3-8L Package

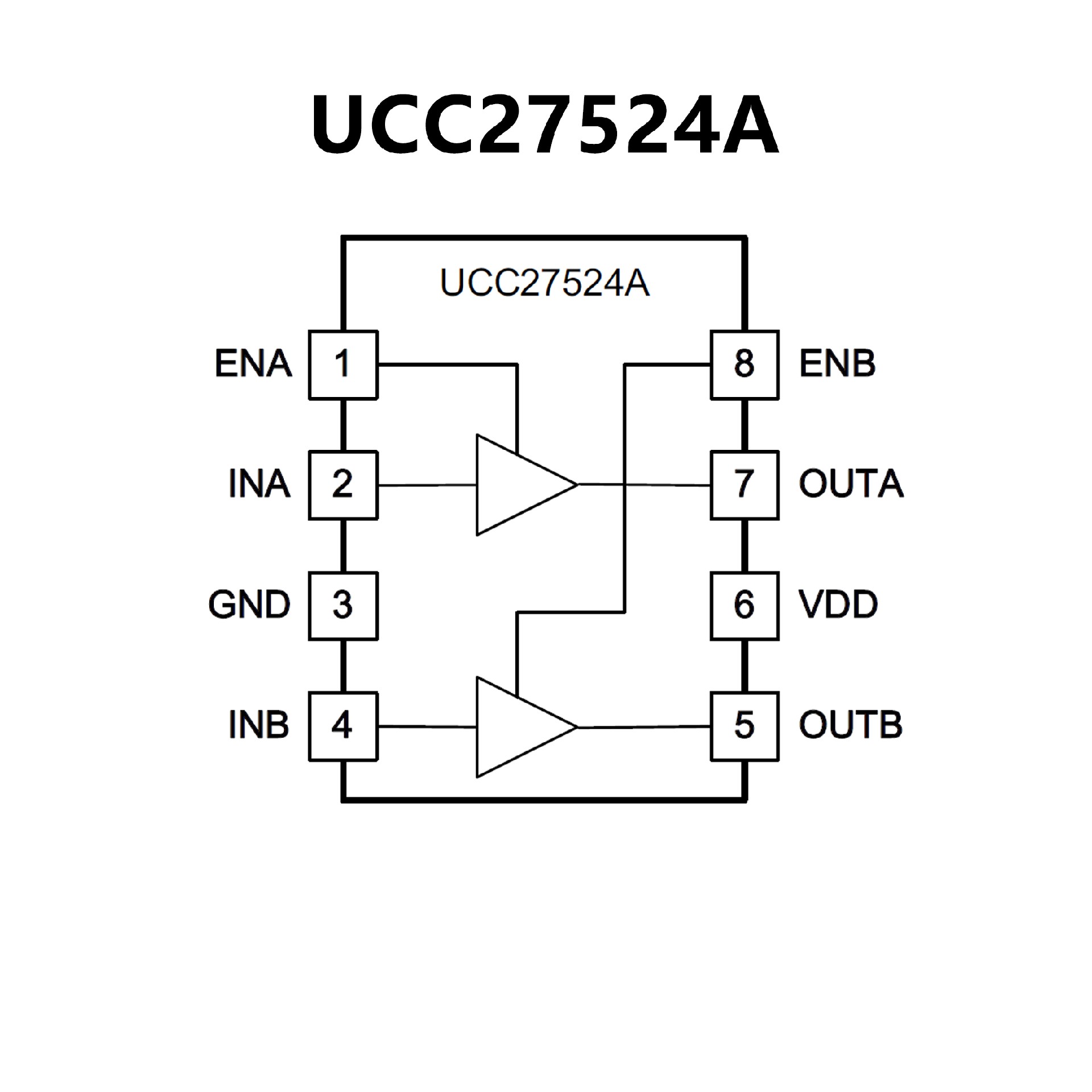

? Industry-Standard Pin Out
? Two Independent Gate-Drive Channels
? 5-A Peak Source and Sink-Drive Current
? Independent-Enable Function for Each Output
? TTL and CMOS Compatible Logic Threshold Independent
of Supply Voltage
? Hysteretic-Logic Thresholds for High Noise Immunity
? Ability to Handle Negative Voltages (-5 V) at Inputs
? Inputs and Enable Pin-Voltage Levels Not Restricted by VDD
Pin Bias Supply Voltage
? 4.5 to 18-V Single-Supply Range
? Outputs Held Low During VDD-UVLO, (ensures glitch-free
operation at power-up and powerdown)
? Fast Propagation Delays (13-ns typical)
? Fast Rise and Fall Times (7-ns and 6-ns typical)
? 1-ns Typical Delay Matching Between 2-Channels
