SGM48524.pdf? Two Independent Gate Drive Channels
? 5A Source and 5A Sink Peak Currents
? Wide Supply Voltage Range: 4.5V to 18V
? TTL and CMOS Compatible Logic Threshold
? Logic Levels Independent of Supply Voltage
? Hysteretic Input Logic for High Noise Immunity
? Outputs Held Low When Inputs are Floating
? Fast Propagation Delays: 18ns (TYP)
? Fast Rise Time: 7ns (TYP)
? Fast Fall Time: 7ns (TYP)
? Ringing Suppression
? Negative Voltage Capability on INx Pins:
-10V when (VDD - VINx) ≤ 20V
? Negative Voltage Capability on ENx Pins:
-10V when (VDD - VENx) ≤ 20V
? Negative Voltage Capability on OUTx Pin:
-2V (Pulse < 200ns)
? Comprehensive Protection Features
Thermal Shutdown Protection
Under-Voltage Lockout
Short-Circuit Protection
? -40℃ to +125℃ Operating Temperature Range

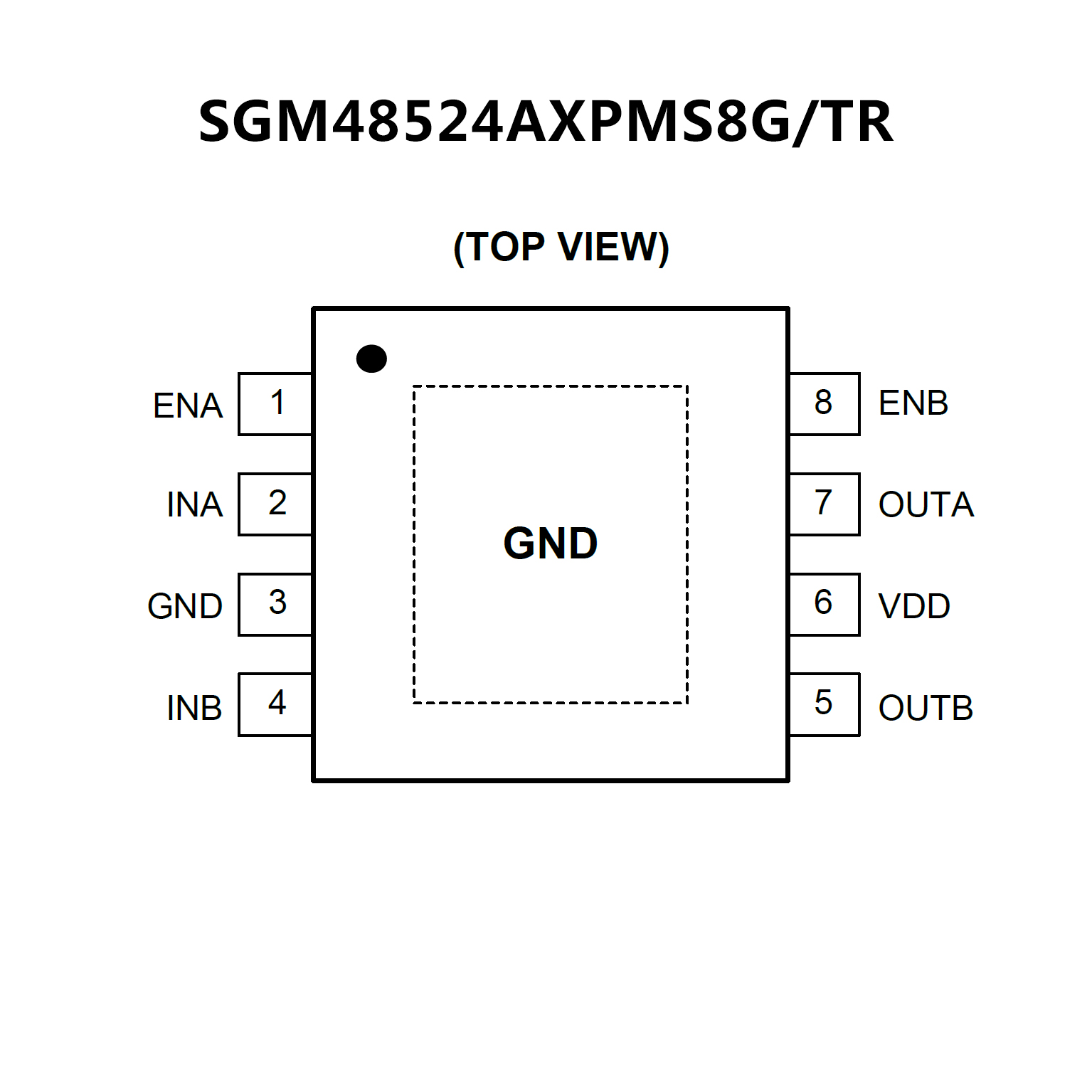

? Available in Green SOIC-8, MSOP-8 (Exposed
Pad) and TDFN-3×3-8L Packages
? Highly efficient SMPS enabled by 5 ns fast slew rates and
17 ns propagation delay precision for fast MOSFET and
GaN switching
? 1 ns channel-to-channel propagation delay accuracy
enables safe use of two channels in parallel
? Two independent 5 A channels enable numerous
deployment options

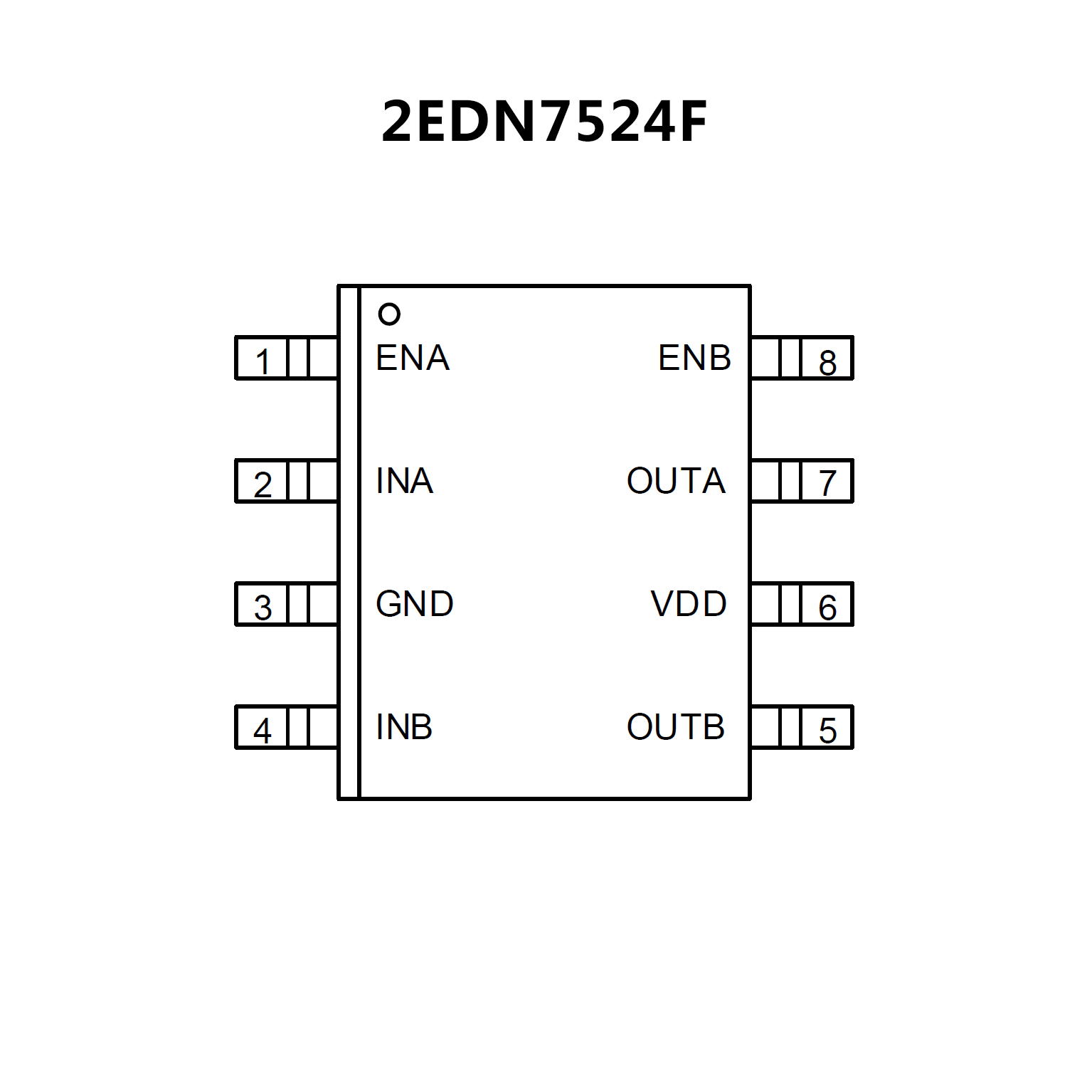

? Industry standard packages and pinout ease
system-design upgrades
