SGM48526.pdf

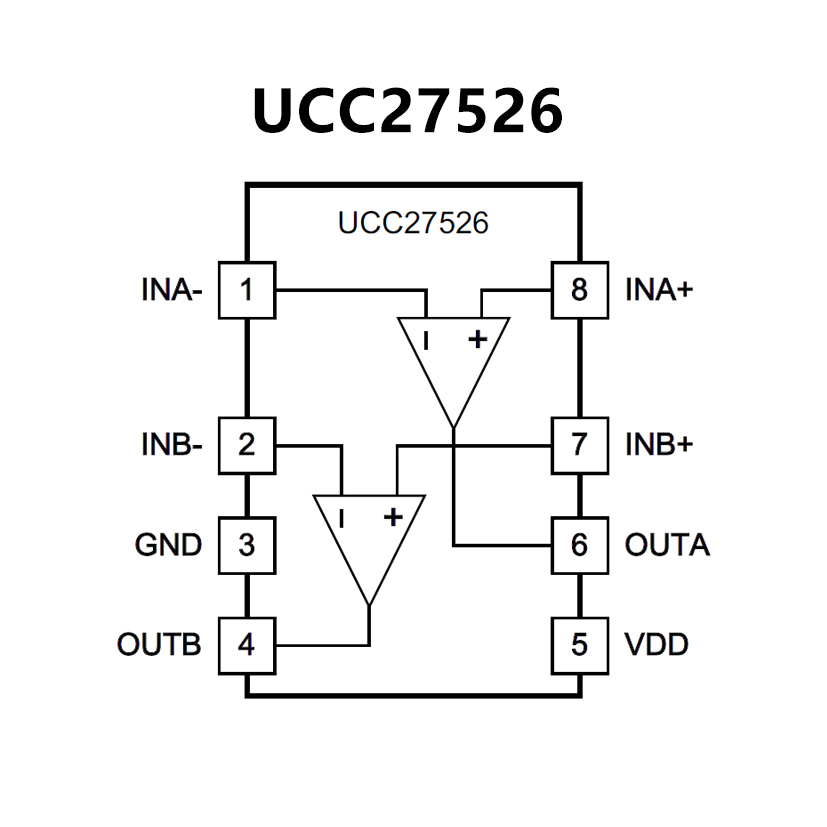

? Industry-Standard Pinout
? Two Independent Gate-Drive Channels
? 5-A Peak Source and Sink-Drive Current
? Independent-Enable Function for Each Output
TTL and CMOS Compatible Logic Threshold
Independent of Supply Voltage
? Hysteretic-Logic Thresholds for High Noise Immunity
? Inputs and Enable Pin-Voltage Levels
Not Restricted by VDD Pin Bias Supply Voltage
? 4.5-V to 18-V Single-Supply Range
? Outputs Held Low During VDD-UVLO,
(Ensures Glitch-Free Operation at
Power up and Power Down)
? Fast Propagation Delays (13-ns Typical)
? Fast Rise and Fall Times (7-ns and 6-ns Typical)
? 1-ns Typical Delay Matching Between Two Channels
? Two Outputs are in Parallel for Higher Drive Current
? Outputs Held Low When Inputs Floating

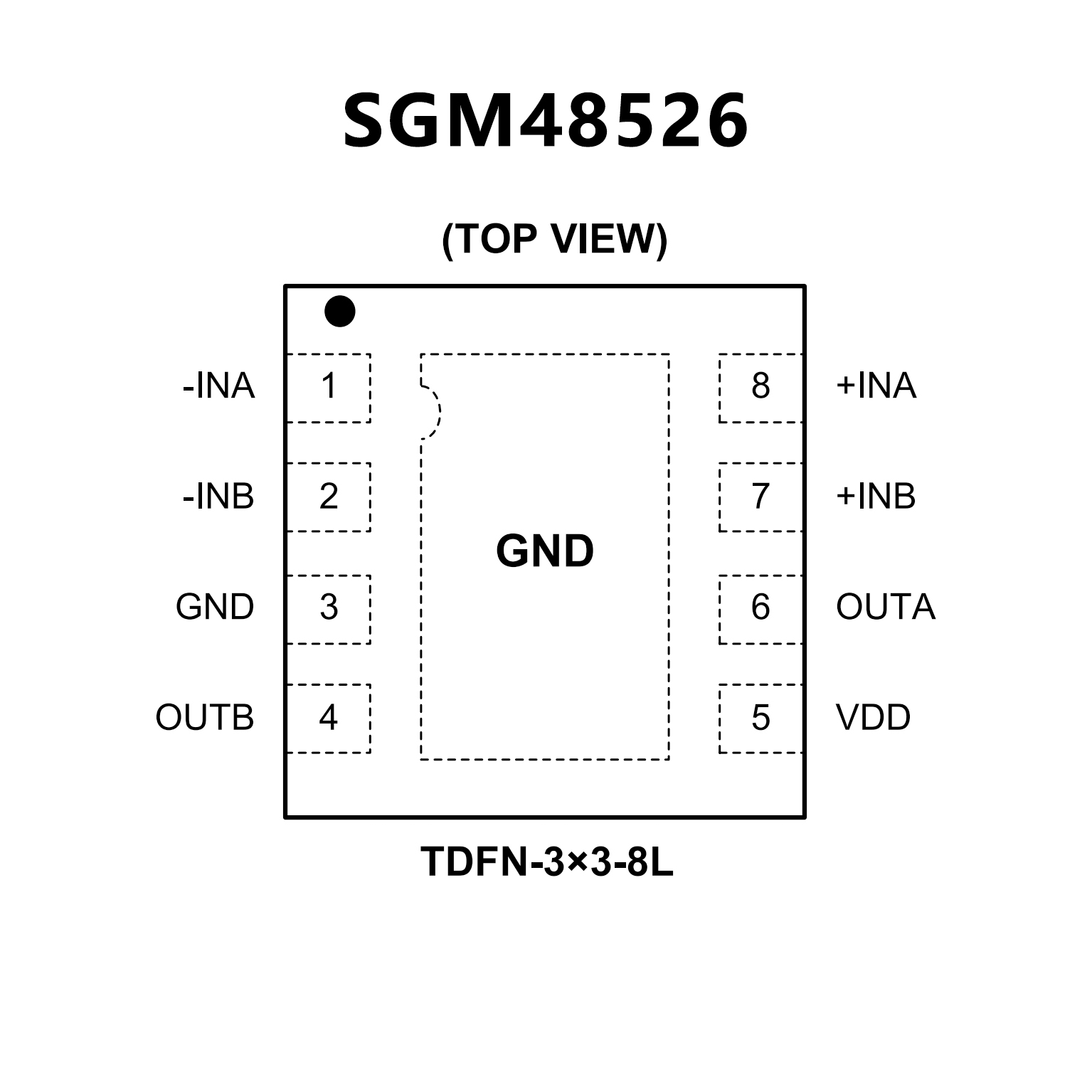

? PDIP (8), SOIC (8), MSOP (8) PowerPAD? and
3-mm × 3-mm WSON-8 Package Options
? Operating Temperature Range of –40°C to 140°C
