Single-Channel Low-side Gate Driver IC with Over-Current Protection
SGM48535.pdf優勢替代
FEATURES
? Over-current detection with positive voltage input
? 0.5 V over-current threshold with accurate ±5% tolerance
? Single pin for fault output and enable
? Programmable fault clear time
? Under voltage lockout
? CMOS Schmitt-triggered inputs
? 3.3 V, 5 V and 15 V input logic compatible
? Output in phase with input
? Separate logic and power ground
? 2kV ESD HBM
? RoHS compliant

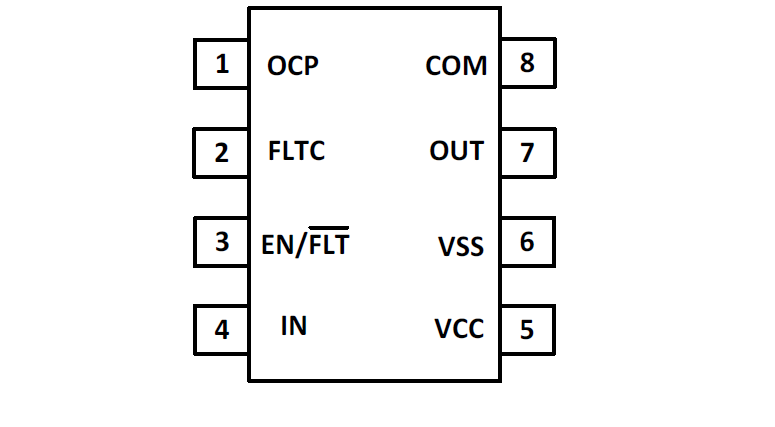

PIN CONFIGUTION
