2.5A and 5A, 35VMAX VDD FET and IGBT Single-Gate Driver, Replace UCC27538
SGM48538.pdf優(yōu)勢替代
FEATURES
? Low Cost Gate Driver (offering optimal solution for driving
FET and IGBTs)
? Superior Replacement to Discrete Transistor Pair Drive
(providing easy interface with controller)
? TTL and CMOS Compatible Input Logic Threshold,
(independent of supply voltage)
? Split Output Options Allow for Tuning of Turn- On and
Turn-Off Currents
? Inverting and Non-Inverting Input Configurations
? Enable with Fixed TTL Compatible Threshold
? High 2.5-A Source and 2.5-A or 5-A Sink Peak Drive
Currents at 18-V VDD

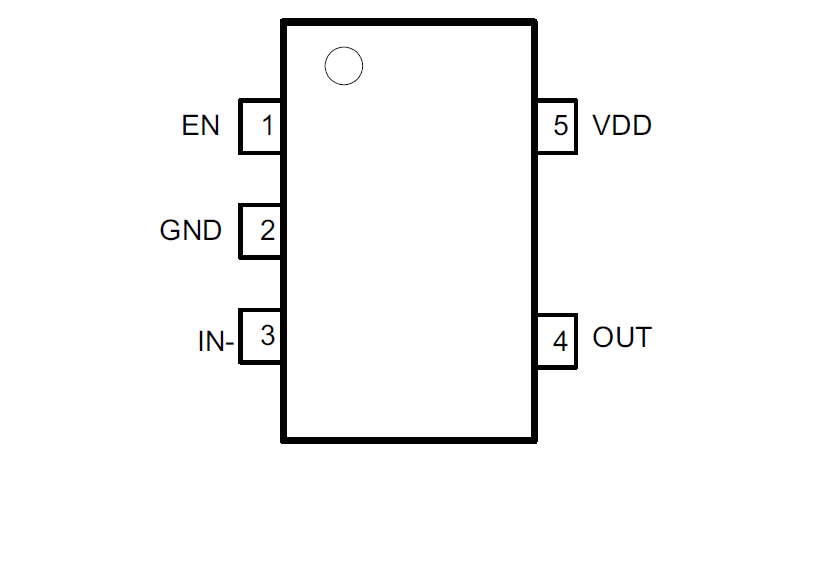

PIN CONFIGUTION
