SGM48751YTS16G.pdf? Guaranteed On-Resistance
48Ω (TYP) with 5V Supply
? Guaranteed On-Resistance Match Between
Channels
? Low Off-Leakage Current 1nA (TYP) at +25℃
? Low On-Leakage Current 1nA (TYP) at +25℃
? Optimized Rise Time and Fall Time of A, B, C
Control Pins to Reduce Clock Feedthrough Effect
? 2.5V to 5.5V Single Supply Operation
? 1.8V Logic Compatible
? High Off-Isolation: -83dB (RL = 50Ω, f = 1MHz)
? -40℃ to +85℃ Operating Temperature Range
? Available in Green SOIC-16, SSOP-16, TSSOP-16
and TQFN-3×3-16L Packages
? Injection-Current Cross Coupling <1mV/mA
(see Figure 1)
? Low Crosstalk Between Switches

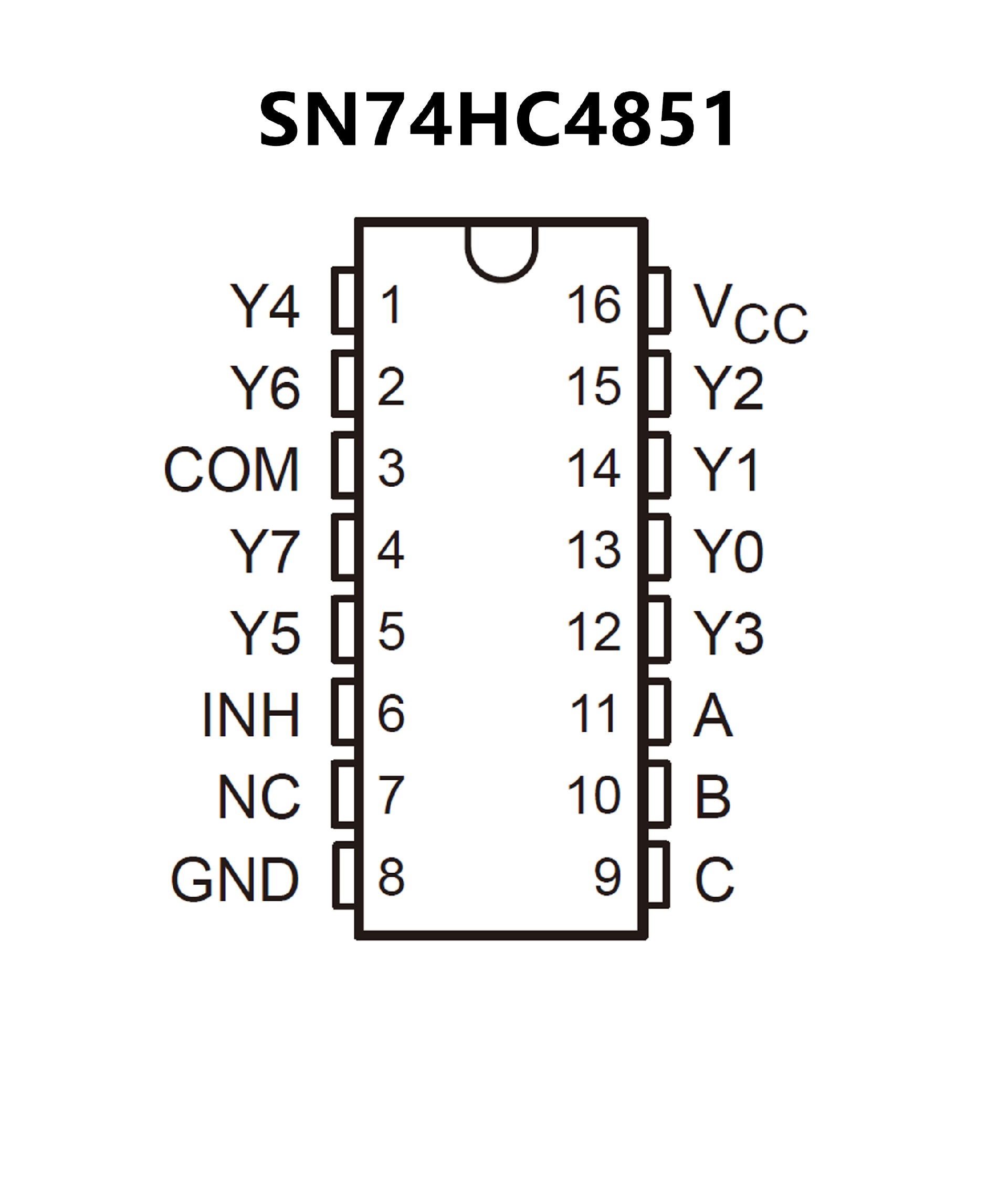

? Pin Compatible With SN74HC4051,
SN74LV4051A, and CD4051B
? 2-V to 6-V VCC Operation
? Latch-Up Performance Exceeds 100 mA Per
JESD 78, Class II
? ESD Protection Exceeds JESD 22
2000-V Human-Body Model (A114-A)
200-V Machine Model (A115-A)
1000-V Charged-Device Model (C101)
