SGM48760XN5G.pdf? Supply Voltage Range: 1.65V to 5.5V
? Low On-Resistance: 4.5Ω (TYP) at VCC = 4.5V
? With No VCC Connected in the System, the
Control Pin can Accept Voltages up to 5.5V
? Propagation Delay Time, tPD:
0.65ns (TYP) at VCC = 3.3V
? Rail-to-Rail Input and Output Operation
? -40℃ to +125℃ Operating Temperature Range

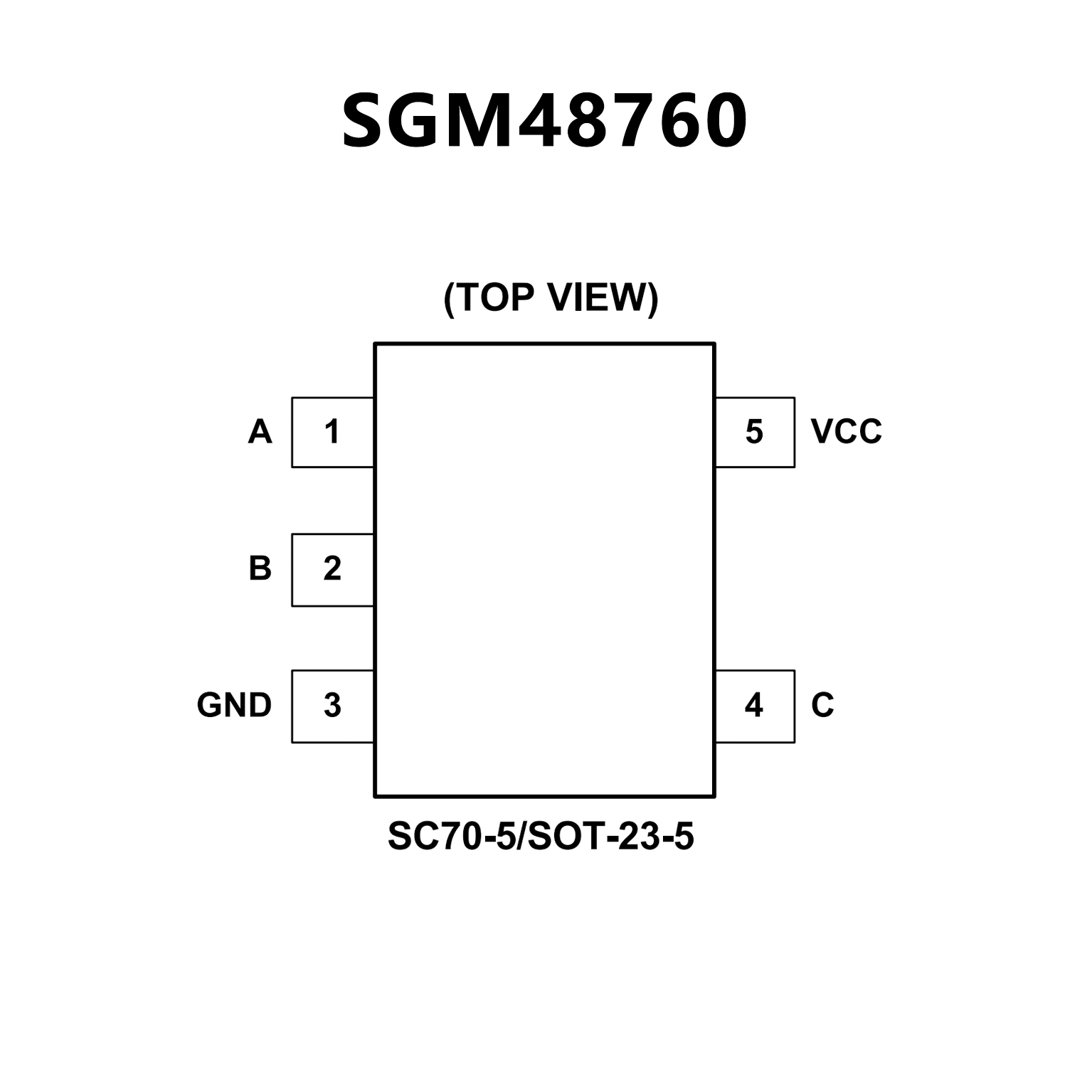

? Available in Green SC70-5 and SOT-23-5 Packages

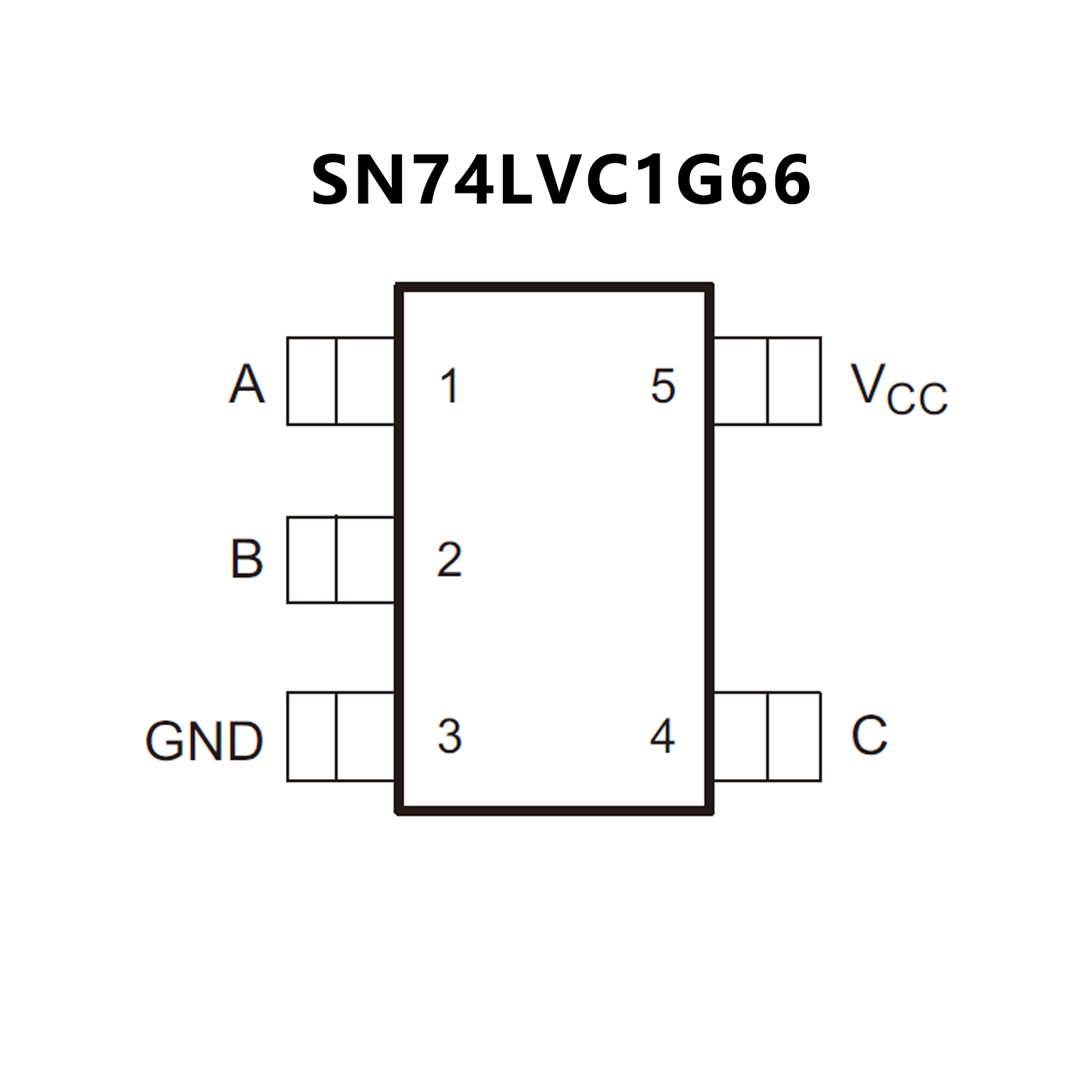

? Available in the Texas
Instruments NanoFree?Package
? 1.65-V to 5.5-V VCC Operation
? Inputs Accept Voltages to 5.5 V
? Max tpd of 0.8 ns at 3.3 V
? High On-Off Output Voltage Ratio
? High Degree of Linearity
? High Speed, Typically 0.5 ns (VCC = 3 V,
CL = 50 pF)
? Low ON-State Resistance, Typically ?5.5 ? (VCC= 4.5 V)
Latch-Up Performance Exceeds 100 mA Per
JESD 78, Class II
? ESD Protection Exceeds JESD 22
2000-V Human-Body Model (A114-A)
200-V Machine Model (A115-A)
1000-V Charged-Device Model (C101)
