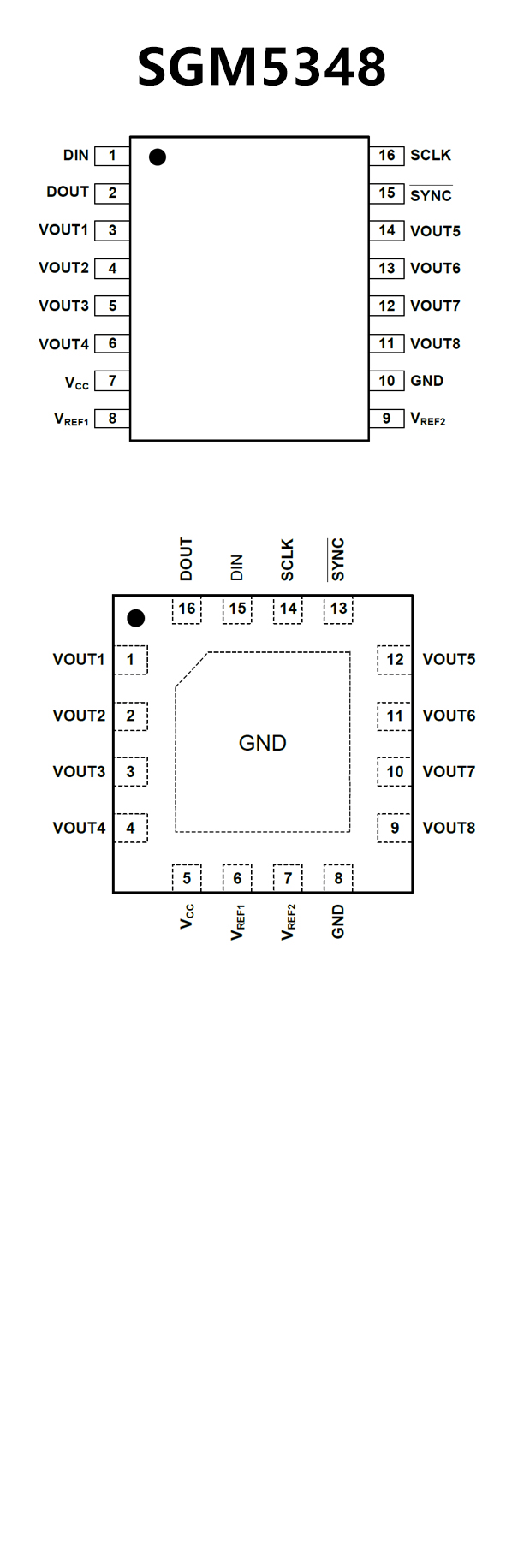

SGM5348.pdf? Low Power Consumption (0.5mW/CH)
? Integrating 8 Channels of 12-Bit DAC
? Built-in Rail-to-Rail Output Amplifier:
? Sink/Source Current with Short Current Control
? Daisy-Chain Capability
? Simultaneous 8 Channels Output Updating
? Individual Channel Power-Down Capability
? 0.6μA (TYP) ICC for Power-Down Mode
? 0.1% (TYP) Gain Error for All Channels
? Interface Sees No Quiescent Current when VBUS < VCC
? Power-On Reset: Output Reset to GND
? Serial Data Input: Up to 40MHz Operation
? TTL Compatible Input Logic Level
? Wide Power Supply Range: 2.8V to 5.5V
? Dual Reference Voltages with Range of 0.5V to VCC
? Low power octal DACs

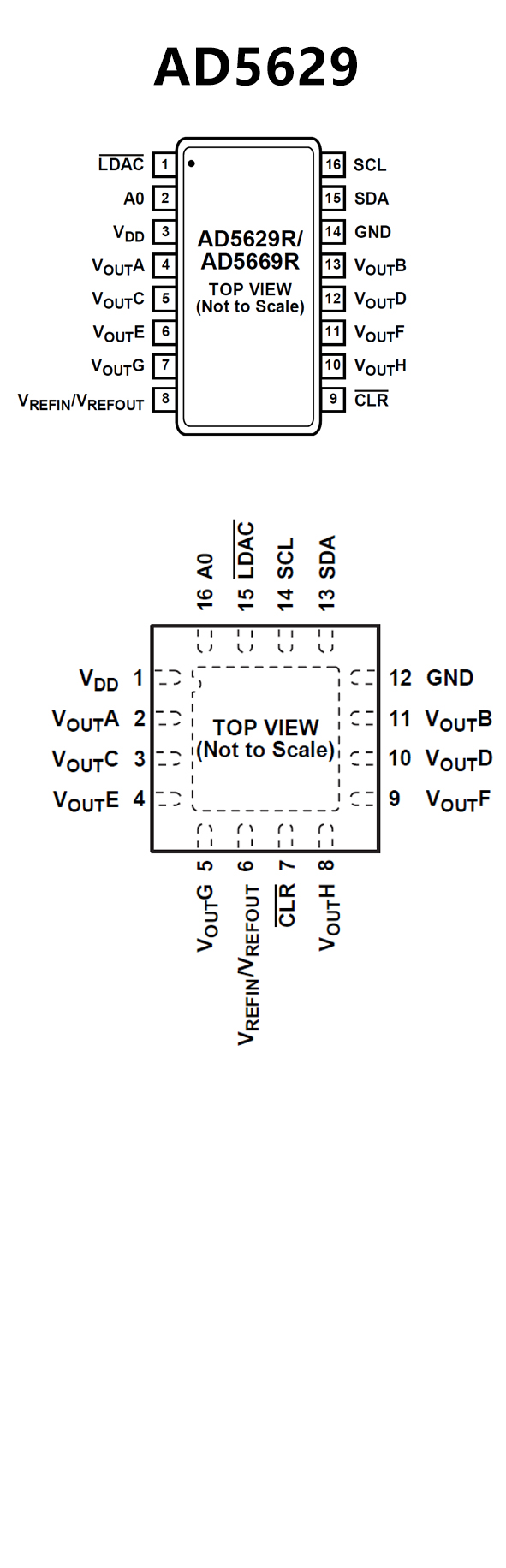

AD5629R: 12 bits
AD5669R: 16 bits
? 2.6 mm × 2.6 mm 16-ball WLCSP
? 4 mm × 4 mm 16-lead LFCSP and 16-lead TSSOP
? On-chip 1.25V/2.5V, 5 ppm/°C reference
? Power down to 400nA at 5 V, 200nA at 3V
? 2.7 V to 5.5 V power supply
? Guaranteed monotonic by design
? Power-on reset to zero scale or midscale
? 3 power-down functions
? I2C-compatible serial interface supports standard (100 kHz)
and fast (400 kHz) modes
