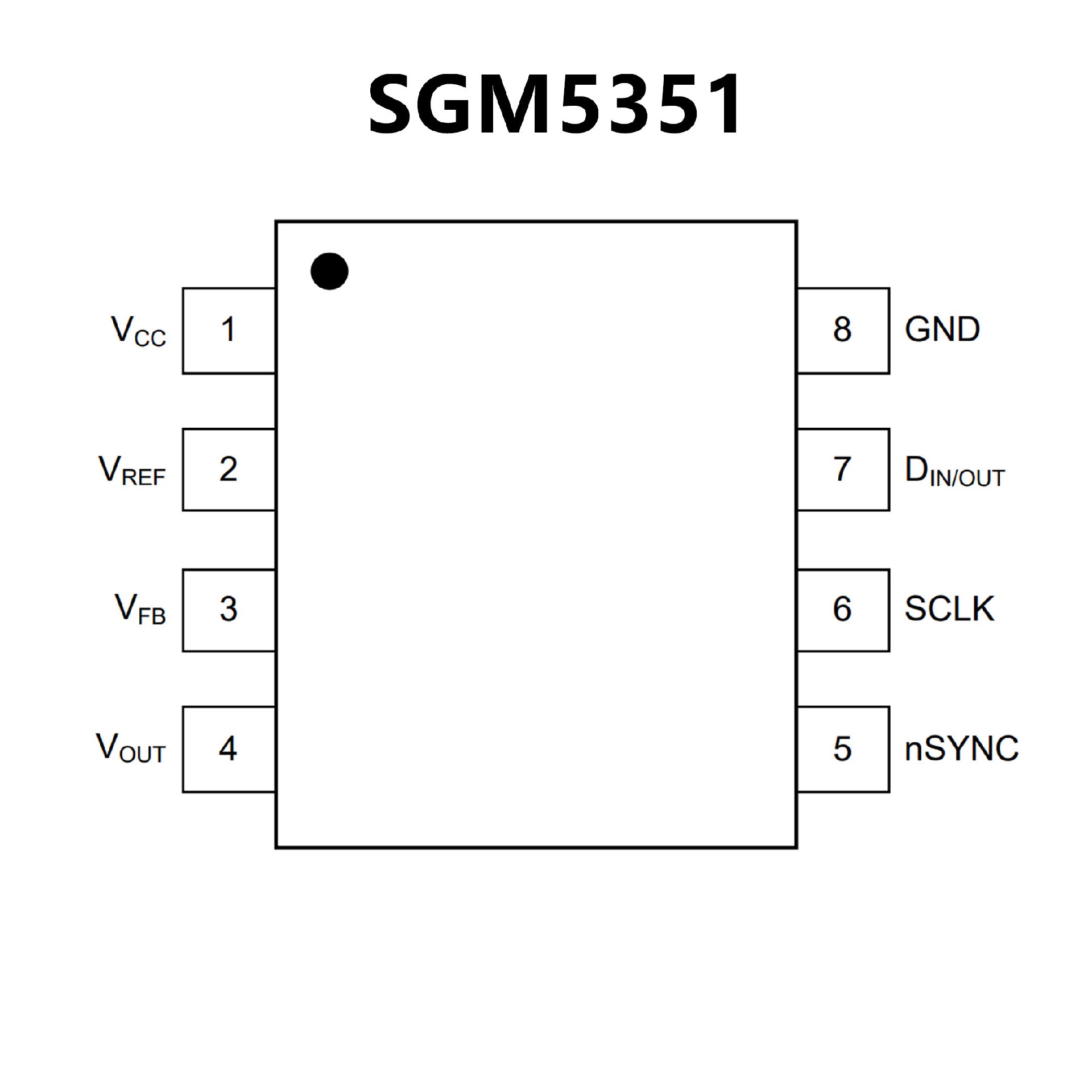

SGM5351.pdf? Power Supply Range: 2.7V to 5.5V
? 16-Bit DAC, Monotonicity Guaranteed by Design
? 6LSB (TYP) Relative Accuracy
? Low Power Operation: 100μA at 2.7V
? Power-On Reset to Zero-Scale
? 10μs (TYP) Settling Time
? 3-Wire Serial Interface with
Schmitt Trigger Logic Inputs
? Rail-to-Rail Buffered
Voltage-Output Operation
? Binary Code Input
? Power-Down Function
? nSYNC Interrupt Facility
? Available in a Green MSOP-8 Package

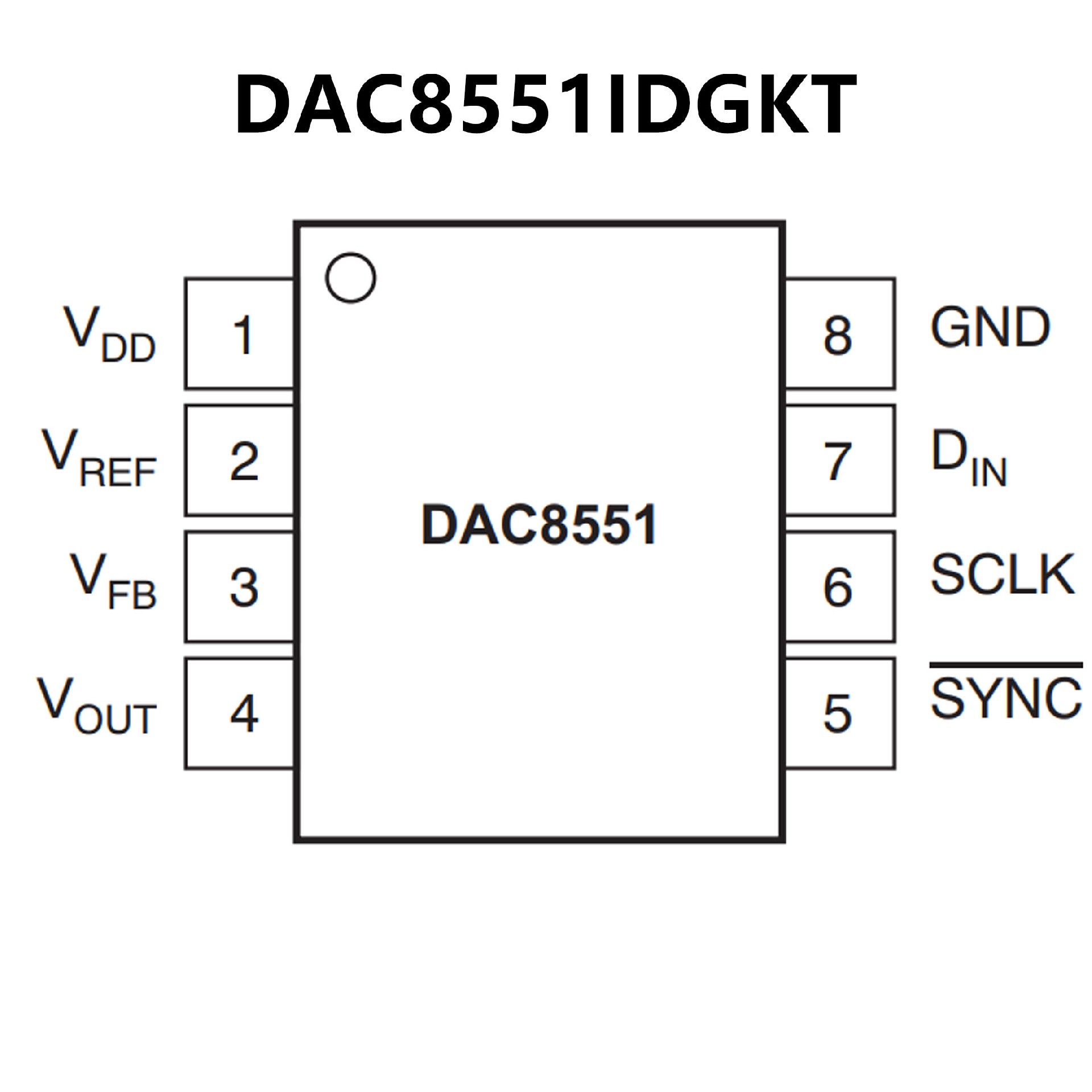

? Relative Accuracy: 8LSB
? Glitch Energy: 0.1 nV-s
? MicroPower Operation: 140 μA at 2.7 V
? Power-On Reset to Zero
? Power Supply: 2.7 V to 5.5 V
? 16-Bit Monotonic
? Settling Time: 10 μs to ±0.003% FSR
? Low-Power Serial Interface with
Schmitt-Triggered Inputs
? On-Chip Output Buffer Amplifier
with Rail-to-Rail Operation
? Power-Down Capability
? Binary Input
? SYNC Interrupt Facility
? Drop-In Compatible With DAC85x1 and
DAC8550 (2's Complement Input)
