16-Bit, 4 Channels, Voltage-Output Digital-to-Analog Converter, SGM5352 Replace DAC8554.
SGM5352-16
SGM5352-16.pdf
SGM5352-16.pdfFEATURES
? Power Supply Range: 2.7V to 5.5V
? 16-Bit DAC, Monotonicity Guaranteed by Design
? 6LSB (TYP) Relative Accuracy
? Low Power Operation: 0.4mA at 2.7V
? Power-On Reset to Zero-Scale
? 10μs (TYP) Settling Time
? -100dB (TYP) AC Crosstalk
? Simultaneous or Sequential Output Update and
Power-Down
? 1.8V to 5.5V Logic Interface
? Available in Green WLCSP-1.64×1.62-16B and
TSSOP-16 Packages

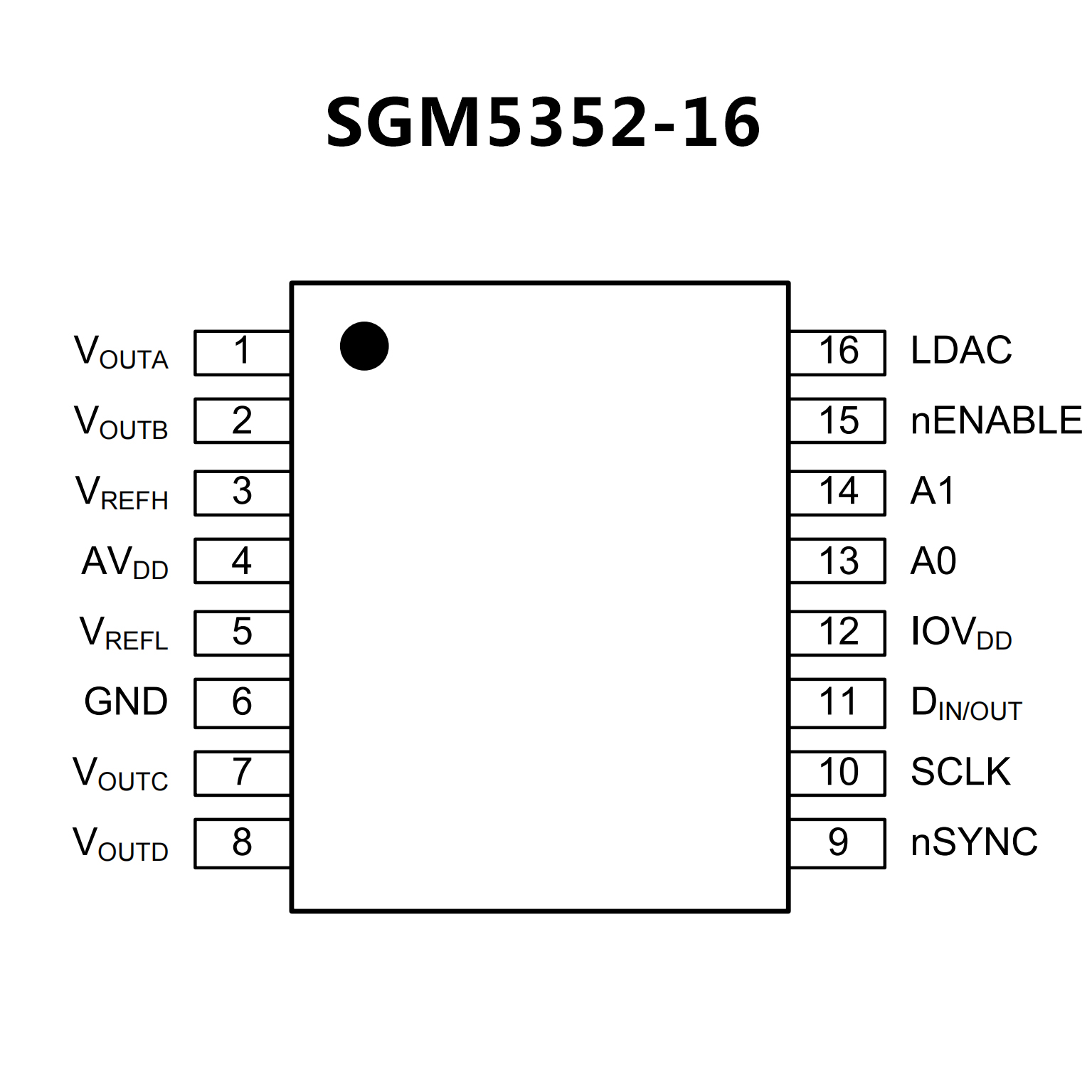

PIN CONFIGUTION
優勢替代
FEATURES
? Relative Accuracy: 4LSB
? Glitch Energy: 0.15nV-s
? MicroPower Operation:
150μA per channel at 2.7V
? Power-On Reset to Zero-Scale
? Power Supply: +2.7V to +5.5V
? 16-Bit Monotonic Over Temperature
? Settling Time: 10μs to ±0.003% FSR
? Ultra-Low AC Crosstalk: –100dB Typ
? Low Power SPI? Compatible Serial Interface
with Schmitt-Triggered Inputs: Up to 50MHz
? On-Chip Output Buffer Amplifier with
Rail-to-Rail Operation
? Double Buffered Input Architecture
? Simultaneous or Sequential Output Update
and Power-Down
? 16-Channel Broadcast Capability
? 1.8V to 5.5V Logic Compatibility
? Available in a TSSOP-16 Package

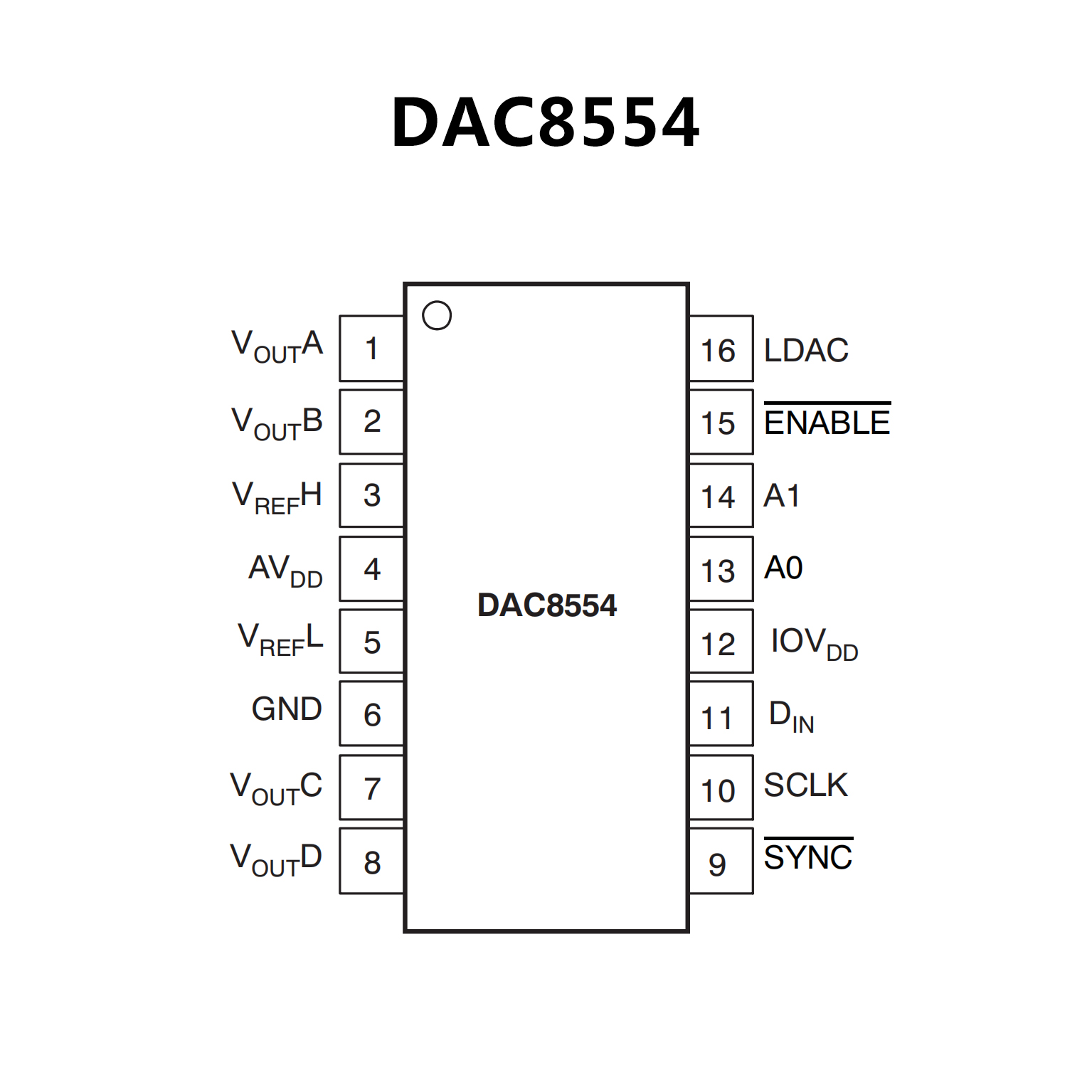

PIN CONFIGUTION
