Ultra-Small, Low-Power, 16-Bit Analog-to-Digital Converter with Internal, SGM58031 P2P ADS1113.
SGM58031
SGM58031.pdf
SGM58031.pdfFEATURES
? Wide Power Supply Range: 3V to 5.5V
- I2C Bus Voltage: 3V to 5.5V
? Low Current Consumption:
Continuous Mode: 255μA (TYP)
Power-Down Mode: 0.8μA (TYP)
? Programmable Date Rate: 6.25SPS to 960SPS
? Internal Low-Drift Voltage Reference
? Internal Oscillator
? Internal PGA
? I2C Interface: Pin-Selectable Addresses
? Four Single-Ended or Two Differential Inputs
? Programmable Comparator
? Available in Green MSOP-10 and TDFN-3×3-10L
Packages

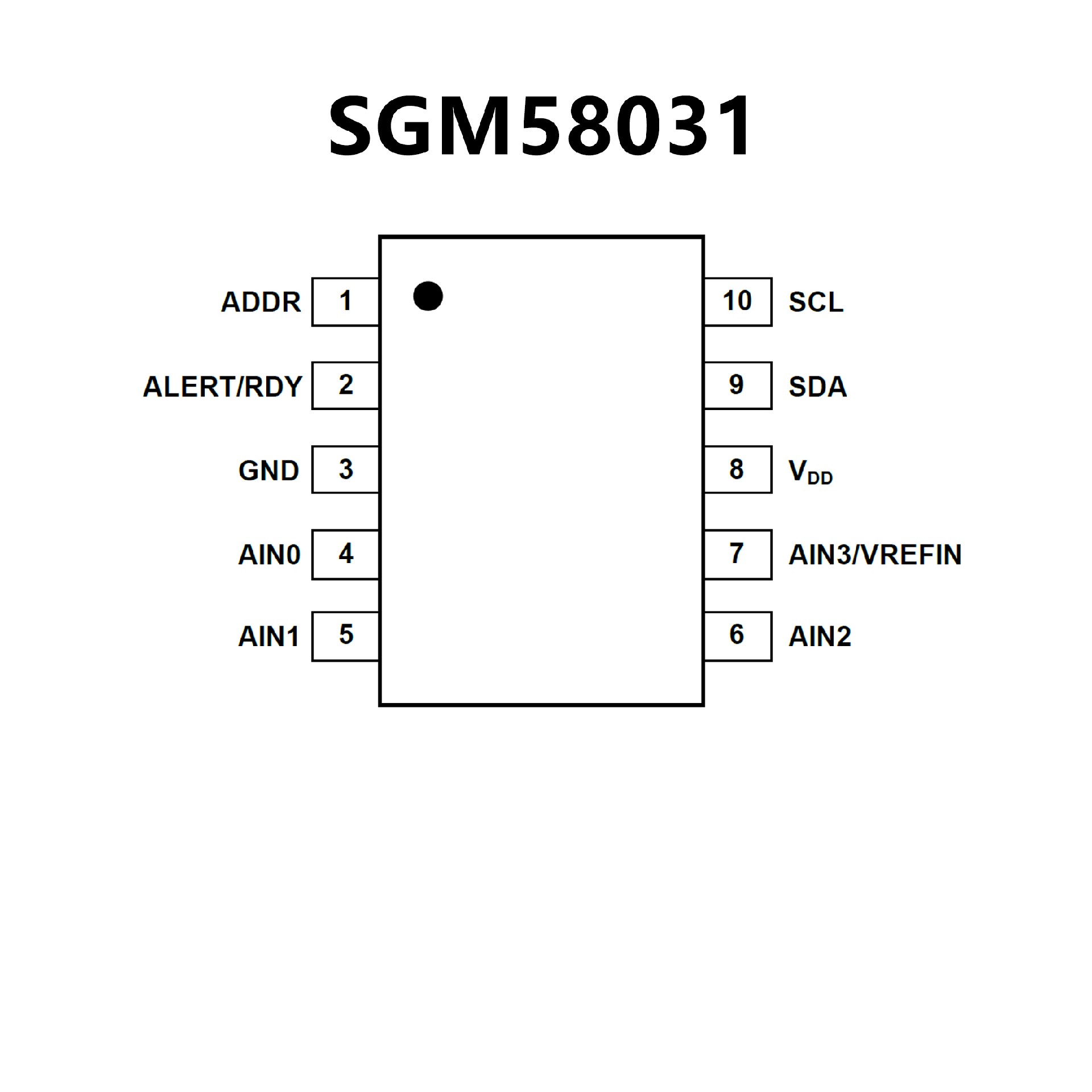

PIN CONFIGUTION
優勢替代
FEATURES
? ULTRA-SMALL QFN PACKAGE:
? 2mm × 1,5mm × 0,4mm
? WIDE SUPPLY RANGE: 2.0V to 5.5V
? LOW CURRENT CONSUMPTION:
Continuous Mode: Only 150μA
Single-Shot Mode: Auto Shut-Down
? PROGRAMMABLE DATA RATE: 8SPS to 860SPS
? INTERNAL LOW-DRIFT VOLTAGE REFERENCE
? INTERNAL OSCILLATOR
? INTERNAL PGA
? I2C ? INTERFACE: Pin-Selectable Addresses
? OPERATING TEMPERATURE: –40°C to +140°C

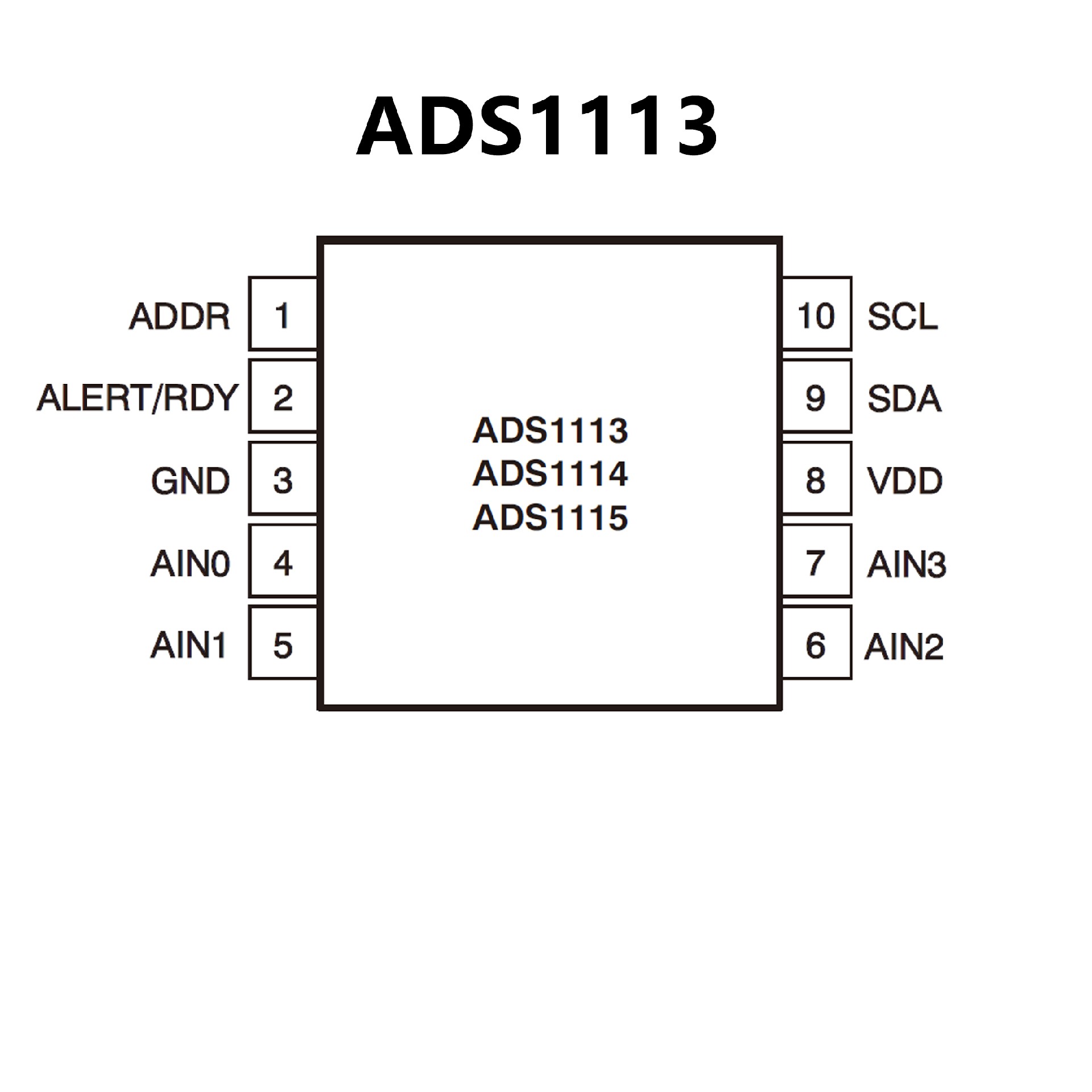

PIN CONFIGUTION
