Ultra Low Noise,24 Bit Analog to Digital Converters, SGM58600 Replace ADS1255.
FEATURES

Supply Voltage Ranges:

  Analog Supply: 5V

  Digital Supply: 2.7V to 5V

Noise-Free Resolution: Up to 22 Bits

Data Output Rate: Up to 60kSPS

Integral Nonlinearity (INL):

  0.0012%FSR (TYP) at PGA = 1

24-Bit No Missing Codes

Fast Channel Cycling

  18.3 Bits Noise-Free (21.2 Effective Bits) at 1.4kHz

Flexible Input Multiplexer

  2 Single-Ended Inputs or 1 Differential Inputs (SGM58600)

  8 Single-Ended Inputs or 4 Differential Inputs (SGM58601)

  3 Single-Ended Inputs or 2 Differential Inputs (SGM58602)

Low Noise Programmable Gain Amplifier:

  30nV Input-Referred Noise

One-Shot Conversions with Single-Cycle Settling

Chopper-Stabilized Input Buffer

Supports Self and System Calibration for All PGA Settings

Supports SPI-Compatible Serial Interface

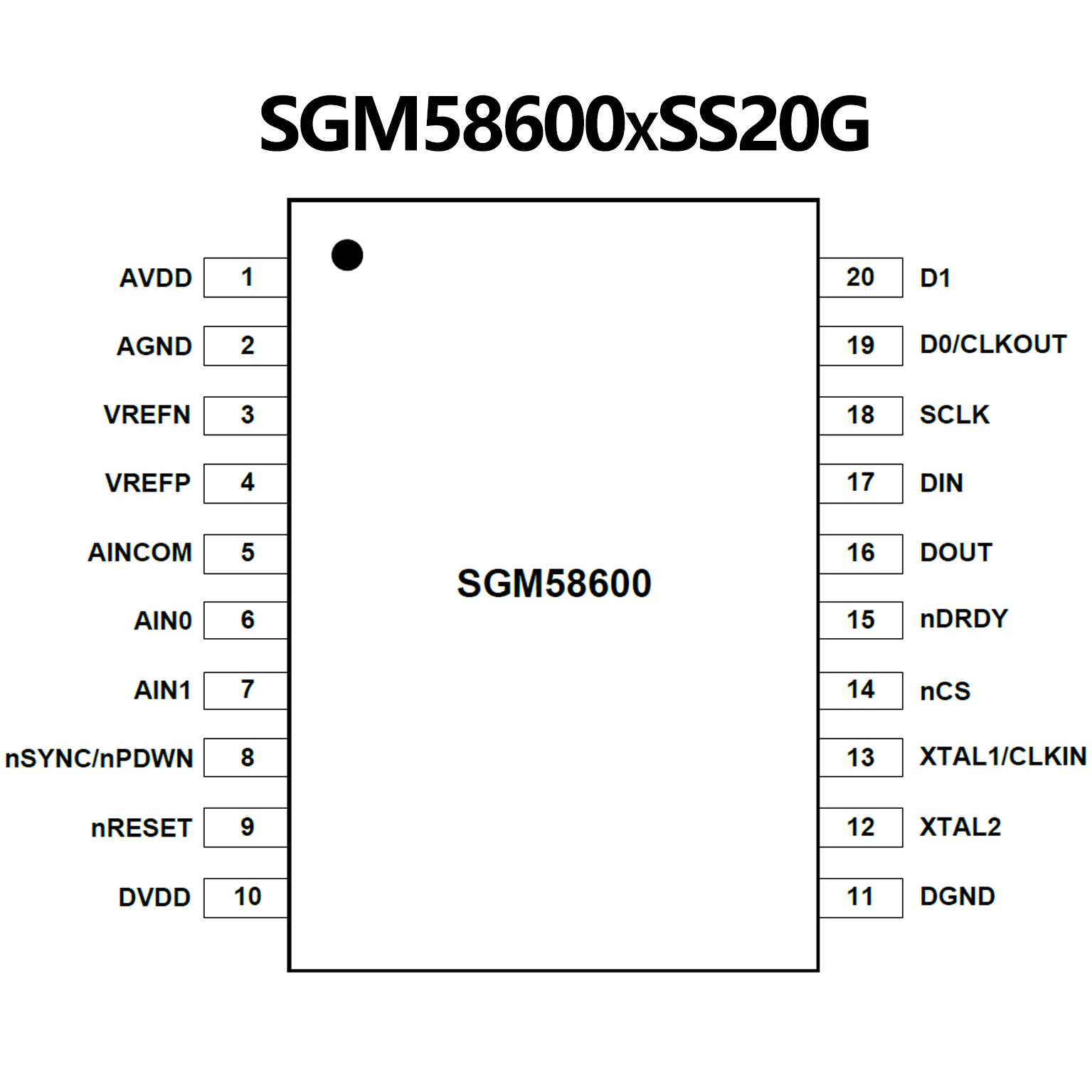

PIN CONFIGUTION
優勢替代
ADS1255 ADS1255.pdf

No.11573

FEATURES

24 Bits, No Missing Codes

  ?All Data Rates and PGA Settings

Up to 23 Bits Noise-Free Resolution

±0.0010% Nonlinearity (max)

Data Output Rates to 30kSPS

Fast Channel Cycling

  ?18.6 Bits Noise-Free (21.3 Effective Bits)

    at 1.45kHz

One-Shot Conversions with Single-Cycle

  Settling

Flexible Input Multiplexer with Sensor Detect

  ?Four Differential Inputs (ADS1256 only)

  ?Eight Single-Ended Inputs (ADS1256 only)

Chopper-Stabilized Input Buffer

Low-Noise PGA: 27nV Input-Referred Noise

Self and System Calibration for All PGA

  Settings

5V Tolerant SPI-Compatible Serial Interface

Analog Supply: 5V

Digital Supply: 1.8V to 3.6V

Power Dissipation

  ?As Low as 38mW in Normal Mode

  ?0.4mW in Standby Mode

PIN CONFIGUTION
