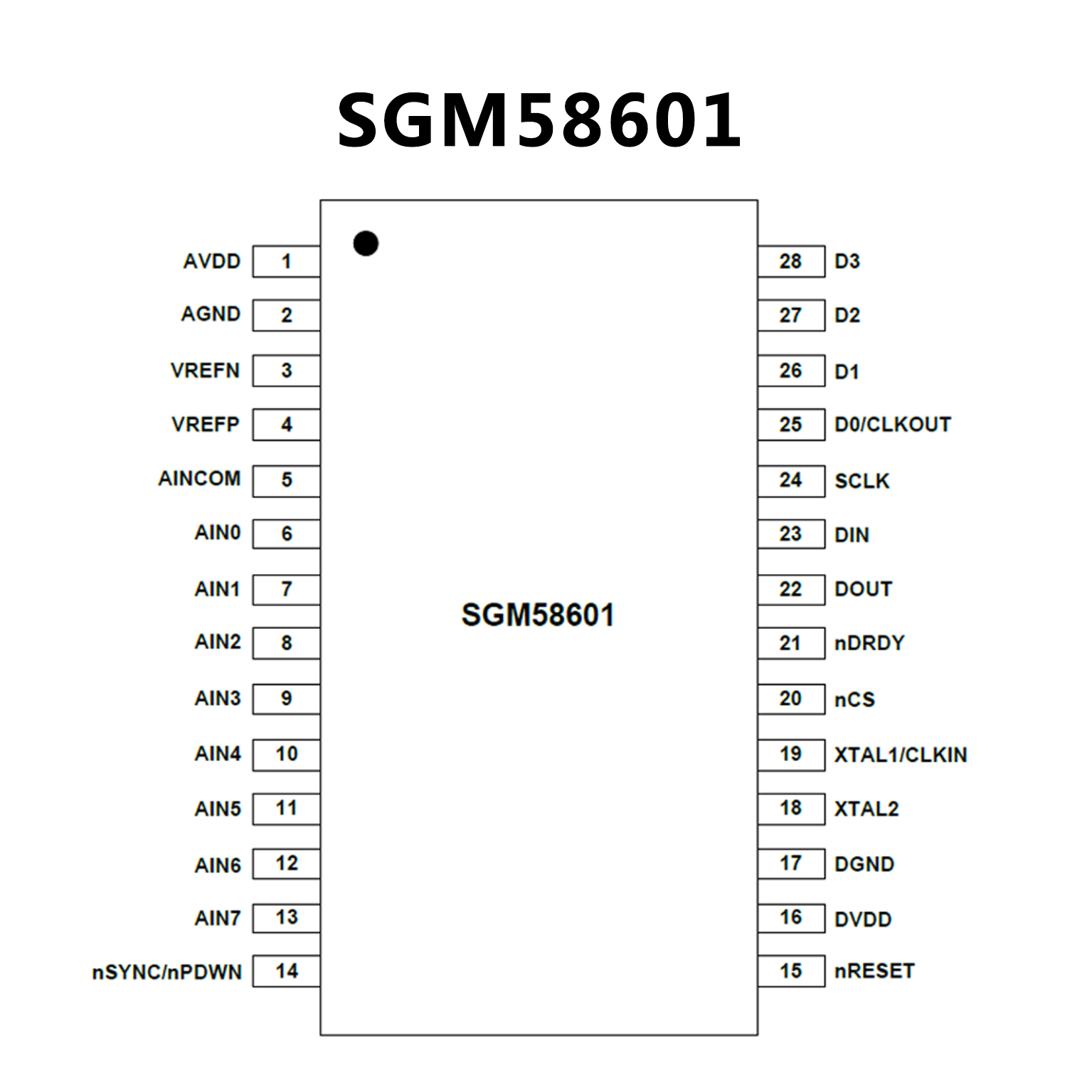

SGM58601.pdf? Supply Voltage Ranges:
Analog Supply: 5V
Digital Supply: 2.7V to 5V
? Noise-Free Resolution: Up to 22 Bits
? Data Output Rate: Up to 60kSPS
? Integral Nonlinearity (INL):
0.0012%FSR (TYP) at PGA = 1
? 24-Bit No Missing Codes
? Fast Channel Cycling
18.3 Bits Noise-Free (21.2 Effective Bits) at 1.4kHz
? Flexible Input Multiplexer
8 Single-Ended Inputs or 4 Differential Inputs
(SGM58601)
? Low Noise Programmable Gain Amplifier:
30nV Input-Referred Noise
? One-Shot Conversions with Single-Cycle Settling
? Chopper-Stabilized Input Buffer
? Supports Self and System Calibration for All PGA
Settings
? Supports SPI-Compatible Serial Interface

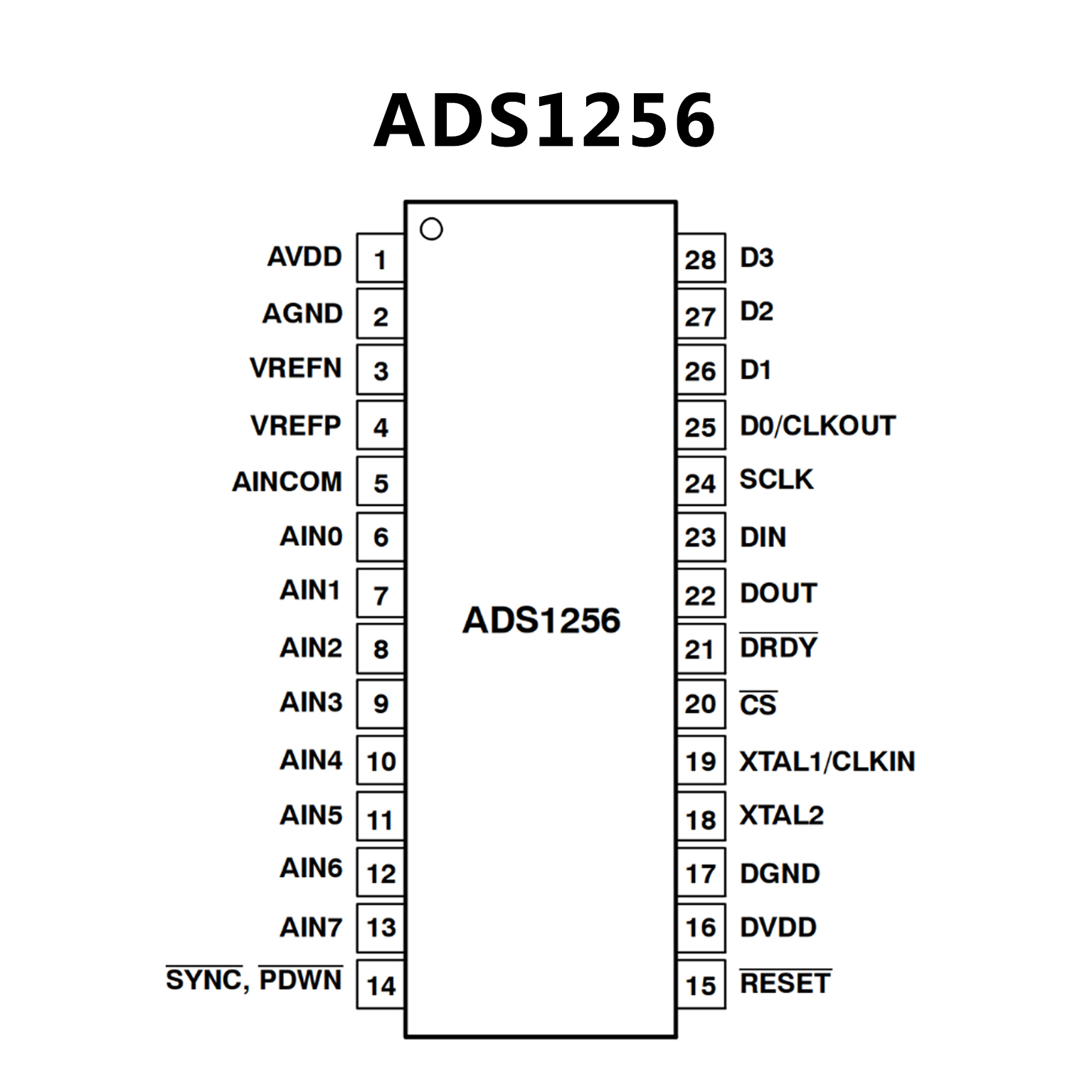

? 24 Bits, No Missing Codes
?All Data Rates and PGA Settings
? Up to 23 Bits Noise-Free Resolution
? ±0.0010% Nonlinearity (max)
? Data Output Rates to 30kSPS
? Fast Channel Cycling
?18.6 Bits Noise-Free (21.3 Effective Bits)
at 1.45kHz
? One-Shot Conversions with Single-Cycle
Settling
? Flexible Input Multiplexer with Sensor Detect
?Four Differential Inputs (ADS1256 only)
?Eight Single-Ended Inputs (ADS1256 only)
? Chopper-Stabilized Input Buffer
? Low-Noise PGA: 27nV Input-Referred Noise
? Self and System Calibration for All PGA
Settings
? 5V Tolerant SPI-Compatible Serial Interface
? Analog Supply: 5V
? Digital Supply: 1.8V to 3.6V
? Power Dissipation
?As Low as 38mW in Normal Mode
?0.4mW in Standby Mode
